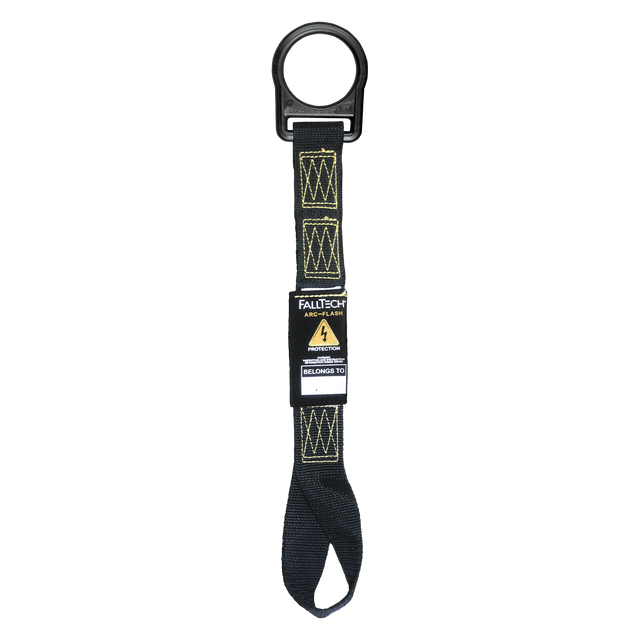

18" Arc Flash Dorsal D-ring Extender with Choke-loop and Overmolded D-ring (8366LAF)

Features

• Provides improved over-the-shoulder reach for ease of connecting lanyards and SRLs
• Constructed with Kevlar® webbing and overmold insulated D-ring for arc flash hazard protection.
• Choke-loop for harness attachment reduces electrical conductivity
• Extender use will increase the user's total fall clearance distance when using an energy absorbing lanyard
• Complies with ANSI Z359.11-2014


Material Specifications

• Webbing: Polyester; 5,000 lb min. static strength


• D-ring: Plated alloy steel; 5,000 lb min. static strength


• Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

Performance Specifications

• Static Strength: 5,000 lb min.


• ANSI User Capacity: 130 to 310 lb max.


• OSHA User Capacity: 130 to 310 lb max.

Compliant With:
