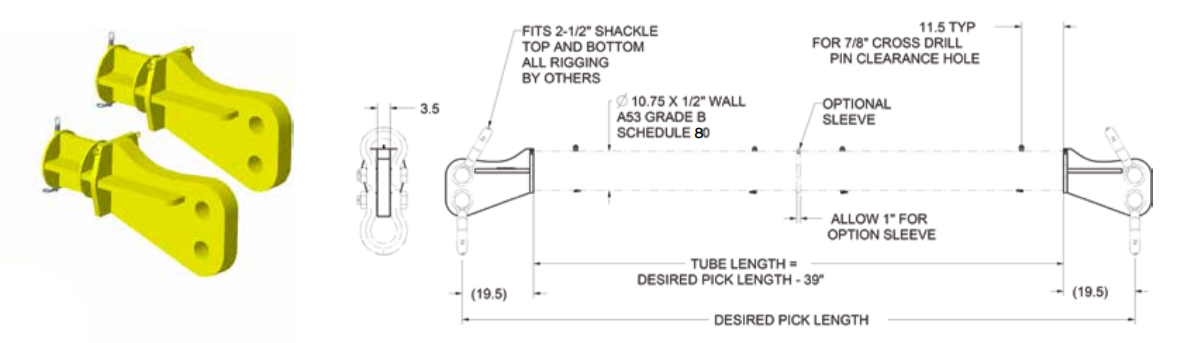

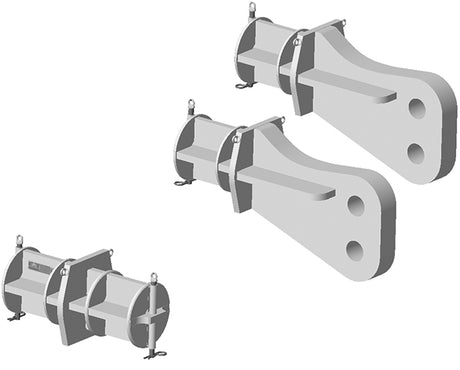

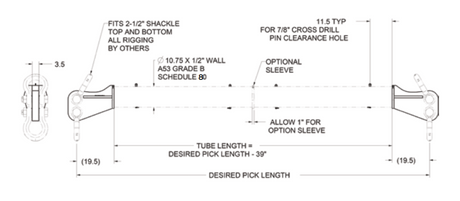

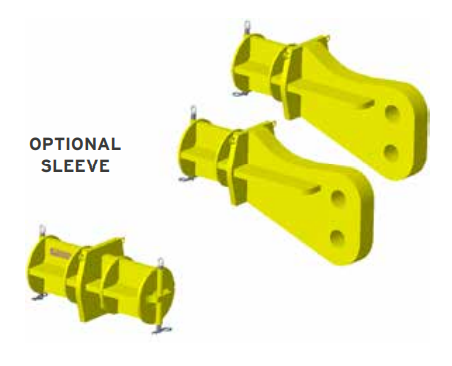

Custom Spreader Beam HD End Cap Kits

Manufactured to exceed all ASME B30.20 and OSHA regulations. when assembled to specifications using A53 Grade B Schedule 80 pipe.
Painted safety yellow for increased visibility.
ALL End Caps shipped with proof load certification paperwork.
Durable construction ideally suited to jobsite or warehouse use.
Made in U.S.A.
Top rigging available - call for details.
ALL lifting equipment individually proof loaded per OSHA
requirements.
Minimum horizontal top rigging angle of 45° - M&W recommends a minimum angle of 60°.

HD End Caps Outside Spread in Feet/WLL in Pounds

MPN	Weight (lbs)	6'	8'	10'	15'	20'	25'	30'	35'	40'	Price	Quantity
Spreader Beam HD End Cap - Pair (22525)	22525	425	160,000	160,000	160,000	160,000	160,000	160,000	160,000	150,000	100,000	$13,462.66

MPN: 22525

Weight (lbs): 425

6':

8':

10':

15':

20':

25':

30':

35':

40':

Price:$13,462.66

MPN	Product Title	Weight (lbs)	Price	Quantity
Spreader Beam Sleeve Used Only With P/N 22525 (22524)	22524	Spreader Beam Sleeve Used Only With P/N 22525 (22524)	185	$4,478.02

MPN: 22524

Product Title: Spreader Beam Sleeve Used Only With P/N 22525 (22524)

Weight (lbs): 185

Price:$4,478.02
