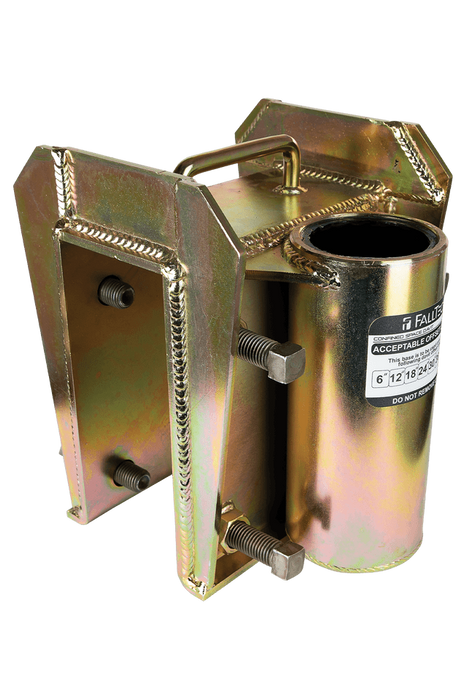

Barrel Mount Davit Base (65012F)

Features

• Features bolt-on installation to existing edges, walls and other properly rated structures up to 3-1/2"" thick
• Designed for use with FallTech® 29" and 44" Offset Davit Arms and one of four lower mast extensions.
• Plated steel construction with PVC sleeve insert and integral carry handle for portability
• Includes 8 pcs 3/4" x 3" square head set screws for securing to structure
• Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions


Material Specifications

• Davit Base: Plated carbon steel
• Sleeve Insert: PVC pipe

Performance Specifications

• Rescue Static Strength: 6,750 lb min.
• Entry/Egress Static Strength: 1,800 lb min.
• Rescue User Capacity: 2 users, 310 lb max. for each person
• Entry/Egress Capacity: 1 user, 310 lb max.

Compliant With

OSHA 1926.502 and 1910.66 when used in a complete system
