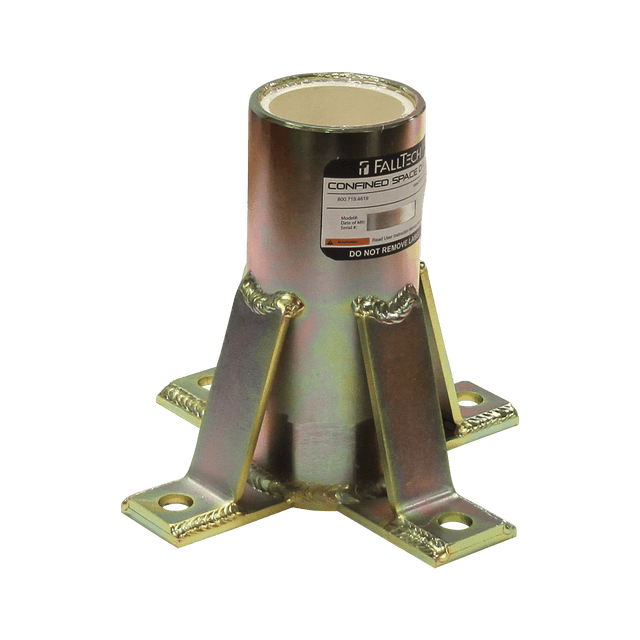

Floor-mount Plated Steel Bolt-on Fixed Davit Base (65060FMZ)

Features

• Permanently installed davit base solution for is ideally suited for recurrent access locations
• Bolt-on design for existing steel and concrete installation.
• 9" deep sleeve with PVC insert deliver secure anchoring point for davit arm and mast attachment
• Plated steel construction throughout; also available in stainless steel
• User-supplied fasteners required for installation
• Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions


Material Specifications

• Davit Base: Plated carbon steel


• Sleeve Insert: PVC pipe

Performance Specifications

• Rated Capacity: 620 lb at minimum 4:1 design factor


• Mast Moment Proof Load: 6,167 ft. lb


• Mast Rotation: 360°

Compliant With

OSHA 1926.502 and 1910.66 when used in a complete system
