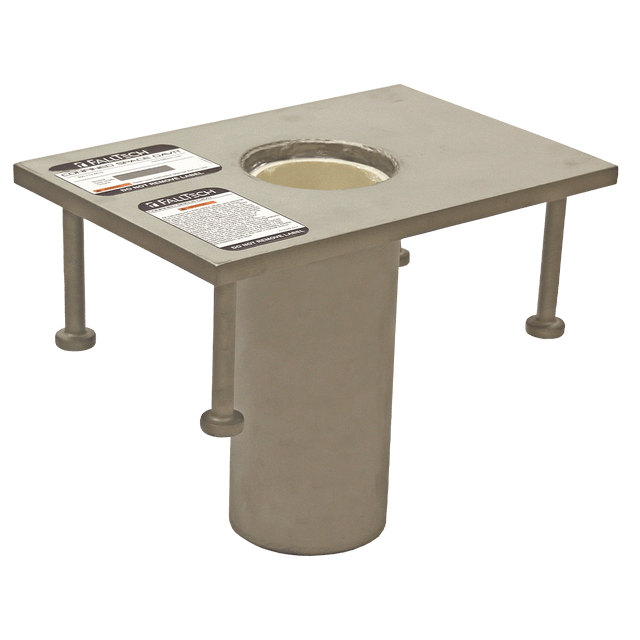

Flush-mount Stainless Steel Cast-in Fixed Davit Base (65030CFS)

Features

• Permanently installed davit base solution for is ideally suited for recurrent access locations
• Cast-in design for new concrete construction installation.
• Rugged 8" x 12" plate with 4" support rods provide long lasting fixed base solution
• 9" deep sleeve with PVC insert deliver secure anchoring point for davit arm and mast attachment
• Flush floor profile is well-matched for high traffic areas and helps reduce tripping hazards
• Stainless steel construction throughout; also available in plated carbon steel
• Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions


Material Specifications

• Davit Base: 304 Stainless Steel


• Sleeve Insert: PVC pipe

Performance Specifications

• Rated Capacity: 620 lb at minimum 4:1 design factor


• Mast Moment Proof Load: 6,167 ft. lb


• Mast Rotation: 360°

Compliant With

OSHA 1926.502 and 1910.66 when used in a complete system
