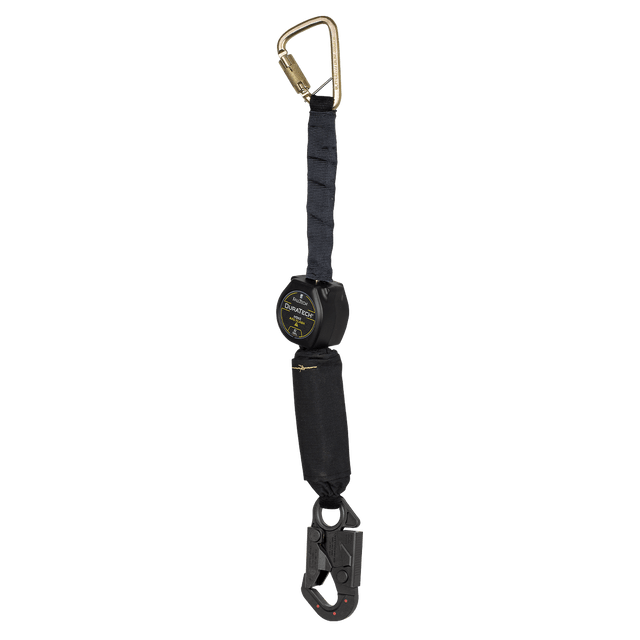

6' Arc Flash DuraTech® Mini Class 1 Personal SRL-P with Dielectric Dorsal Connecting Snap Hook and Steel Anchorage Carabiner (72906SCD1L)

Features

• Kevlar® web lifeline protects against Arc Flash hazards
• Energy absorber features Nomex® ViewPack® cover with inspection window and WrapPack label protection.
• Features internal locking pawls and external energy absorber for even deceleration
• Nylon housing provides impact resistance in most worksite conditions
• Plated steel swivel-eye helps to prevent lifeline twisting and provide smooth operation
• Features alloy steel carabiner anchorage connector with Kevlar® extension for lift connections
• Includes dielectric dorsal connecting snap hook
• May be anchored up to 3' below the dorsal D-ring for user's weighing up to 310 lb max
• Complies with ANSI Z359.14-20121 Class 1 SRL-P and ASTM F887-20.


Material Specifications

• Webbing: Kevlar®; 4,500 lb min.
• Energy Absorber: Polyester tear-away
• Anchorage Connector: Aluminum alloy; 5,000 lb min. static strength with 3,600 lb gate strength
• Dorsal Connector: Plated alloy steel; 5,000 lb min. static strength with 5,000 lb gate strength

Performance Specifications

• Static Strength: 3,600 lb min.


• ANSI SRL Class/Type: Class 1 SRL-P


• Avg. Arrest Force: 900 lb


• Max. Arrest Force: 1,800 lb


• Max. Arrest Distance: 42"


• ANSI User Capacity: 130 to 310 lb max.


• OSHA User Capacity: 130 to 310 lb max.

Compliant With:
