Dual Arm Coil Lifters

Manufactured to exceed all ASME B30.20 and OSHA regulations.
Painted safety yellow for increased visibility.
ALL Coil Lifters proof loaded and shipped with certification paperwork.
Durable construction ideally suited to jobsite or warehouse use.
Made in U.S.A.
ALL lifting equipment individually proof loaded per OSHA requirements.

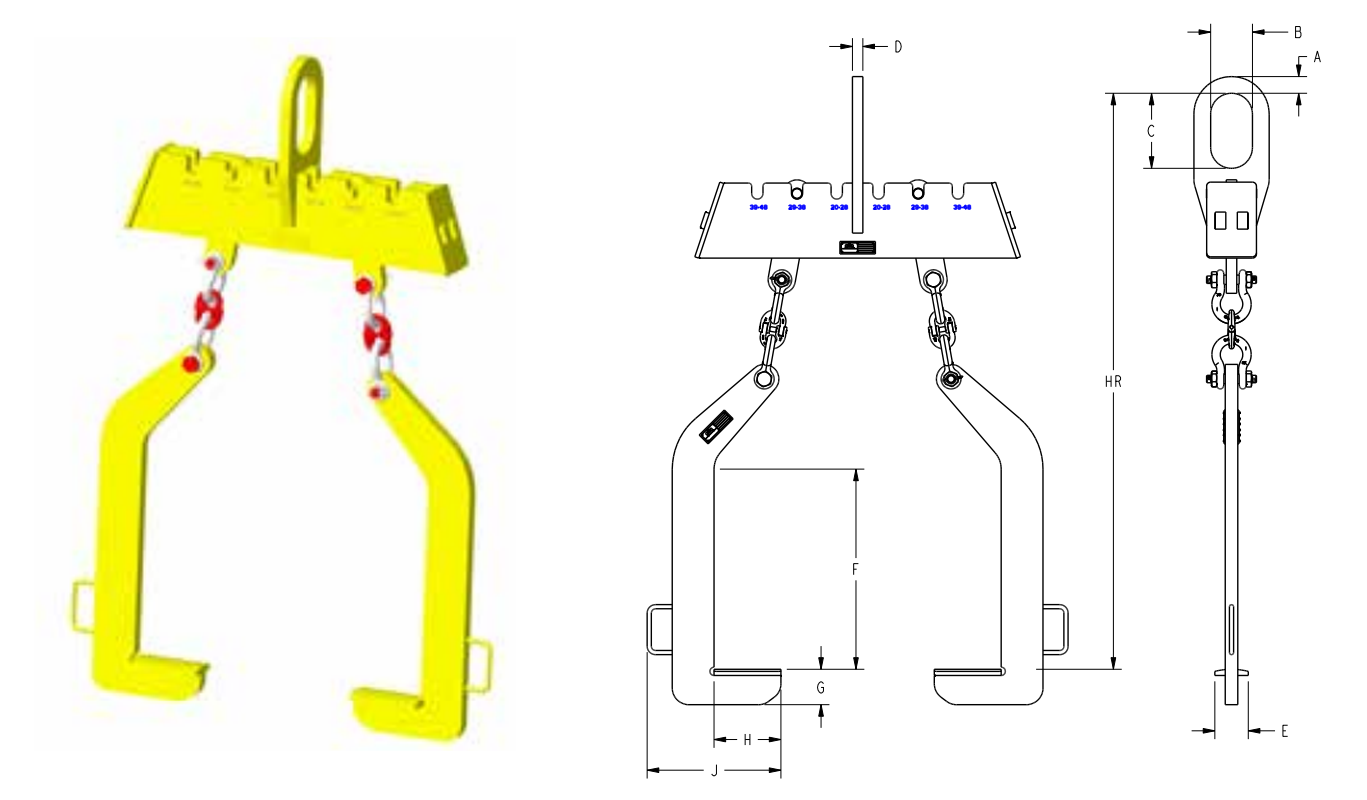

MPN	WLL	Coil Range Beam Width Settings	Min / Max Coil Width	A	B	C	D	E	F	G	H	J	Headroom (in)	Weight (lbs)	Price	Quantity
Dual Arm Coil Lifter 20,000 lbs 20-48" Coil Width (24800)	24800	20,000	20”-28” 29”- 38” 39”-48”	20"-48"	2	5	9	1.25	4	24	4.25	8	16	69	545	$6,570.96

Dual Arm Coil Lifter 30,000 lbs 20-48" Coil Width (24892)	24892	30,000	20”-28” 29”- 38” 39”-48”	20"-48"	2	5	9	1.25	4	28	4.5	8	16	73	555	$7,228.04

Dual Arm Coil Lifter 40,000 lbs 24-60" Coil Width (24894)	24894	40,000	24”-32” 33”- 42” 43”-52” 53”-60”	24”-60”	2.5	8	9	1.25	4	30	4.75	8	16	80	785	$9,847.02

Products

MPN: 24800

WLL: 20,000

Coil Range Beam Width Settings: 20”-28” 29”- 38” 39”-48”

Min / Max Coil Width: 20"-48"

A: 2

B: 5

C: 9

D: 1.25

E: 4

F: 24

G: 4.25

H: 8

J: 16

Headroom (in): 69

Weight (lbs): 545

Price:$6,570.96

MPN: 24892

WLL: 30,000

Coil Range Beam Width Settings: 20”-28” 29”- 38” 39”-48”

Min / Max Coil Width: 20"-48"

A: 2

B: 5

C: 9

D: 1.25

E: 4

F: 28

G: 4.5

H: 8

J: 16

Headroom (in): 73

Weight (lbs): 555

Price:$7,228.04

MPN: 24894

WLL: 40,000

Coil Range Beam Width Settings: 24”-32” 33”- 42” 43”-52” 53”-60”

Min / Max Coil Width: 24”-60”

A: 2.5

B: 8

C: 9

D: 1.25

E: 4

F: 30

G: 4.75

H: 8

J: 16

Headroom (in): 80

Weight (lbs): 785

Price:$9,847.02
