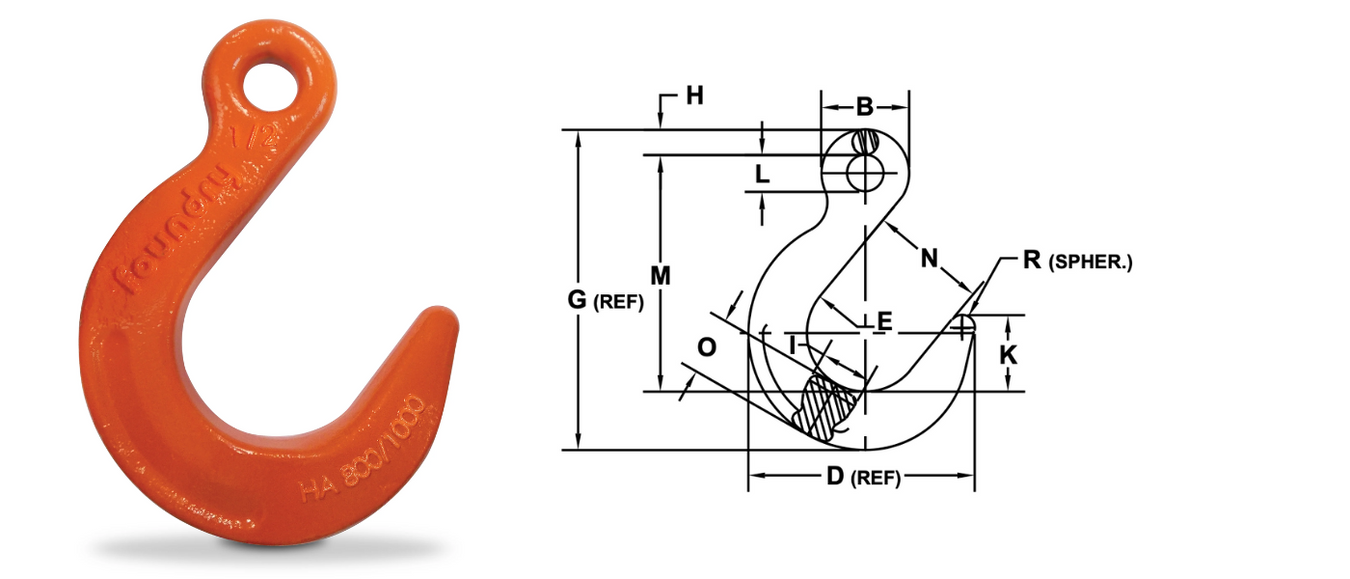

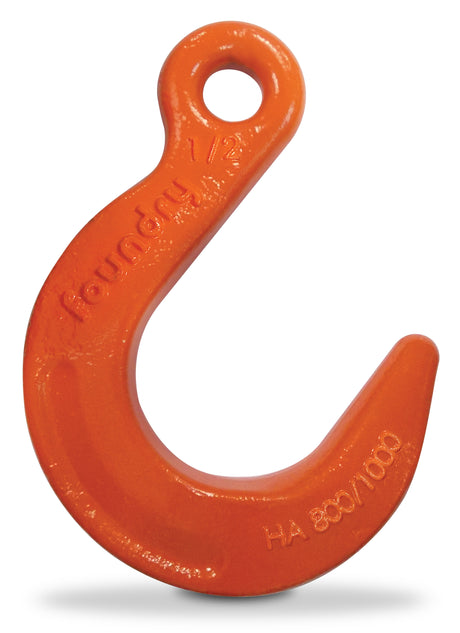

Eye Foundry Hook Grade 100

Benefits & Features

  • For use with both Grade 80 & 100 chain
  • Throat opening to 4.5" (114 mm)
  • Meets ASTM A952 standards
  • Durable orange powder coated finish
  • 100% proof tested
  • For welded 7/32" chain sling use 9/32" eye foundry hook
  • 4:1 design factor
  • Meets ASME B30.10

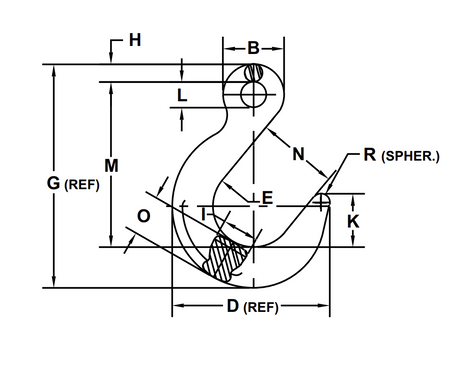

Size (in.) Working Load Limit (lbs.) MPN B (in.) D (in.) E (in.) G (in.) H (in.) I (in.) K (in.) L (in.) M (in.) N (in.) O (in.) R (in.) Price Quantity
9/32 4,300 474798 1.56 4.73 2.50 6.45 0.47 1.00 1.56 0.63 4.75 2.50 1.23 0.25 $161.65
3/8 8,800 474799 2.00 5.72 3.00 7.88 0.63 1.27 1.88 0.80 5.77 3.00 1.50 0.31 $215.38
1/2 15,000 474800 2.50 6.74 3.50 9.38 0.75 1.50 2.22 1.00 6.88 3.50 1.75 0.38 $259.22
5/8 22,600 474801 3.00 7.79 4.00 10.97 0.88 1.81 2.63 1.13 8.06 4.00 2.03 0.44 $323.16
3/4 35,300 474802 3.50 9.07 4.50 12.81 1.00 2.20 3.00 1.50 9.25 4.50 2.56 0.50 $454.92

Products

Size (in.): 9/32
Working Load Limit (lbs.): 4,300
MPN: 474798
B (in.): 1.56
D (in.): 4.73
E (in.): 2.50
G (in.): 6.45
H (in.): 0.47
I (in.): 1.00
K (in.): 1.56
L (in.): 0.63
M (in.): 4.75
N (in.): 2.50
O (in.): 1.23
R (in.): 0.25
Price:$161.65
Size (in.): 3/8
Working Load Limit (lbs.): 8,800
MPN: 474799
B (in.): 2.00
D (in.): 5.72
E (in.): 3.00
G (in.): 7.88
H (in.): 0.63
I (in.): 1.27
K (in.): 1.88
L (in.): 0.80
M (in.): 5.77
N (in.): 3.00
O (in.): 1.50
R (in.): 0.31
Price:$215.38
Size (in.): 1/2
Working Load Limit (lbs.): 15,000
MPN: 474800
B (in.): 2.50
D (in.): 6.74
E (in.): 3.50
G (in.): 9.38
H (in.): 0.75
I (in.): 1.50
K (in.): 2.22
L (in.): 1.00
M (in.): 6.88
N (in.): 3.50
O (in.): 1.75
R (in.): 0.38
Price:$259.22
Size (in.): 5/8
Working Load Limit (lbs.): 22,600
MPN: 474801
B (in.): 3.00
D (in.): 7.79
E (in.): 4.00
G (in.): 10.97
H (in.): 0.88
I (in.): 1.81
K (in.): 2.63
L (in.): 1.13
M (in.): 8.06
N (in.): 4.00
O (in.): 2.03
R (in.): 0.44
Price:$323.16
Size (in.): 3/4
Working Load Limit (lbs.): 35,300
MPN: 474802
B (in.): 3.50
D (in.): 9.07
E (in.): 4.50
G (in.): 12.81
H (in.): 1.00
I (in.): 2.20
K (in.): 3.00
L (in.): 1.50
M (in.): 9.25
N (in.): 4.50
O (in.): 2.56
R (in.): 0.50
Price:$454.92
