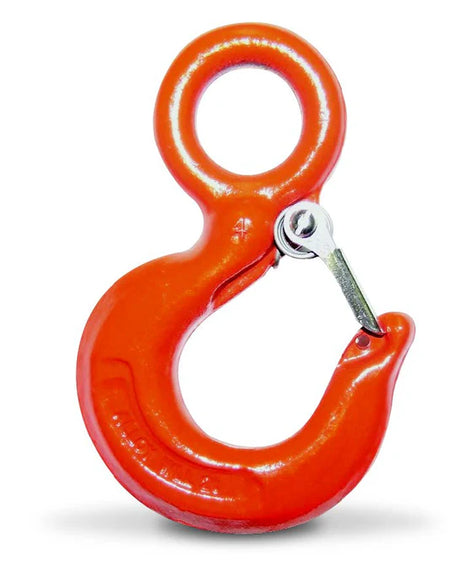

Eye Rigging Hook with Latch Alloy

WORKING LOAD LIMIT: 3/4 TO 22 TONS

Benefits & Features

  •  Load rating marked on each hook body
  • Design factor 5:1
  • Hook tips are pre-drilled to allow securement of the latch
  • Powder coated orange
  • Meets ASME B30.10
  • Pre-drilled for latches
  • Hooks furnished with or without latches
  • Hooks are heat treated, quenched
    and tempered

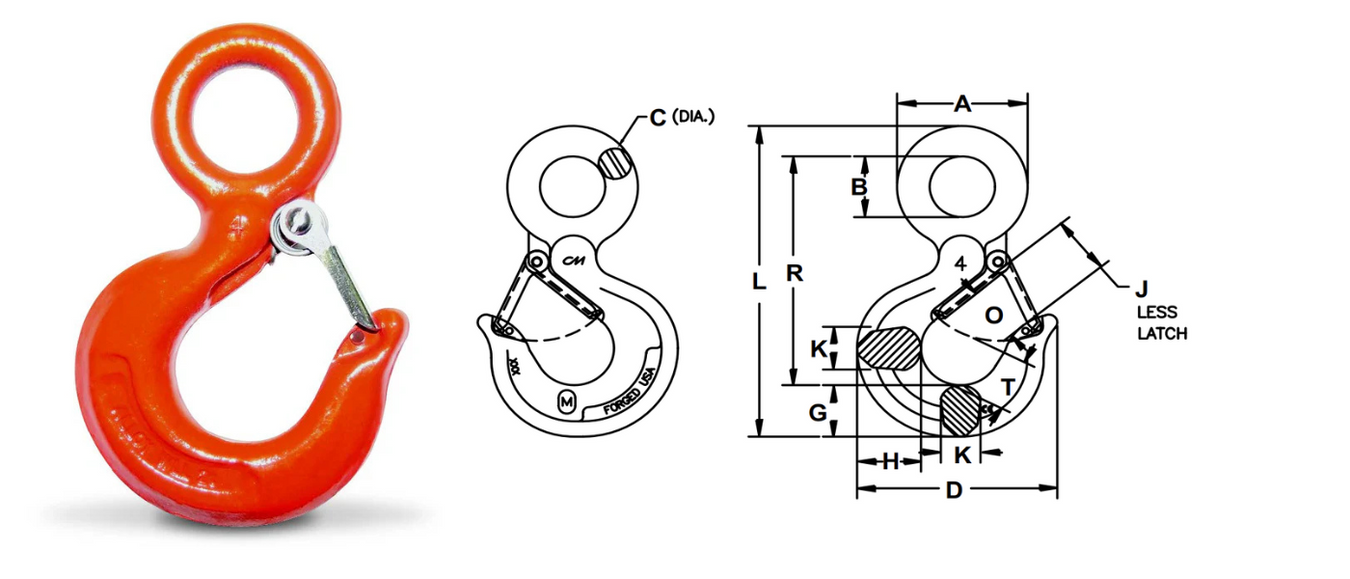

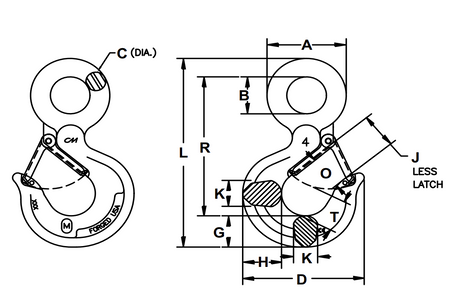

Working Load Limit (Ton) MPN A (in.) B (in.) C (in.) D (in.) G (in.) H (in.) J (in.) K (in.) L (in.) O (in.) R (in.) T (in.) Price Quantity
1 M6502A 1.50 0.75 0.38 3.12 0.87 1.01 0.93 0.63 4.37 0.93 3.13 0.87 $29.82
1-1/2 M6503A 1.75 0.88 0.44 3.37 0.94 1.11 0.97 0.71 5.04 0.97 3.66 0.97 $33.34
2 M6504A 2.13 1.10 0.50 3.80 1.06 1.21 1.02 0.74 5.65 1.02 4.09 1.03 $34.97
3 M6505A 2.50 1.25 0.64 4.20 1.26 1.43 1.19 0.94 6.55 1.16 4.67 1.16 $45.75
5 M6507A 3.08 1.56 0.77 5.11 1.44 1.63 1.50 1.38 7.97 1.41 5.78 1.53 $75.12
7 M6509A 3.88 1.98 0.94 6.24 1.82 2.01 1.78 1.68 10.07 1.69 7.31 1.94 $115.07
11 M6511A 4.69 2.44 1.13 7.89 2.25 2.63 2.38 1.88 12.41 2.19 9.03 2.52 $257.63
15 M6515A 5.34 2.84 1.25 8.53 2.75 3.10 2.50 2.03 14.05 2.30 10.21 2.54 $367.37

Products

Working Load Limit (Ton): 1
MPN: M6502A
A (in.): 1.50
B (in.): 0.75
C (in.): 0.38
D (in.): 3.12
G (in.): 0.87
H (in.): 1.01
J (in.): 0.93
K (in.): 0.63
L (in.): 4.37
O (in.): 0.93
R (in.): 3.13
T (in.): 0.87
Price:$29.82
Working Load Limit (Ton): 1-1/2
MPN: M6503A
A (in.): 1.75
B (in.): 0.88
C (in.): 0.44
D (in.): 3.37
G (in.): 0.94
H (in.): 1.11
J (in.): 0.97
K (in.): 0.71
L (in.): 5.04
O (in.): 0.97
R (in.): 3.66
T (in.): 0.97
Price:$33.34
Working Load Limit (Ton): 2
MPN: M6504A
A (in.): 2.13
B (in.): 1.10
C (in.): 0.50
D (in.): 3.80
G (in.): 1.06
H (in.): 1.21
J (in.): 1.02
K (in.): 0.74
L (in.): 5.65
O (in.): 1.02
R (in.): 4.09
T (in.): 1.03
Price:$34.97
Working Load Limit (Ton): 3
MPN: M6505A
A (in.): 2.50
B (in.): 1.25
C (in.): 0.64
D (in.): 4.20
G (in.): 1.26
H (in.): 1.43
J (in.): 1.19
K (in.): 0.94
L (in.): 6.55
O (in.): 1.16
R (in.): 4.67
T (in.): 1.16
Price:$45.75
Working Load Limit (Ton): 5
MPN: M6507A
A (in.): 3.08
B (in.): 1.56
C (in.): 0.77
D (in.): 5.11
G (in.): 1.44
H (in.): 1.63
J (in.): 1.50
K (in.): 1.38
L (in.): 7.97
O (in.): 1.41
R (in.): 5.78
T (in.): 1.53
Price:$75.12
Working Load Limit (Ton): 7
MPN: M6509A
A (in.): 3.88
B (in.): 1.98
C (in.): 0.94
D (in.): 6.24
G (in.): 1.82
H (in.): 2.01
J (in.): 1.78
K (in.): 1.68
L (in.): 10.07
O (in.): 1.69
R (in.): 7.31
T (in.): 1.94
Price:$115.07
Working Load Limit (Ton): 11
MPN: M6511A
A (in.): 4.69
B (in.): 2.44
C (in.): 1.13
D (in.): 7.89
G (in.): 2.25
H (in.): 2.63
J (in.): 2.38
K (in.): 1.88
L (in.): 12.41
O (in.): 2.19
R (in.): 9.03
T (in.): 2.52
Price:$257.63
Working Load Limit (Ton): 15
MPN: M6515A
A (in.): 5.34
B (in.): 2.84
C (in.): 1.25
D (in.): 8.53
G (in.): 2.75
H (in.): 3.10
J (in.): 2.50
K (in.): 2.03
L (in.): 14.05
O (in.): 2.30
R (in.): 10.21
T (in.): 2.54
Price:$367.37
