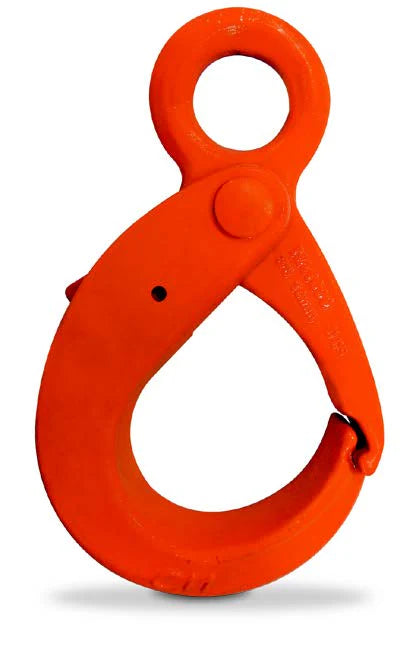

Eye Self Locking Hooks Grade 100

WORKING LOAD LIMIT: 4,300 TO 22,600 LBS.

Benefits & Features

  • Large eye design for use with chain, wire rope and synthetic material
  • 100% proof tested
  • Meets ASTM A952 standards
  • Durable orange powder coated finish
  • For welded 7/32" chain sling use 9/32" eye Lodelok hook
  • Positive locking hook
  • 4:1 design factor
  • Meets ASME B30.10

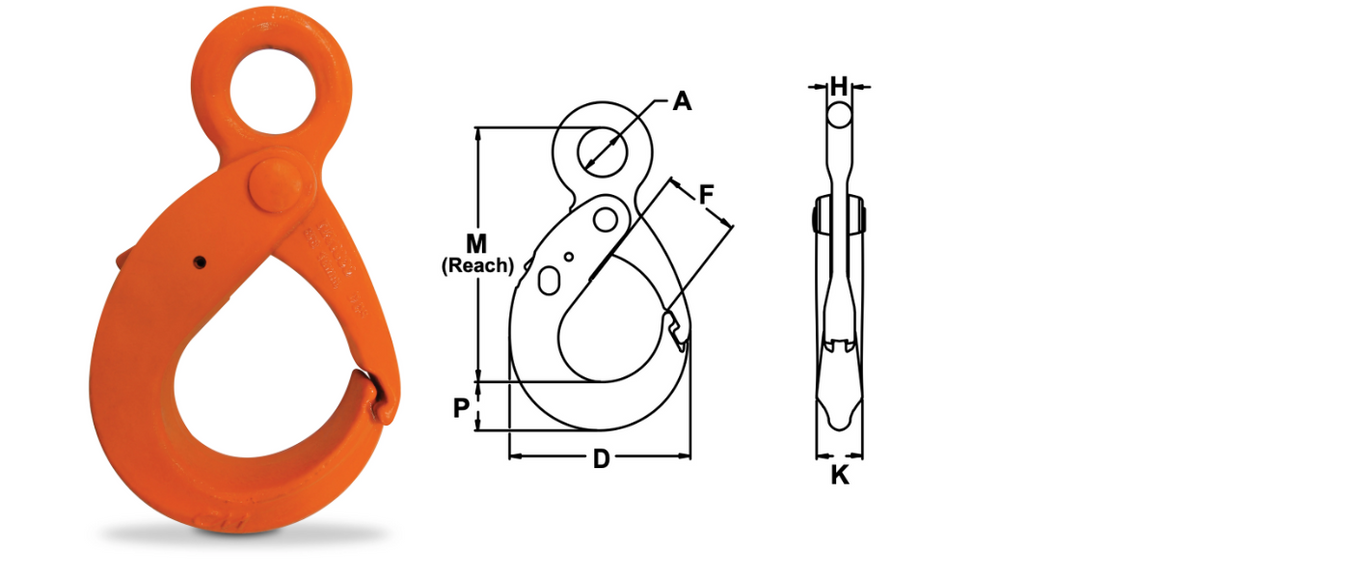

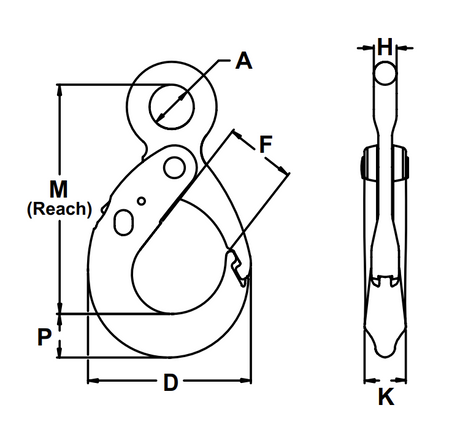

Size (in.) Working Load Limit (lbs.) MPN A (in.) M (in.) P (in.) D (in.) F (in.) H (in.) K (in.) Price Quantity
9/32 4,300 M626005 1.09 5.37 0.88 3.77 1.64 0.47 0.91 $139.27
3/8 8,800 M626010 1.36 6.65 1.07 4.74 2.27 0.59 1.15 $157.49
1/2 15,000 M626015 1.57 8.79 1.58 6.26 2.91 0.80 1.47 $251.87
5/8 22,600 M626020 2.00 10.37 1.97 7.37 3.22 1.03 1.85 $333.75

Products

Size (in.): 9/32
Working Load Limit (lbs.): 4,300
MPN: M626005
A (in.): 1.09
M (in.): 5.37
P (in.): 0.88
D (in.): 3.77
F (in.): 1.64
H (in.): 0.47
K (in.): 0.91
Price:$139.27
Size (in.): 3/8
Working Load Limit (lbs.): 8,800
MPN: M626010
A (in.): 1.36
M (in.): 6.65
P (in.): 1.07
D (in.): 4.74
F (in.): 2.27
H (in.): 0.59
K (in.): 1.15
Price:$157.49
Size (in.): 1/2
Working Load Limit (lbs.): 15,000
MPN: M626015
A (in.): 1.57
M (in.): 8.79
P (in.): 1.58
D (in.): 6.26
F (in.): 2.91
H (in.): 0.80
K (in.): 1.47
Price:$251.87
Size (in.): 5/8
Working Load Limit (lbs.): 22,600
MPN: M626020
A (in.): 2.00
M (in.): 10.37
P (in.): 1.97
D (in.): 7.37
F (in.): 3.22
H (in.): 1.03
K (in.): 1.85
Price:$333.75
