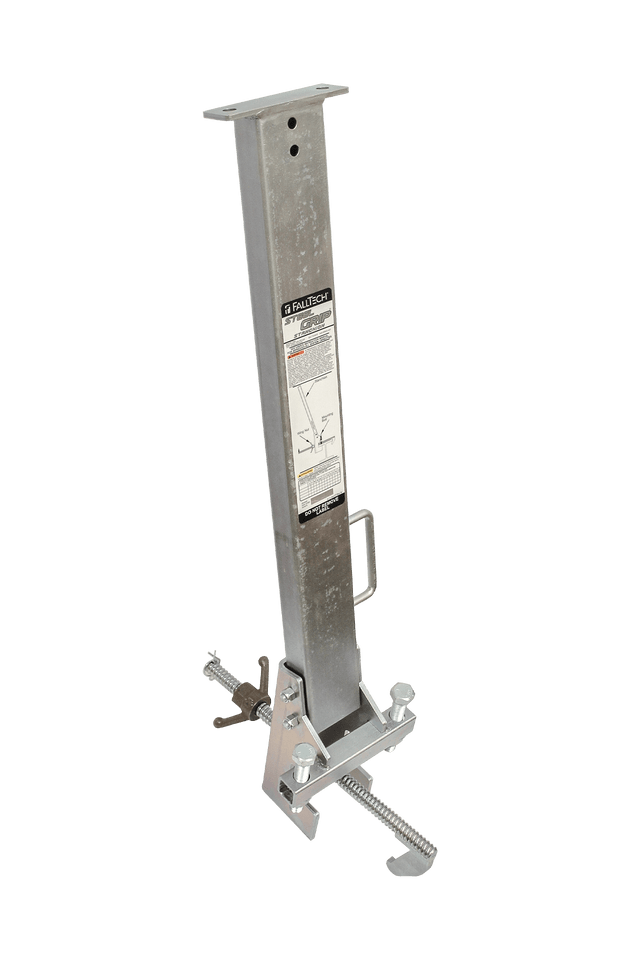

4"-24" Flange Beam SteelGrip Clamp I-Beam Stanchion for HLLs (603024K)

Features

• SteelGrip® I-Beam Stanchion with 12" clamp for Temporary Cable HLLs
• Plated steel I-beam stanchion with adjustable clamping rod.
• Clamping rod and wing nut adjust to fit flanges from 4" up to 12" wide
• Stanchion base fits I-beam flanges up to 2-1/4" thick
• Stanchion base includes 7/8" Grade 5 securing bolts
• Features integrated carrying handle
• Meets OSHA 1926.502 and 1910.66 regulations

Material Specifications

• Stanchion: Plated carbon steel post, base and clamp; 8,000 lb min. static strength
• Fasteners: 7/8" and 1/2" grade 5 carbon steel

Performance Specifications

• Static Strength: 8,000 lb Min
• OSHA User Capacity: 310 lb max. per user; 2 users max. per single span

Compliant With
