FHX/FHSX Horizontal Lifting Clamps

Lightweight heavy duty clamp for horizontal lifting

Application
  • For horizontal lifting and transporting of steel plates and other non-deflecting materials
  • Terrier FHX / FHSX lifting clamps must always be used in pairs (or multiple pairs)
  • Jaw openings available from: 0 to 150 mm
  • FHSX types are supplied with enlarged jaw opening
  • Working load limit (WLL) 1000 - 25000kg per pair (Higher WLL available upon request)
Features and benefits
  • Compact design and high lifting capacity
  • Lightweight design for easy handling
  • Tough quality heavy duty welded body

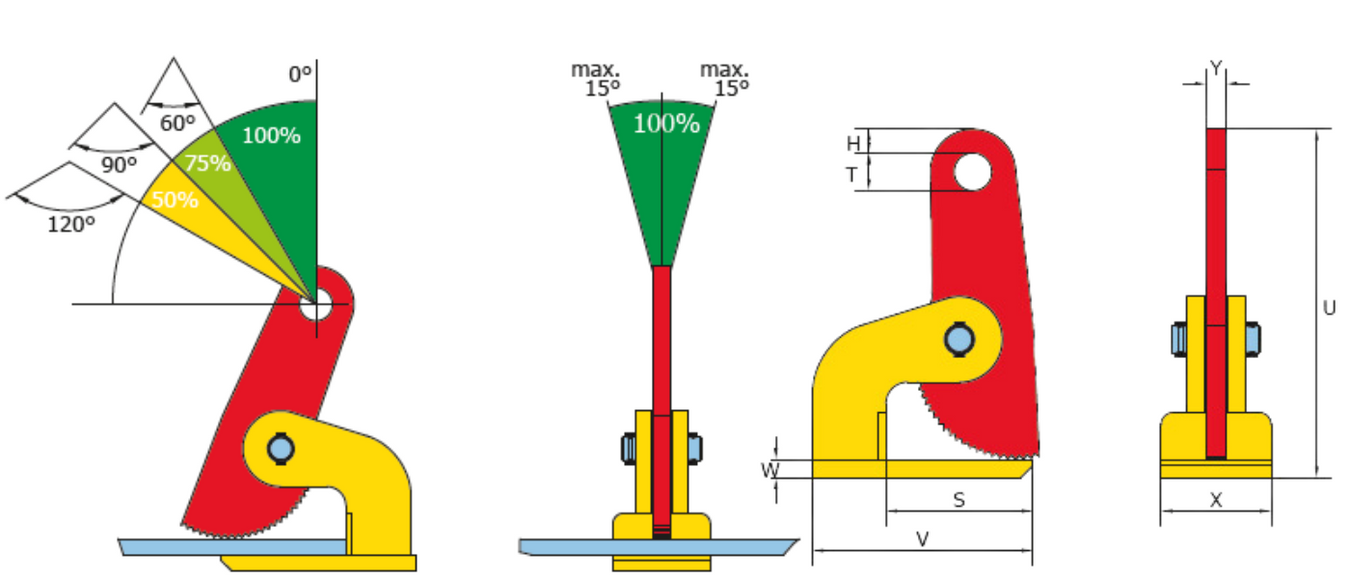

MPN Type Working Load Limit (lbs.) Jaw Opening (in.) V (In.) S (In.) W (In.) T (In.) H (In.) X (In.) U (In.) Y (In.) Price Quantity
953100 1 FHX 1, 100 lb/pc 0 - 1.37 5.51 3.90 0.39 0.98 0.45 2.56 7.40 0.59 $238.37
954010 10 FHSX 11,000 lb/pc 0 - 3.93 8.86 5.31 1.38 1.20 0.76 4.72 16.85 1.18 $942.21
954012 12 FHSX 13,200 lb/pc 0 - 3.93 8.86 5.31 1.38 1.20 0.76 4.72 16.85 1.18 $1,083.42
953012 12 FHX 26,400 lb/pc 0 - 2.36 8.86 5.31 1.38 1.20 0.76 4.72 13.23 1.18 $881.24
853820 15 FHSX 16,500 lb/pc 0 - 5.90 13.78 9.45 1.38 1.77 1.08 5.51 26.18 1.38 $2,321.71
953015 15 FHX 16,500 lb/pc 0 - 2.36 10.31 5.79 1.38 1.69 0.84 6.30 13.54 1.38 $1,302.82
954200 2 FHSX 2,200 lb/pc 0 - 3.93 7.09 4.72 0.59 1.20 0.76 3.54 15.08 0.59 $354.31
953200 2 FHX 2,200 lb/pc 0 - 2.36 7.09 4.65 0.59 1.20 0.76 3.54 11.30 0.63 $280.65
953025 25 FHX 27,500 lb/pc 0 - 2.36 10.31 5.79 1.57 1.69 0.84 6.89 13.74 1.38 $1,857.60
954300 3 FHSX 3,300 lb/pc 0 - 3.93 7.09 4.72 0.79 1.20 0.76 3.54 15.24 0.59 $415.21
953300 3 FHX 3,300 lb/pc 0 - 2.36 7.09 7.09 0.79 1.20 0.76 3.54 11.46 0.63 $371.08
954400 4 FHSK 4,400 lb/pc 0 - 3.93 8.66 5.71 0.98 1.20 0.76 4.13 16.30 0.79 $478.31
953400 4 FHK 4,400 lb/pc 0 - 2.36 8.66 5.71 0.98 1.20 0.76 4.13 11.97 0.79 $434.01
954600 6 FHSX 6,600 lb/pc 0 - 3.93 8.66 5.71 0.98 1.20 0.76 4.13 16.30 0.79 $518.09
953600 6 FXH 6,600 lb/pc 0 - 2.36 8.66 5.71 0.98 1.20 0.76 4.33 12.09 0.79 $495.54
954800 8 FHSX 8,800 lb/pc 0 - 3.93 8.86 5.31 1.38 1.20 0.76 4.72 16.85 1.18 $753.27
953800 8 FHX 8,800 lb/pc 0 - 2.36 8.86 5.31 1.38 1.20 0.76 4.72 13.23 1.18 $726.10

Products

MPN: 953100
Type: 1 FHX
Working Load Limit (lbs.) : 1, 100 lb/pc
Jaw Opening (in.) : 0 - 1.37
V (In.): 5.51
S (In.): 3.90
W (In.): 0.39
T (In.): 0.98
H (In.): 0.45
X (In.): 2.56
U (In.): 7.40
Y (In.): 0.59
Price:$238.37
MPN: 954010
Type: 10 FHSX
Working Load Limit (lbs.) : 11,000 lb/pc
Jaw Opening (in.) : 0 - 3.93
V (In.): 8.86
S (In.): 5.31
W (In.): 1.38
T (In.): 1.20
H (In.): 0.76
X (In.): 4.72
U (In.): 16.85
Y (In.): 1.18
Price:$942.21
MPN: 954012
Type: 12 FHSX
Working Load Limit (lbs.) : 13,200 lb/pc
Jaw Opening (in.) : 0 - 3.93
V (In.): 8.86
S (In.): 5.31
W (In.): 1.38
T (In.): 1.20
H (In.): 0.76
X (In.): 4.72
U (In.): 16.85
Y (In.): 1.18
Price:$1,083.42
MPN: 953012
Type: 12 FHX
Working Load Limit (lbs.) : 26,400 lb/pc
Jaw Opening (in.) : 0 - 2.36
V (In.): 8.86
S (In.): 5.31
W (In.): 1.38
T (In.): 1.20
H (In.): 0.76
X (In.): 4.72
U (In.): 13.23
Y (In.): 1.18
Price:$881.24
MPN: 853820
Type: 15 FHSX
Working Load Limit (lbs.) : 16,500 lb/pc
Jaw Opening (in.) : 0 - 5.90
V (In.): 13.78
S (In.): 9.45
W (In.): 1.38
T (In.): 1.77
H (In.): 1.08
X (In.): 5.51
U (In.): 26.18
Y (In.): 1.38
Price:$2,321.71
MPN: 953015
Type: 15 FHX
Working Load Limit (lbs.) : 16,500 lb/pc
Jaw Opening (in.) : 0 - 2.36
V (In.): 10.31
S (In.): 5.79
W (In.): 1.38
T (In.): 1.69
H (In.): 0.84
X (In.): 6.30
U (In.): 13.54
Y (In.): 1.38
Price:$1,302.82
MPN: 954200
Type: 2 FHSX
Working Load Limit (lbs.) : 2,200 lb/pc
Jaw Opening (in.) : 0 - 3.93
V (In.): 7.09
S (In.): 4.72
W (In.): 0.59
T (In.): 1.20
H (In.): 0.76
X (In.): 3.54
U (In.): 15.08
Y (In.): 0.59
Price:$354.31
MPN: 953200
Type: 2 FHX
Working Load Limit (lbs.) : 2,200 lb/pc
Jaw Opening (in.) : 0 - 2.36
V (In.): 7.09
S (In.): 4.65
W (In.): 0.59
T (In.): 1.20
H (In.): 0.76
X (In.): 3.54
U (In.): 11.30
Y (In.): 0.63
Price:$280.65
MPN: 953025
Type: 25 FHX
Working Load Limit (lbs.) : 27,500 lb/pc
Jaw Opening (in.) : 0 - 2.36
V (In.): 10.31
S (In.): 5.79
W (In.): 1.57
T (In.): 1.69
H (In.): 0.84
X (In.): 6.89
U (In.): 13.74
Y (In.): 1.38
Price:$1,857.60
MPN: 954300
Type: 3 FHSX
Working Load Limit (lbs.) : 3,300 lb/pc
Jaw Opening (in.) : 0 - 3.93
V (In.): 7.09
S (In.): 4.72
W (In.): 0.79
T (In.): 1.20
H (In.): 0.76
X (In.): 3.54
U (In.): 15.24
Y (In.): 0.59
Price:$415.21
MPN: 953300
Type: 3 FHX
Working Load Limit (lbs.) : 3,300 lb/pc
Jaw Opening (in.) : 0 - 2.36
V (In.): 7.09
S (In.): 7.09
W (In.): 0.79
T (In.): 1.20
H (In.): 0.76
X (In.): 3.54
U (In.): 11.46
Y (In.): 0.63
Price:$371.08
MPN: 954400
Type: 4 FHSK
Working Load Limit (lbs.) : 4,400 lb/pc
Jaw Opening (in.) : 0 - 3.93
V (In.): 8.66
S (In.): 5.71
W (In.): 0.98
T (In.): 1.20
H (In.): 0.76
X (In.): 4.13
U (In.): 16.30
Y (In.): 0.79
Price:$478.31
MPN: 953400
Type: 4 FHK
Working Load Limit (lbs.) : 4,400 lb/pc
Jaw Opening (in.) : 0 - 2.36
V (In.): 8.66
S (In.): 5.71
W (In.): 0.98
T (In.): 1.20
H (In.): 0.76
X (In.): 4.13
U (In.): 11.97
Y (In.): 0.79
Price:$434.01
MPN: 954600
Type: 6 FHSX
Working Load Limit (lbs.) : 6,600 lb/pc
Jaw Opening (in.) : 0 - 3.93
V (In.): 8.66
S (In.): 5.71
W (In.): 0.98
T (In.): 1.20
H (In.): 0.76
X (In.): 4.13
U (In.): 16.30
Y (In.): 0.79
Price:$518.09
MPN: 953600
Type: 6 FXH
Working Load Limit (lbs.) : 6,600 lb/pc
Jaw Opening (in.) : 0 - 2.36
V (In.): 8.66
S (In.): 5.71
W (In.): 0.98
T (In.): 1.20
H (In.): 0.76
X (In.): 4.33
U (In.): 12.09
Y (In.): 0.79
Price:$495.54
MPN: 954800
Type: 8 FHSX
Working Load Limit (lbs.) : 8,800 lb/pc
Jaw Opening (in.) : 0 - 3.93
V (In.): 8.86
S (In.): 5.31
W (In.): 1.38
T (In.): 1.20
H (In.): 0.76
X (In.): 4.72
U (In.): 16.85
Y (In.): 1.18
Price:$753.27
MPN: 953800
Type: 8 FHX
Working Load Limit (lbs.) : 8,800 lb/pc
Jaw Opening (in.) : 0 - 2.36
V (In.): 8.86
S (In.): 5.31
W (In.): 1.38
T (In.): 1.20
H (In.): 0.76
X (In.): 4.72
U (In.): 13.23
Y (In.): 1.18
Price:$726.10
