Forged Alloy Eye Nuts

Material: Alloy Steel
Finish: Hot-Dipped Galvanized (Also available: Black Oxide)
Heat Treat: Certified Heat Treatment
Note: Threaded rod not included. High Tensile Alloy screws equivalent to Grade 8 must be used.
Caution: Working load limit is for straight lifts. Side lifts should be avoided.

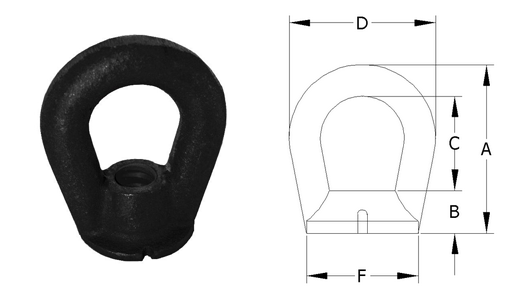

MPN WLL Thread Type Thread Size A B C D F Price Quantity
48570-G 2,500 lbs Coil 1/2" - 6 3.10 in 0.82 in 1.80 in 2 1/2 in 1 1/2 in $24.91
48580-G 2,500 lbs UNC 1/2" - 13 3.10 in 0.82 in 1.80 in 2 1/2 in 1 1/2 in $24.91
48572-G 5,000 lbs Coil 3/4" - 4 1/2 3.50 in 1.00 in 1.85 in 3 in 2 in $34.66
48582-G 5,000 lbs UNC 3/4" - 10 3.50 in 1.00 in 1.85 in 3 in 2 in $34.66
48574-G 10,000 lbs Coil 1" - 3 1/2 4.30 in 1.33 in 2.10 in 3 3/4 in 2 3/4 in $53.09
48584-G 10,000 lbs UNC 1" - 8 4.30 in 1.33 in 2.10 in 3 3/4 in 2 3/4 in $53.09
48576-G 15,000 lbs Coil 1 1/4" - 3 1/2 5.30 in 1.50 in 2.80 in 4 1/2 in 3 1/8 in $109.41
48586-G 15,000 lbs UNC 1 1/4" - 7 5.30 in 1.50 in 2.80 in 4 1/2 in 3 1/8 in $109.41
48578-G 24,000 lbs Coil 1 1/2" - 3 1/2 6.50 in 1.90 in 3.30 in 5 5/8 in 3 3/4 in $134.32
48588-G 24,000 lbs UNC 1 1/2" - 6 6.50 in 1.90 in 3.30 in 5 5/8 in 3 3/4 in $134.32
