Forged Hoist Rings

Material: Alloy Steel
Finish: Black Oxide
Inspected: Magnetic Particle Inspected
Heat Treat: Certified Heat Treatment
Note: Screws not included

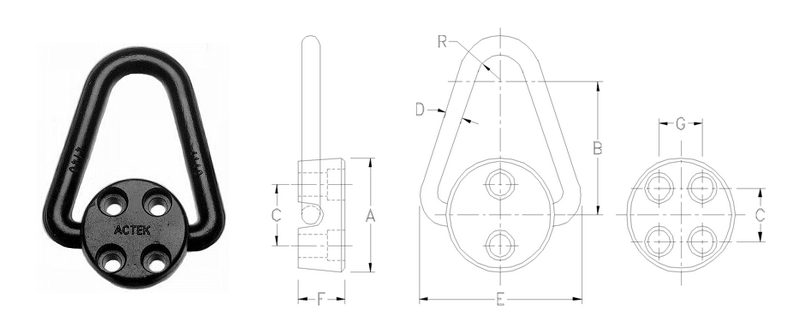

MPN Rated Load A B C D E F G R Torque Weight (lbs) Inch Screw x Length (P/N) Metric Screw x Length (P/N) Price Quantity
68060 2,000 lbs 1 3/4 in 2 in 1 in 5/16 in 2 1/2 in 3/4 in N/A 1/2 in 4 - 7 ft-lbs 0.55 lbs 5/16"-18 x 1-1/4 (46144-FF) M8 x 1.25 x 30 (49142-FF) $20.86
68070 2,500 lbs 2 1/4 in 2 1/2 in 1 1/8 in 3/8 in 3 3/16 in 7/8 in N/A 5/8 in 7 - 10 ft-lbs 1.25 lbs 3/8"-16 x 1-1/4 (46146-FF) M10 x 1.50 x 35 (49146-FF) $22.14
68080 5,000 lbs 2 5/8 in 3 in 1 1/2 in 1/2 in 3 7/8 in 1 1/8 in N/A 3/4 in 20 - 25 ft-lbs 2.00 lbs 1/2"-13 x 2 (46048-FF) M12 x 1.75 x 50 (49048-FF) $31.28
68090 12,000 lbs 3 1/8 in 4 in 1 5/8 in 3/4 in 5 in 1 3/8 in 1 1/4 in 7/8 in 20 - 25 ft-lbs 4.00 lbs 1/2"-13 x 2-1/2 (46052-FF) M12 x 1.75 x 50 (49048-FF) $61.42
68100 20,000 lbs 3 5/8 in 5 in 2 1/16 in 1 in 6 13/16 in 1 7/8 in 1 1/4 in 1 in 30 - 35 ft-lbs 7.50 lbs 5/8"-11 x 3 (46043-FF) M16 x 2.00 x 60 (49056-FF) $88.56

Products

MPN: 68060
Rated Load: 2,000 lbs
A: 1 3/4 in
B: 2 in
C: 1 in
D: 5/16 in
E: 2 1/2 in
F: 3/4 in
G: N/A
R: 1/2 in
Torque: 4 - 7 ft-lbs
Weight (lbs): 0.55 lbs
Inch Screw x Length (P/N): 5/16"-18 x 1-1/4 (46144-FF)
Metric Screw x Length (P/N): M8 x 1.25 x 30 (49142-FF)
Price:$20.86
MPN: 68070
Rated Load: 2,500 lbs
A: 2 1/4 in
B: 2 1/2 in
C: 1 1/8 in
D: 3/8 in
E: 3 3/16 in
F: 7/8 in
G: N/A
R: 5/8 in
Torque: 7 - 10 ft-lbs
Weight (lbs): 1.25 lbs
Inch Screw x Length (P/N): 3/8"-16 x 1-1/4 (46146-FF)
Metric Screw x Length (P/N): M10 x 1.50 x 35 (49146-FF)
Price:$22.14
MPN: 68080
Rated Load: 5,000 lbs
A: 2 5/8 in
B: 3 in
C: 1 1/2 in
D: 1/2 in
E: 3 7/8 in
F: 1 1/8 in
G: N/A
R: 3/4 in
Torque: 20 - 25 ft-lbs
Weight (lbs): 2.00 lbs
Inch Screw x Length (P/N): 1/2"-13 x 2 (46048-FF)
Metric Screw x Length (P/N): M12 x 1.75 x 50 (49048-FF)
Price:$31.28
MPN: 68090
Rated Load: 12,000 lbs
A: 3 1/8 in
B: 4 in
C: 1 5/8 in
D: 3/4 in
E: 5 in
F: 1 3/8 in
G: 1 1/4 in
R: 7/8 in
Torque: 20 - 25 ft-lbs
Weight (lbs): 4.00 lbs
Inch Screw x Length (P/N): 1/2"-13 x 2-1/2 (46052-FF)
Metric Screw x Length (P/N): M12 x 1.75 x 50 (49048-FF)
Price:$61.42
MPN: 68100
Rated Load: 20,000 lbs
A: 3 5/8 in
B: 5 in
C: 2 1/16 in
D: 1 in
E: 6 13/16 in
F: 1 7/8 in
G: 1 1/4 in
R: 1 in
Torque: 30 - 35 ft-lbs
Weight (lbs): 7.50 lbs
Inch Screw x Length (P/N): 5/8"-11 x 3 (46043-FF)
Metric Screw x Length (P/N): M16 x 2.00 x 60 (49056-FF)
Price:$88.56
