Grade 100 Alloy Chain

Benefits & Features

  • Meets ASTM A973 & NACM standards
  • 25% higher working load limit when compared to Grade 80
  • Environmentally friendly black coating for distinct appearance and ease of identification
  • Certification included with every drum
  • 100% proof tested
  • 4:1 design factor

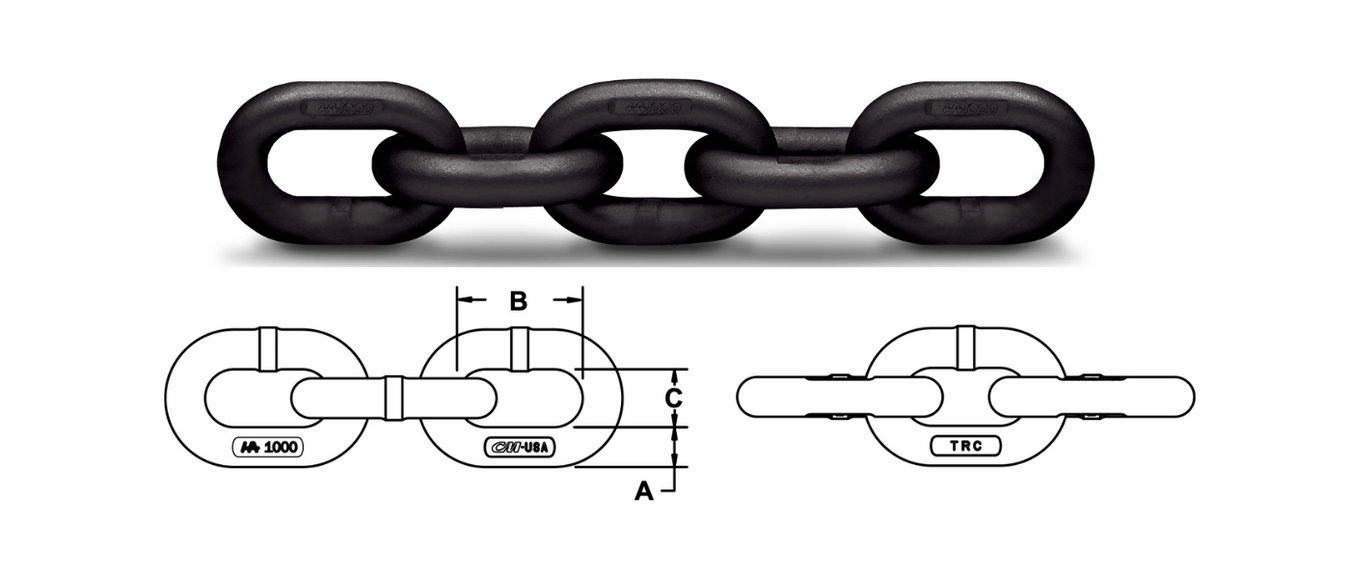

Chain Size (in.) Working Load Limit (lbs.) A (in.) B (in.) C (in.) Price Quantity
9/32 4,300 0.28 0.88 0.40 $4.33
5/16 5,700 0.32 1.02 0.49 $5.73
3/8 8,800 0.41 1.25 0.56 $6.10
1/2 15,000 0.53 1.56 0.72 $11.31
5/8 22,600 0.64 1.92 0.84 $16.47
3/4 35,300 0.81 2.40 1.05 $47.57

Products

Chain Size (in.): 9/32
Working Load Limit (lbs.): 4,300
A (in.): 0.28
B (in.): 0.88
C (in.): 0.40
Price:$4.33
Chain Size (in.): 5/16
Working Load Limit (lbs.): 5,700
A (in.): 0.32
B (in.): 1.02
C (in.): 0.49
Price:$5.73
Chain Size (in.): 3/8
Working Load Limit (lbs.): 8,800
A (in.): 0.41
B (in.): 1.25
C (in.): 0.56
Price:$6.10
Chain Size (in.): 1/2
Working Load Limit (lbs.): 15,000
A (in.): 0.53
B (in.): 1.56
C (in.): 0.72
Price:$11.31
Chain Size (in.): 5/8
Working Load Limit (lbs.): 22,600
A (in.): 0.64
B (in.): 1.92
C (in.): 0.84
Price:$16.47
Chain Size (in.): 3/4
Working Load Limit (lbs.): 35,300
A (in.): 0.81
B (in.): 2.40
C (in.): 1.05
Price:$47.57
