Harrington CF Hand Chain Hoist

Harrington's CF hoist exemplifies simplicity in design while making zero compromises on performance. Outstanding durability is due to a die-cast aluminum body and high-strength, heat-treated main pinion shaft and load gear. Pre-lubricated ball bearings, precision machined gears, and Weston-style load brake make lifting smooth and easy while allowing long service and low maintenance.

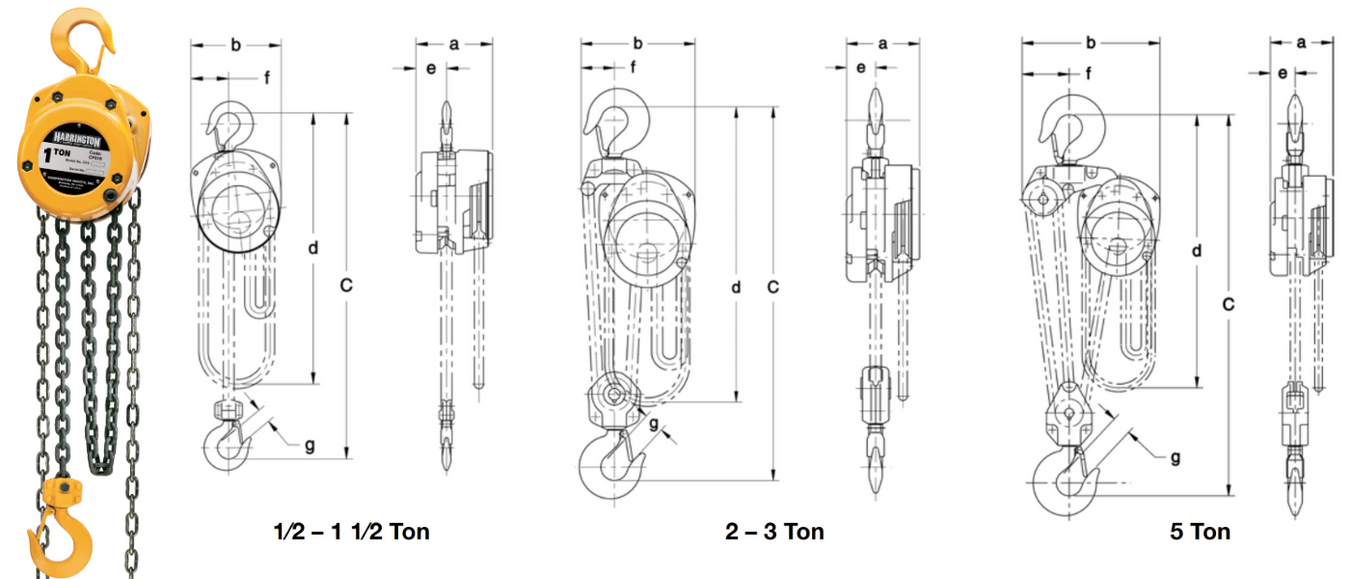

Capacity (Tons) MPN Headroom C (in.) Length (ft.) Pull to Lift Load (lbs.) Overhaul Raio A (in.) B (in.) D (in.) E (in.) F (in.) G (in.) Load Chain Diameter (mm) x Chain Fall Lines Price Quantity
1/2 CF005-10 12.8 10 60 19 5.4 5.9 10 2.0 2.4 1.1 5.0 x 1 $339.92
1/2 CF005-15 12.8 15 60 19 5.4 5.9 15 2.0 2.4 1.1 5.0 x 1 $418.18
1/2 CF005-20 12.8 20 60 19 5.4 5.9 20 2.0 2.4 1.1 5.0 x 1 $526.80
1 CF010-10 14.6 10 72 31 5.8 6.9 10 2.3 2.9 1.1 6.3 x 1 $526.80
1 CF010-15 14.6 15 72 31 5.8 6.9 15 2.3 2.9 1.1 6.3 x 1 $494.47
1 CF010-20 14.6 20 72 31 5.8 6.9 20 2.3 2.9 1.1 6.3 x 1 $636.37
1-1/2 CF015-10 17.3 10 84 41 6.0 8.0 10 2.4 3.4 1.3 7.1 x 1 $581.71
1-1/2 CF015-15 17.3 15 84 41 6.0 8.0 15 2.4 3.4 1.3 7.1 x 1 $692.67
1-1/2 CF015-20 17.3 20 84 41 6.0 8.0 20 2.4 3.4 1.3 7.1 x 1 $821.16
2 CF020-10 20.1 10 80 63 5.8 8.0 10 2.3 2.3 1.4 6.3 x 2 $681.25
2 CF020-15 20.1 15 80 63 5.8 8.0 15 2.3 2.3 1.4 6.3 x 2 $793.12
2 CF020-20 20.1 20 80 63 5.8 8.0 20 2.3 2.3 1.4 6.3 x 2 $996.80
3 CF030-10 23.2 10 92 81 6.0 9.4 10 2.4 2.7 1.7 7.1 x 2 $1,002.21
3 CF030-15 23.2 15 92 81 6.0 9.4 15 2.4 2.7 1.7 7.1 x 2 $1,178.58
3 CF030-20 23.2 20 92 81 6.0 9.4 20 2.4 2.7 1.7 7.1 x 2 $1,372.49
5 CF050-10 24.4 10 60 134 6.0 13.5 10 2.4 4.5 1.8 7.1 x 3 $1,547.54
5 CF050-15 24.4 15 60 134 6.0 13.5 15 2.4 4.5 1.8 7.1 x 3 $1,798.83
5 CF050-20 24.4 20 60 134 6.0 13.5 20 2.4 4.5 1.8 7.1 x 3 $2,139.54

Products

Capacity (Tons): 1/2
Headroom C (in.): 12.8
Length (ft.): 10
Pull to Lift Load (lbs.): 60
Overhaul Raio: 19
A (in.): 5.4
B (in.): 5.9
D (in.): 10
E (in.): 2.0
F (in.): 2.4
G (in.): 1.1
Load Chain Diameter (mm) x Chain Fall Lines: 5.0 x 1
Price:$339.92
Capacity (Tons): 1/2
Headroom C (in.): 12.8
Length (ft.): 15
Pull to Lift Load (lbs.): 60
Overhaul Raio: 19
A (in.): 5.4
B (in.): 5.9
D (in.): 15
E (in.): 2.0
F (in.): 2.4
G (in.): 1.1
Load Chain Diameter (mm) x Chain Fall Lines: 5.0 x 1
Price:$418.18
Capacity (Tons): 1/2
Headroom C (in.): 12.8
Length (ft.): 20
Pull to Lift Load (lbs.): 60
Overhaul Raio: 19
A (in.): 5.4
B (in.): 5.9
D (in.): 20
E (in.): 2.0
F (in.): 2.4
G (in.): 1.1
Load Chain Diameter (mm) x Chain Fall Lines: 5.0 x 1
Price:$526.80
Capacity (Tons): 1
Headroom C (in.): 14.6
Length (ft.): 10
Pull to Lift Load (lbs.): 72
Overhaul Raio: 31
A (in.): 5.8
B (in.): 6.9
D (in.): 10
E (in.): 2.3
F (in.): 2.9
G (in.): 1.1
Load Chain Diameter (mm) x Chain Fall Lines: 6.3 x 1
Price:$526.80
Capacity (Tons): 1
Headroom C (in.): 14.6
Length (ft.): 15
Pull to Lift Load (lbs.): 72
Overhaul Raio: 31
A (in.): 5.8
B (in.): 6.9
D (in.): 15
E (in.): 2.3
F (in.): 2.9
G (in.): 1.1
Load Chain Diameter (mm) x Chain Fall Lines: 6.3 x 1
Price:$494.47
Capacity (Tons): 1
Headroom C (in.): 14.6
Length (ft.): 20
Pull to Lift Load (lbs.): 72
Overhaul Raio: 31
A (in.): 5.8
B (in.): 6.9
D (in.): 20
E (in.): 2.3
F (in.): 2.9
G (in.): 1.1
Load Chain Diameter (mm) x Chain Fall Lines: 6.3 x 1
Price:$636.37
Capacity (Tons): 1-1/2
Headroom C (in.): 17.3
Length (ft.): 10
Pull to Lift Load (lbs.): 84
Overhaul Raio: 41
A (in.): 6.0
B (in.): 8.0
D (in.): 10
E (in.): 2.4
F (in.): 3.4
G (in.): 1.3
Load Chain Diameter (mm) x Chain Fall Lines: 7.1 x 1
Price:$581.71
Capacity (Tons): 1-1/2
Headroom C (in.): 17.3
Length (ft.): 15
Pull to Lift Load (lbs.): 84
Overhaul Raio: 41
A (in.): 6.0
B (in.): 8.0
D (in.): 15
E (in.): 2.4
F (in.): 3.4
G (in.): 1.3
Load Chain Diameter (mm) x Chain Fall Lines: 7.1 x 1
Price:$692.67
Capacity (Tons): 1-1/2
Headroom C (in.): 17.3
Length (ft.): 20
Pull to Lift Load (lbs.): 84
Overhaul Raio: 41
A (in.): 6.0
B (in.): 8.0
D (in.): 20
E (in.): 2.4
F (in.): 3.4
G (in.): 1.3
Load Chain Diameter (mm) x Chain Fall Lines: 7.1 x 1
Price:$821.16
Capacity (Tons): 2
Headroom C (in.): 20.1
Length (ft.): 10
Pull to Lift Load (lbs.): 80
Overhaul Raio: 63
A (in.): 5.8
B (in.): 8.0
D (in.): 10
E (in.): 2.3
F (in.): 2.3
G (in.): 1.4
Load Chain Diameter (mm) x Chain Fall Lines: 6.3 x 2
Price:$681.25
Capacity (Tons): 2
Headroom C (in.): 20.1
Length (ft.): 15
Pull to Lift Load (lbs.): 80
Overhaul Raio: 63
A (in.): 5.8
B (in.): 8.0
D (in.): 15
E (in.): 2.3
F (in.): 2.3
G (in.): 1.4
Load Chain Diameter (mm) x Chain Fall Lines: 6.3 x 2
Price:$793.12
Capacity (Tons): 2
Headroom C (in.): 20.1
Length (ft.): 20
Pull to Lift Load (lbs.): 80
Overhaul Raio: 63
A (in.): 5.8
B (in.): 8.0
D (in.): 20
E (in.): 2.3
F (in.): 2.3
G (in.): 1.4
Load Chain Diameter (mm) x Chain Fall Lines: 6.3 x 2
Price:$996.80
Capacity (Tons): 3
Headroom C (in.): 23.2
Length (ft.): 10
Pull to Lift Load (lbs.): 92
Overhaul Raio: 81
A (in.): 6.0
B (in.): 9.4
D (in.): 10
E (in.): 2.4
F (in.): 2.7
G (in.): 1.7
Load Chain Diameter (mm) x Chain Fall Lines: 7.1 x 2
Price:$1,002.21
Capacity (Tons): 3
Headroom C (in.): 23.2
Length (ft.): 15
Pull to Lift Load (lbs.): 92
Overhaul Raio: 81
A (in.): 6.0
B (in.): 9.4
D (in.): 15
E (in.): 2.4
F (in.): 2.7
G (in.): 1.7
Load Chain Diameter (mm) x Chain Fall Lines: 7.1 x 2
Price:$1,178.58
Capacity (Tons): 3
Headroom C (in.): 23.2
Length (ft.): 20
Pull to Lift Load (lbs.): 92
Overhaul Raio: 81
A (in.): 6.0
B (in.): 9.4
D (in.): 20
E (in.): 2.4
F (in.): 2.7
G (in.): 1.7
Load Chain Diameter (mm) x Chain Fall Lines: 7.1 x 2
Price:$1,372.49
Capacity (Tons): 5
Headroom C (in.): 24.4
Length (ft.): 10
Pull to Lift Load (lbs.): 60
Overhaul Raio: 134
A (in.): 6.0
B (in.): 13.5
D (in.): 10
E (in.): 2.4
F (in.): 4.5
G (in.): 1.8
Load Chain Diameter (mm) x Chain Fall Lines: 7.1 x 3
Price:$1,547.54
Capacity (Tons): 5
Headroom C (in.): 24.4
Length (ft.): 15
Pull to Lift Load (lbs.): 60
Overhaul Raio: 134
A (in.): 6.0
B (in.): 13.5
D (in.): 15
E (in.): 2.4
F (in.): 4.5
G (in.): 1.8
Load Chain Diameter (mm) x Chain Fall Lines: 7.1 x 3
Price:$1,798.83
Capacity (Tons): 5
Headroom C (in.): 24.4
Length (ft.): 20
Pull to Lift Load (lbs.): 60
Overhaul Raio: 134
A (in.): 6.0
B (in.): 13.5
D (in.): 20
E (in.): 2.4
F (in.): 4.5
G (in.): 1.8
Load Chain Diameter (mm) x Chain Fall Lines: 7.1 x 3
Price:$2,139.54
