Lifting Clutches

Description

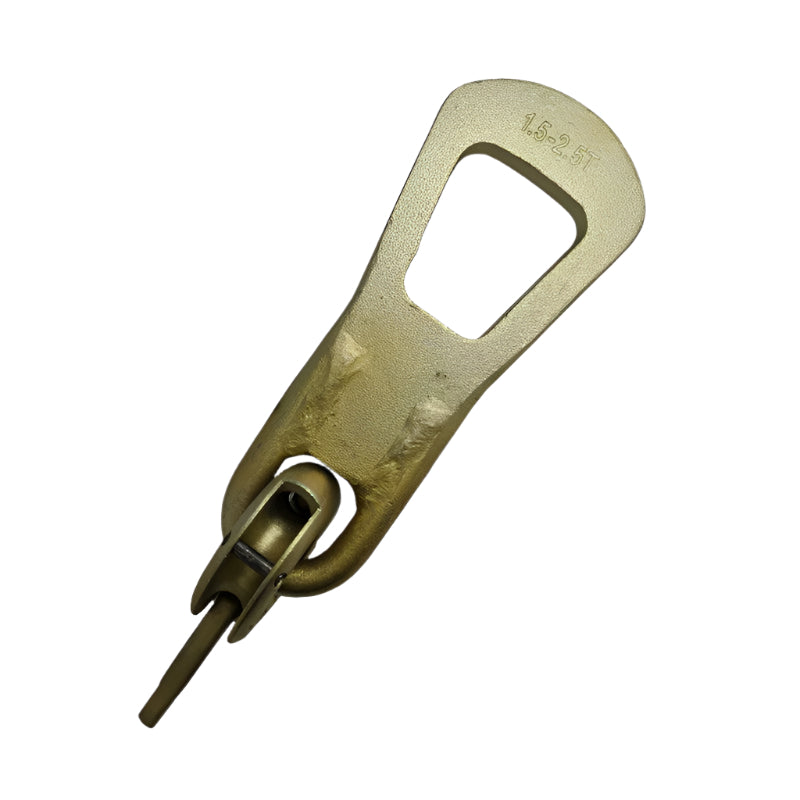

The Precast Dog Bone Lifting Eye/Clutch is a high-quality robust lifting key in the spherical head anchor system. It is used in combination with the cast in concrete lifting transport anchors. The anchor heads are simply "threaded" through the slot groove to create a secure connection between the anchor and the lifting key. The attachment process is greatly reduced compared to other systems.

Long-lasting and economical
Clear labeling for safety
Can be used for parallel and transversal shear loads

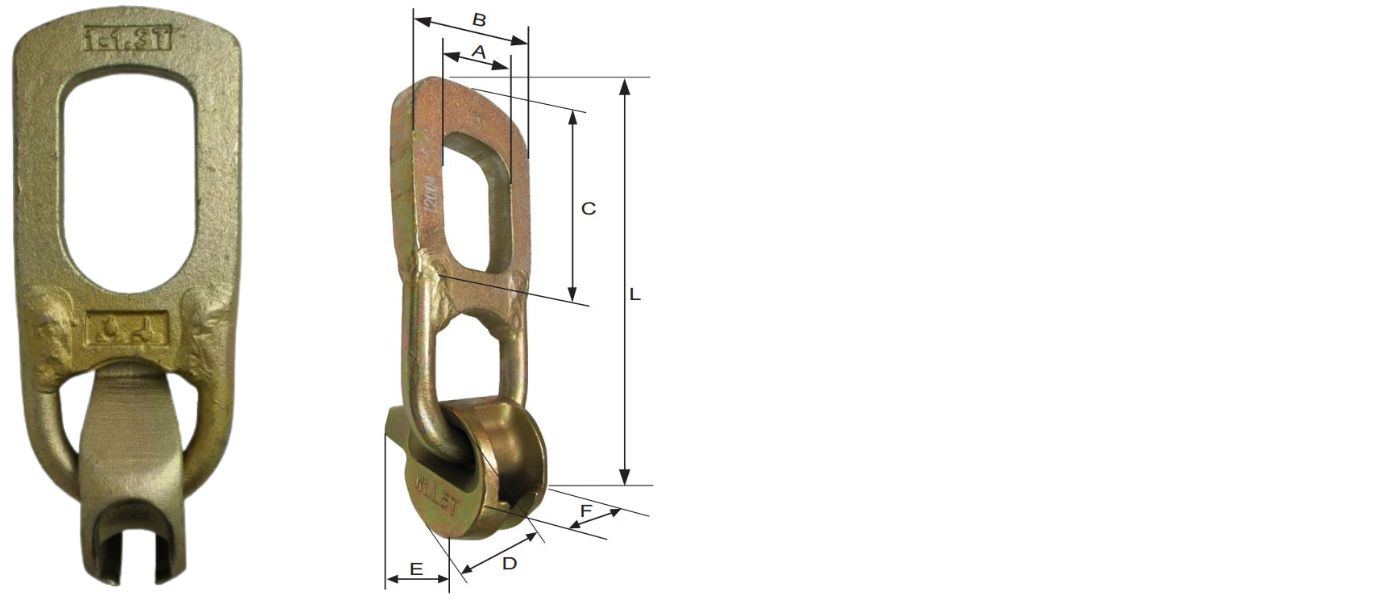

Working Load Limit (ton)	A (in.)	B (in.)	C (in.)	D (in.)	E (in.)	F (in.)	L (in)	Price	Quantity
1-1.3 ton Precast Dog Bone Lifting Eye/Clutch	1-1.3	1.87	2.95	2.80	2.20	2.17	1.30	6.48	$213.79

1.5-2.5 tons Precast Dog Bone Lifting Eye/Clutch	1.5-2.5	2.52	3.86	3.35	2.68	2.76	1.65	8.09	$203.11

3-5 tons Precast Dog Bone Lifting Eye/Clutch	3-5	2.76	4.65	3.45	3.46	3.39	2.24	9.33	$359.58

6-10 tons Precast Dog Bone Lifting Eye/Clutch	6-10	3.74	10.24	4.76	4.41	4.61	2.87	13.72	$688.96

12-20 tons Precast Dog Bone Lifting Eye/Clutch	12-20	4.65	7.32	5.91	5.98	6.10	4.33	17.36	$1,550.17

Products

Working Load Limit (ton): 1-1.3

A (in.): 1.87

B (in.): 2.95

C (in.): 2.80

D (in.): 2.20

E (in.): 2.17

F (in.): 1.30

L (in): 6.48

Price:$213.79

Working Load Limit (ton): 1.5-2.5

A (in.): 2.52

B (in.): 3.86

C (in.): 3.35

D (in.): 2.68

E (in.): 2.76

F (in.): 1.65

L (in): 8.09

Price:$203.11

Working Load Limit (ton): 3-5

A (in.): 2.76

B (in.): 4.65

C (in.): 3.45

D (in.): 3.46

E (in.): 3.39

F (in.): 2.24

L (in): 9.33

Price:$359.58

Working Load Limit (ton): 6-10

A (in.): 3.74

B (in.): 10.24

C (in.): 4.76

D (in.): 4.41

E (in.): 4.61

F (in.): 2.87

L (in): 13.72

Price:$688.96

Working Load Limit (ton): 12-20

A (in.): 4.65

B (in.): 7.32

C (in.): 5.91

D (in.): 5.98

E (in.): 6.10

F (in.): 4.33

L (in): 17.36

Price:$1,550.17
