Lifting Rings

Material: Alloy Steel
Finish: Black Oxide|Cadmium Plated
Inspected: Magnetic Particle Inspected
Heat Treat: Certified Heat Treatment

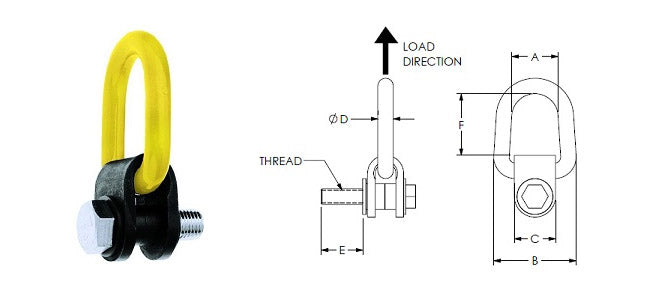

Units MPN Rated Load Thread Size A B C D Thread Protrusion - (E) F Torque Weight (lbs) Type Color Price Quantity
Inch 43700 5000 kg M30 x 3.50 1 1/2 in 3.2 in 1 1/2 in 1 1/8 in 0.75 in 2.6 in 7 ft-lbs 1.7 lbs D Ring Yellow
$123.79
Inch 43705 800 lbs 3/8" - 16 1 1/2 in 3.2 in 1 1/2 in 5/8 in 0.75 in 2.6 in 12 ft-lbs 1.8 lbs D Ring Yellow
$123.79
Inch 43710 2000 lbs 1/2" - 13 1 1/2 in 3.2 in 1 1/2 in 5/8 in 1.25 in 2.6 in 28 ft-lbs 2 lbs D Ring Yellow
$154.77
Inch 43720 2500 lbs 5/8" - 11 1 1/2 in 3.2 in 1 1/2 in 5/8 in 1.25 in 2.6 in 60 ft-lbs 2 lbs D Ring Yellow
$154.77
Inch 43730 5000 lbs 3/4" - 10 2 1/4 in 4 in 2 in 3/4 in 2 in 3 in 100 ft-lbs 3.5 lbs D Ring Yellow
$332.74
Inch 43740 6500 lbs 7/8" - 9 2 1/4 in 4 in 2 in 3/4 in 2 in 3 in 160 ft-lbs 4 lbs D Ring Yellow
$332.74
Inch 43750 7000 lbs 1" - 8 2 1/4 in 4 in 2 in 3/4 in 2 in 3 in 230 ft-lbs 4 lbs D Ring Yellow
$332.74
Inch 43760 12000 lbs 1 1/4" - 7 3 1/4 in 6 in 3 in 1 1/8 in 2.5 in 3.9in 470 ft-lbs 11 lbs D Ring Yellow
$503.01
Inch 43770 15000 lbs 1 1/2" - 6 3 1/4 in 6 in 3 in 1 1/8 in 3 in 3.9in 800 ft-lbs 13 lbs D Ring Yellow
$572.66
Inch 43711 2000 lbs 1/2" - 13 1 1/2 in 3.2 in 1 1/2 in 5/8 in 1.25 in 3.6 in 28 ft-lbs 2 lbs Long D-Ring Yellow
$170.24
Inch 43721 2500 lbs 5/8" - 11 1 1/2 in 3.2 in 1 1/2 in 5/8 in 1.25 in 3.6 in 60 ft-lbs 2 lbs Long D-Ring Yellow
$170.24
Inch 43731 5000 lbs 3/4" - 10 2 1/4 in 4 in 2 in 3/4 in 2 in 4 in 100 ft-lbs 3.5 lbs Long D-Ring Yellow
$348.24
Inch 43741 6500 lbs 7/8" - 9 2 1/4 in 4 in 2 in 3/4 in 2 in 4 in 160 ft-lbs 4 lbs Long D-Ring Yellow
$348.24
Inch 43751 7000 lbs 1" - 8 2 1/4 in 4 in 2 in 3/4 in 2 in 4 in 230 ft-lbs 4 lbs Long D-Ring Yellow
$348.24
Inch 43761 12000 lbs 1 1/4" - 7 3 1/4 in 6 in 3 in 1 1/8 in 2.5 in 5.4 in 470 ft-lbs 11 lbs Long D-Ring Yellow
$518.48
Inch 43771 15000 lbs 1 1/2" - 6 3 1/4 in 6 in 3 in 1 1/8 in 3 in 5.4 in 800 ft-lbs 13 lbs Long D-Ring Yellow
$588.13
Metric 43900 300 kg M8 x 1.25 1 1/2 in 3.2 in 1 1/2 in 5/8 in 25 mm 2.6 in 0.86 kg-m 1.7 lbs D Ring Blue
$147.02
Metric 43905 400 kg M10 x 1.50 1 1/2 in 3.2 in 1 1/2 in 5/8 in 25 mm 2.6 in 1.5 kg-m 1.8 lbs D Ring Blue
$147.02
Metric 43910 1000 kg M12 x 1.75 1 1/2 in 3.2 in 1 1/2 in 5/8 in 35 mm 2.6 in 3.7 kg-m 2 lbs D Ring Blue
$177.97
Metric 43911 1000 kg M12 x 1.75 1 1/2 in 3.2 in 1 1/2 in 5/8 in 35 mm 3.6 in 3.7 kg-m 2 lbs Long D-Ring Blue
$193.44
Metric 43920 1050 kg M16 x 2.00 1 1/2 in 3.2 in 1 1/2 in 5/8 in 35 mm 2.6 in 8.4 kg-m 2 lbs D Ring Blue
$177.97
Metric 43921 1050 kg M16 x 2.00 1 1/2 in 3.2 in 1 1/2 in 5/8 in 35 mm 3.6 in 8.4 kg-m 2 lbs Long D-Ring Blue
$193.44
Metric 43930 2150 kg M20 x 2.50 2 1/4 in 4 in 2 in 3/4 in 45 mm 3 in 14 kg-m 3.5 lbs D Ring Blue
$355.98
Metric 43931 2150 kg M20 x 2.50 2 1/4 in 4 in 2 in 3/4 in 45 mm 4 in 14 kg-m 3.5 lbs Long D-Ring Blue
$371.46
Metric 43940 3000 kg M24 x 3.00 2 1/4 in 4 in 2 in 3/4 in 50 mm 3 in 31 kg-m 3.7 lbs D Ring Blue
$355.98
Metric 43941 3000 kg M24 x 3.00 2 1/4 in 4 in 2 in 3/4 in 50 mm 4 in 31 kg-m 3.7 lbs Long D-Ring Blue
$371.46
Metric 43950 5000 kg M30 x 3.50 3 1/4 in 6 in 3 in 1 1/8 in 70 mm 3.9in 60 kg-m 11 lbs D Ring Blue
$526.22
Metric 43951 5000 kg M30 x 3.50 3 1/4 in 6 in 3 in 1 1/8 in 70 mm 5.4 in 60 kg-m 11 lbs Long D-Ring Blue
$541.70
Metric 43960 7000 kg M36 x 4.00 3 1/4 in 6 in 3 in 1 1/8 in 70 mm 3.9in 100 kg-m 13 lbs D Ring Blue
$595.87
Metric 43961 7000 kg M36 x 4.00 3 1/4 in 6 in 3 in 1 1/8 in 70 mm 5.4 in 100 kg-m 13 lbs Long D-Ring Blue
$611.34

Products

Units: Inch
MPN: 43700
Rated Load: 5000 kg
Thread Size: M30 x 3.50
A: 1 1/2 in
B: 3.2 in
C: 1 1/2 in
D: 1 1/8 in
Thread Protrusion - (E): 0.75 in
F: 2.6 in
Torque : 7 ft-lbs
Weight (lbs): 1.7 lbs
Type: D Ring
Color:
Yellow
Price:$123.79
Units: Inch
MPN: 43705
Rated Load: 800 lbs
Thread Size: 3/8" - 16
A: 1 1/2 in
B: 3.2 in
C: 1 1/2 in
D: 5/8 in
Thread Protrusion - (E): 0.75 in
F: 2.6 in
Torque : 12 ft-lbs
Weight (lbs): 1.8 lbs
Type: D Ring
Color:
Yellow
Price:$123.79
Units: Inch
MPN: 43710
Rated Load: 2000 lbs
Thread Size: 1/2" - 13
A: 1 1/2 in
B: 3.2 in
C: 1 1/2 in
D: 5/8 in
Thread Protrusion - (E): 1.25 in
F: 2.6 in
Torque : 28 ft-lbs
Weight (lbs): 2 lbs
Type: D Ring
Color:
Yellow
Price:$154.77
Units: Inch
MPN: 43720
Rated Load: 2500 lbs
Thread Size: 5/8" - 11
A: 1 1/2 in
B: 3.2 in
C: 1 1/2 in
D: 5/8 in
Thread Protrusion - (E): 1.25 in
F: 2.6 in
Torque : 60 ft-lbs
Weight (lbs): 2 lbs
Type: D Ring
Color:
Yellow
Price:$154.77
Units: Inch
MPN: 43730
Rated Load: 5000 lbs
Thread Size: 3/4" - 10
A: 2 1/4 in
B: 4 in
C: 2 in
D: 3/4 in
Thread Protrusion - (E): 2 in
F: 3 in
Torque : 100 ft-lbs
Weight (lbs): 3.5 lbs
Type: D Ring
Color:
Yellow
Price:$332.74
Units: Inch
MPN: 43740
Rated Load: 6500 lbs
Thread Size: 7/8" - 9
A: 2 1/4 in
B: 4 in
C: 2 in
D: 3/4 in
Thread Protrusion - (E): 2 in
F: 3 in
Torque : 160 ft-lbs
Weight (lbs): 4 lbs
Type: D Ring
Color:
Yellow
Price:$332.74
Units: Inch
MPN: 43750
Rated Load: 7000 lbs
Thread Size: 1" - 8
A: 2 1/4 in
B: 4 in
C: 2 in
D: 3/4 in
Thread Protrusion - (E): 2 in
F: 3 in
Torque : 230 ft-lbs
Weight (lbs): 4 lbs
Type: D Ring
Color:
Yellow
Price:$332.74
Units: Inch
MPN: 43760
Rated Load: 12000 lbs
Thread Size: 1 1/4" - 7
A: 3 1/4 in
B: 6 in
C: 3 in
D: 1 1/8 in
Thread Protrusion - (E): 2.5 in
F: 3.9in
Torque : 470 ft-lbs
Weight (lbs): 11 lbs
Type: D Ring
Color:
Yellow
Price:$503.01
Units: Inch
MPN: 43770
Rated Load: 15000 lbs
Thread Size: 1 1/2" - 6
A: 3 1/4 in
B: 6 in
C: 3 in
D: 1 1/8 in
Thread Protrusion - (E): 3 in
F: 3.9in
Torque : 800 ft-lbs
Weight (lbs): 13 lbs
Type: D Ring
Color:
Yellow
Price:$572.66
Units: Inch
MPN: 43711
Rated Load: 2000 lbs
Thread Size: 1/2" - 13
A: 1 1/2 in
B: 3.2 in
C: 1 1/2 in
D: 5/8 in
Thread Protrusion - (E): 1.25 in
F: 3.6 in
Torque : 28 ft-lbs
Weight (lbs): 2 lbs
Type: Long D-Ring
Color:
Yellow
Price:$170.24
Units: Inch
MPN: 43721
Rated Load: 2500 lbs
Thread Size: 5/8" - 11
A: 1 1/2 in
B: 3.2 in
C: 1 1/2 in
D: 5/8 in
Thread Protrusion - (E): 1.25 in
F: 3.6 in
Torque : 60 ft-lbs
Weight (lbs): 2 lbs
Type: Long D-Ring
Color:
Yellow
Price:$170.24
Units: Inch
MPN: 43731
Rated Load: 5000 lbs
Thread Size: 3/4" - 10
A: 2 1/4 in
B: 4 in
C: 2 in
D: 3/4 in
Thread Protrusion - (E): 2 in
F: 4 in
Torque : 100 ft-lbs
Weight (lbs): 3.5 lbs
Type: Long D-Ring
Color:
Yellow
Price:$348.24
Units: Inch
MPN: 43741
Rated Load: 6500 lbs
Thread Size: 7/8" - 9
A: 2 1/4 in
B: 4 in
C: 2 in
D: 3/4 in
Thread Protrusion - (E): 2 in
F: 4 in
Torque : 160 ft-lbs
Weight (lbs): 4 lbs
Type: Long D-Ring
Color:
Yellow
Price:$348.24
Units: Inch
MPN: 43751
Rated Load: 7000 lbs
Thread Size: 1" - 8
A: 2 1/4 in
B: 4 in
C: 2 in
D: 3/4 in
Thread Protrusion - (E): 2 in
F: 4 in
Torque : 230 ft-lbs
Weight (lbs): 4 lbs
Type: Long D-Ring
Color:
Yellow
Price:$348.24
Units: Inch
MPN: 43761
Rated Load: 12000 lbs
Thread Size: 1 1/4" - 7
A: 3 1/4 in
B: 6 in
C: 3 in
D: 1 1/8 in
Thread Protrusion - (E): 2.5 in
F: 5.4 in
Torque : 470 ft-lbs
Weight (lbs): 11 lbs
Type: Long D-Ring
Color:
Yellow
Price:$518.48
Units: Inch
MPN: 43771
Rated Load: 15000 lbs
Thread Size: 1 1/2" - 6
A: 3 1/4 in
B: 6 in
C: 3 in
D: 1 1/8 in
Thread Protrusion - (E): 3 in
F: 5.4 in
Torque : 800 ft-lbs
Weight (lbs): 13 lbs
Type: Long D-Ring
Color:
Yellow
Price:$588.13
Units: Metric
MPN: 43900
Rated Load: 300 kg
Thread Size: M8 x 1.25
A: 1 1/2 in
B: 3.2 in
C: 1 1/2 in
D: 5/8 in
Thread Protrusion - (E): 25 mm
F: 2.6 in
Torque : 0.86 kg-m
Weight (lbs): 1.7 lbs
Type: D Ring
Color:
Blue
Price:$147.02
Units: Metric
MPN: 43905
Rated Load: 400 kg
Thread Size: M10 x 1.50
A: 1 1/2 in
B: 3.2 in
C: 1 1/2 in
D: 5/8 in
Thread Protrusion - (E): 25 mm
F: 2.6 in
Torque : 1.5 kg-m
Weight (lbs): 1.8 lbs
Type: D Ring
Color:
Blue
Price:$147.02
Units: Metric
MPN: 43910
Rated Load: 1000 kg
Thread Size: M12 x 1.75
A: 1 1/2 in
B: 3.2 in
C: 1 1/2 in
D: 5/8 in
Thread Protrusion - (E): 35 mm
F: 2.6 in
Torque : 3.7 kg-m
Weight (lbs): 2 lbs
Type: D Ring
Color:
Blue
Price:$177.97
Units: Metric
MPN: 43911
Rated Load: 1000 kg
Thread Size: M12 x 1.75
A: 1 1/2 in
B: 3.2 in
C: 1 1/2 in
D: 5/8 in
Thread Protrusion - (E): 35 mm
F: 3.6 in
Torque : 3.7 kg-m
Weight (lbs): 2 lbs
Type: Long D-Ring
Color:
Blue
Price:$193.44
Units: Metric
MPN: 43920
Rated Load: 1050 kg
Thread Size: M16 x 2.00
A: 1 1/2 in
B: 3.2 in
C: 1 1/2 in
D: 5/8 in
Thread Protrusion - (E): 35 mm
F: 2.6 in
Torque : 8.4 kg-m
Weight (lbs): 2 lbs
Type: D Ring
Color:
Blue
Price:$177.97
Units: Metric
MPN: 43921
Rated Load: 1050 kg
Thread Size: M16 x 2.00
A: 1 1/2 in
B: 3.2 in
C: 1 1/2 in
D: 5/8 in
Thread Protrusion - (E): 35 mm
F: 3.6 in
Torque : 8.4 kg-m
Weight (lbs): 2 lbs
Type: Long D-Ring
Color:
Blue
Price:$193.44
Units: Metric
MPN: 43930
Rated Load: 2150 kg
Thread Size: M20 x 2.50
A: 2 1/4 in
B: 4 in
C: 2 in
D: 3/4 in
Thread Protrusion - (E): 45 mm
F: 3 in
Torque : 14 kg-m
Weight (lbs): 3.5 lbs
Type: D Ring
Color:
Blue
Price:$355.98
Units: Metric
MPN: 43931
Rated Load: 2150 kg
Thread Size: M20 x 2.50
A: 2 1/4 in
B: 4 in
C: 2 in
D: 3/4 in
Thread Protrusion - (E): 45 mm
F: 4 in
Torque : 14 kg-m
Weight (lbs): 3.5 lbs
Type: Long D-Ring
Color:
Blue
Price:$371.46
Units: Metric
MPN: 43940
Rated Load: 3000 kg
Thread Size: M24 x 3.00
A: 2 1/4 in
B: 4 in
C: 2 in
D: 3/4 in
Thread Protrusion - (E): 50 mm
F: 3 in
Torque : 31 kg-m
Weight (lbs): 3.7 lbs
Type: D Ring
Color:
Blue
Price:$355.98
Units: Metric
MPN: 43941
Rated Load: 3000 kg
Thread Size: M24 x 3.00
A: 2 1/4 in
B: 4 in
C: 2 in
D: 3/4 in
Thread Protrusion - (E): 50 mm
F: 4 in
Torque : 31 kg-m
Weight (lbs): 3.7 lbs
Type: Long D-Ring
Color:
Blue
Price:$371.46
Units: Metric
MPN: 43950
Rated Load: 5000 kg
Thread Size: M30 x 3.50
A: 3 1/4 in
B: 6 in
C: 3 in
D: 1 1/8 in
Thread Protrusion - (E): 70 mm
F: 3.9in
Torque : 60 kg-m
Weight (lbs): 11 lbs
Type: D Ring
Color:
Blue
Price:$526.22
Units: Metric
MPN: 43951
Rated Load: 5000 kg
Thread Size: M30 x 3.50
A: 3 1/4 in
B: 6 in
C: 3 in
D: 1 1/8 in
Thread Protrusion - (E): 70 mm
F: 5.4 in
Torque : 60 kg-m
Weight (lbs): 11 lbs
Type: Long D-Ring
Color:
Blue
Price:$541.70
Units: Metric
MPN: 43960
Rated Load: 7000 kg
Thread Size: M36 x 4.00
A: 3 1/4 in
B: 6 in
C: 3 in
D: 1 1/8 in
Thread Protrusion - (E): 70 mm
F: 3.9in
Torque : 100 kg-m
Weight (lbs): 13 lbs
Type: D Ring
Color:
Blue
Price:$595.87
Units: Metric
MPN: 43961
Rated Load: 7000 kg
Thread Size: M36 x 4.00
A: 3 1/4 in
B: 6 in
C: 3 in
D: 1 1/8 in
Thread Protrusion - (E): 70 mm
F: 5.4 in
Torque : 100 kg-m
Weight (lbs): 13 lbs
Type: Long D-Ring
Color:
Blue
Price:$611.34
