Harrington LX Mini Lever Hoist

Harrington’s LX mini puller is lightweight, compact and built to perform. It fits conveniently in a toolbox and will easily handle pulling and moving jobs in many applications including transportation, construction and plumbing.

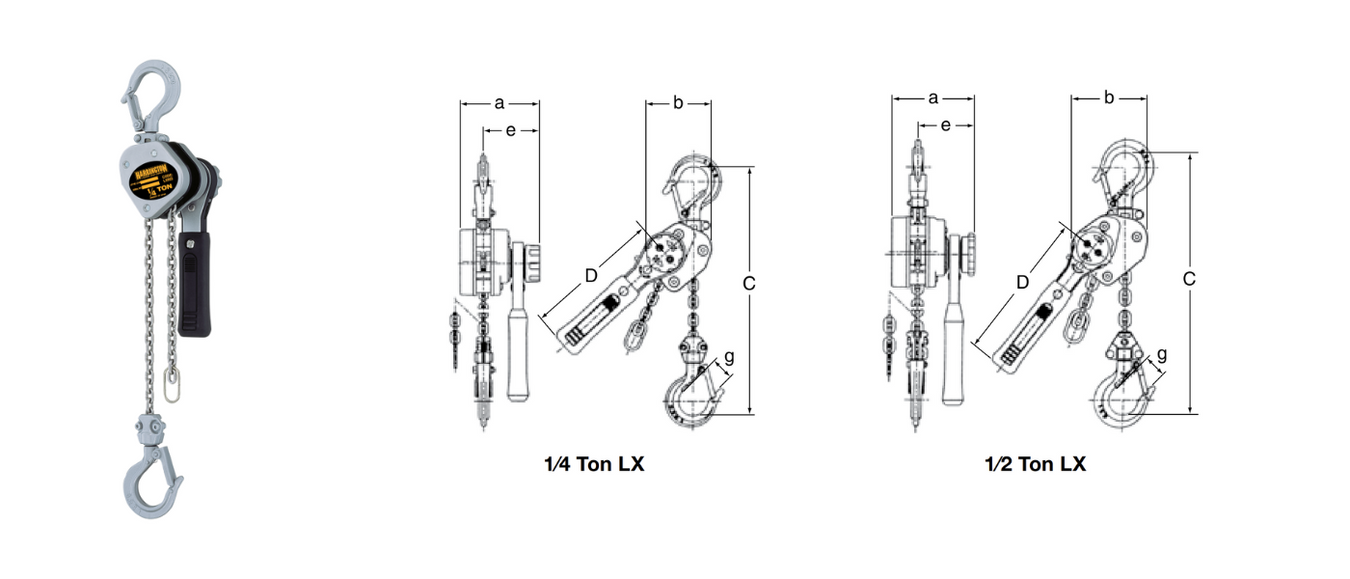

Capacity (Tons) MPN Headroom C (in.) Length (ft.) Pull to Lift Load (lbs.) A (in.) B (in.) D (in.) E (in.) G (in.) Load Chain Diameter (mm) x Chain Fall Lines Price Quantity
1/4 LX003-10 8.1 10 40 3.4 2.9 5.9 2.4 0.8 3.2 x 1 $425.07
1/4 LX003-15 8.1 15 40 3.4 2.9 5.9 2.4 0.8 3.2 x 1 $426.06
1/4 LX003-20 8.1 20 40 3.4 2.9 5.9 2.4 0.8 3.2 x 1 $473.20
1/2 LX003-10 9.7 10 62 3.9 3.7 7.1 2.6 0.9 4.3 x 1 $526.42
1/2 LX003-15 9.7 15 62 3.9 3.7 7.1 2.6 0.9 4.3 x 1 $578.64
1/2 LX003-20 9.7 20 62 3.9 3.7 7.1 2.6 0.9 4.3 x 1 $630.86

Products

Capacity (Tons): 1/4
Headroom C (in.): 8.1
Length (ft.): 10
Pull to Lift Load (lbs.): 40
A (in.): 3.4
B (in.): 2.9
D (in.): 5.9
E (in.): 2.4
G (in.): 0.8
Load Chain Diameter (mm) x Chain Fall Lines: 3.2 x 1
Price:$425.07
Capacity (Tons): 1/4
Headroom C (in.): 8.1
Length (ft.): 15
Pull to Lift Load (lbs.): 40
A (in.): 3.4
B (in.): 2.9
D (in.): 5.9
E (in.): 2.4
G (in.): 0.8
Load Chain Diameter (mm) x Chain Fall Lines: 3.2 x 1
Price:$426.06
Capacity (Tons): 1/4
Headroom C (in.): 8.1
Length (ft.): 20
Pull to Lift Load (lbs.): 40
A (in.): 3.4
B (in.): 2.9
D (in.): 5.9
E (in.): 2.4
G (in.): 0.8
Load Chain Diameter (mm) x Chain Fall Lines: 3.2 x 1
Price:$473.20
Capacity (Tons): 1/2
Headroom C (in.): 9.7
Length (ft.): 10
Pull to Lift Load (lbs.): 62
A (in.): 3.9
B (in.): 3.7
D (in.): 7.1
E (in.): 2.6
G (in.): 0.9
Load Chain Diameter (mm) x Chain Fall Lines: 4.3 x 1
Price:$526.42
Capacity (Tons): 1/2
Headroom C (in.): 9.7
Length (ft.): 15
Pull to Lift Load (lbs.): 62
A (in.): 3.9
B (in.): 3.7
D (in.): 7.1
E (in.): 2.6
G (in.): 0.9
Load Chain Diameter (mm) x Chain Fall Lines: 4.3 x 1
Price:$578.64
Capacity (Tons): 1/2
Headroom C (in.): 9.7
Length (ft.): 20
Pull to Lift Load (lbs.): 62
A (in.): 3.9
B (in.): 3.7
D (in.): 7.1
E (in.): 2.6
G (in.): 0.9
Load Chain Diameter (mm) x Chain Fall Lines: 4.3 x 1
Price:$630.86
