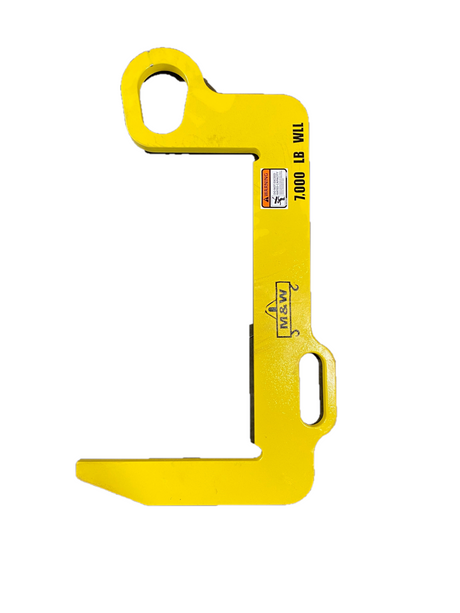

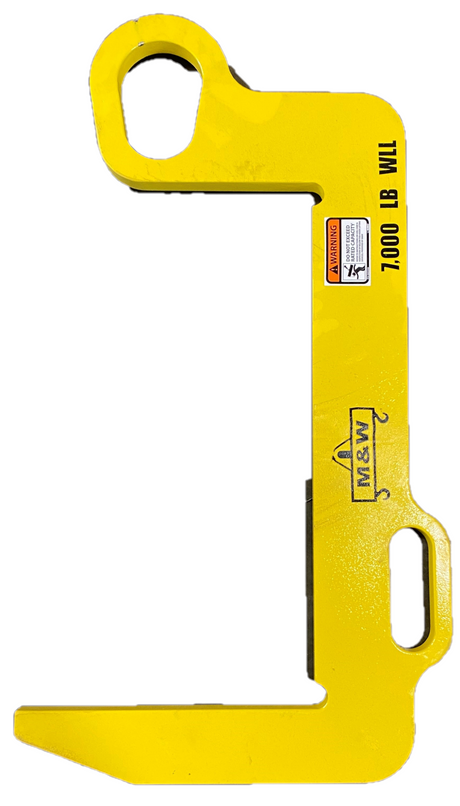

M&W Coil Lifters

  •  Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • All coil lifters proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to warehouse use.
  • Made in U.S.A.
  • Custom designs available - call for engineering.
  • All lifting equipment individually proof loaded per OSHA requirements.
Shackles
Hooks & Fittings
Wire Rope Clips USA
Lifting Clutches/Dog Bones for Precast Concrete
M&W Coil Lifters
Lifting Rings
Shoulder Eye Bolts USA

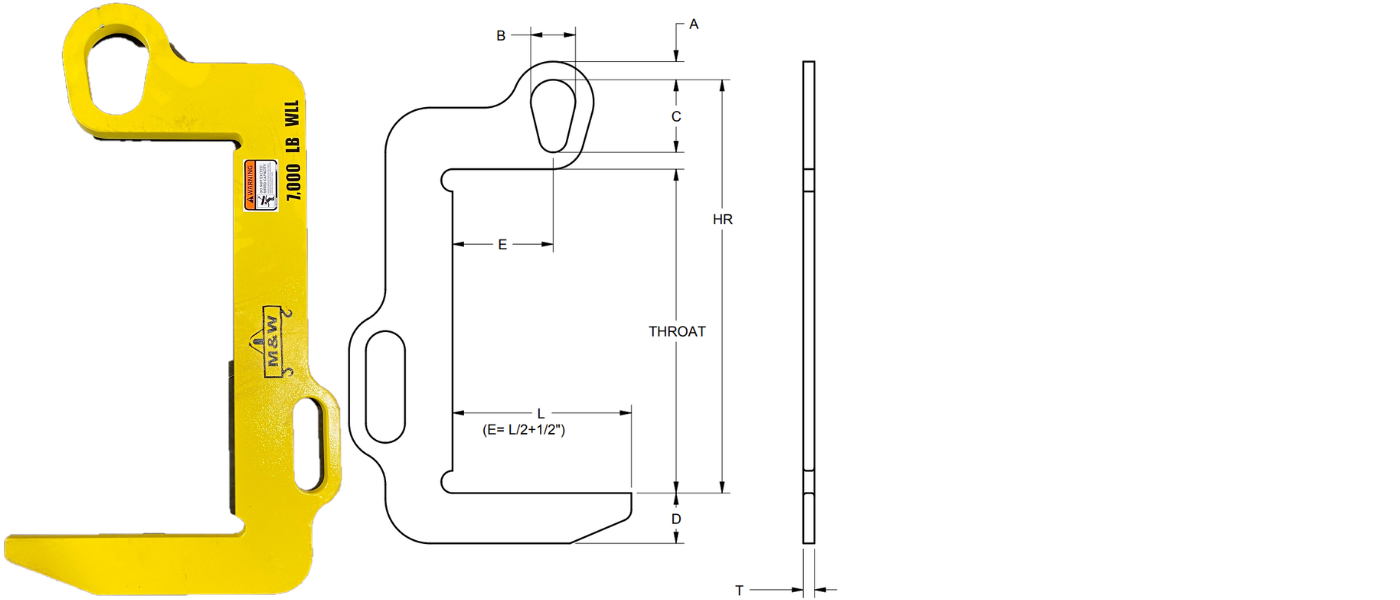

Working Load Limit (lbs.) MPN A (in.) B (in.) C (in.) D (in.) E (in.) L (in.) T (in.) Price Quantity
1,000 14463 0.81 2.00 3.25 2.25 4.5 8.0 0.50 $911.00
1,000 14464 0.81 2.00 3.25 2.63 6.5 12.0 0.50 $1,090.22
2,000 14465 0.81 2.00 3.25 2.00 4.5 8.0 0.50 $955.81
2,000 14466 0.81 2.00 3.25 2.50 8.5 16.0 0.50 $1,209.70
4,000 14467 1.00 2.56 4.06 2.13 4.5 8.0 0.75 $1,254.50
4,000 14468 1.00 2.56 4.06 3.00 8.5 16.0 0.75 $1,523.31
7,000 14469 1.18 3.63 5.31 2.87 6.5 12.0 1.00 $1,612.93
7,000 14470 1.18 3.63 5.31 3.38 8.5 16.0 1.00 $2,090.83
10,000 14471 1.50 4.00 5.81 3.50 8.5 16.0 1.25 $2,822.63
10,000 14472 1.50 4.00 5.81 4.00 10.5 20.0 1.25 $3,330.40

Products

Working Load Limit (lbs.): 1,000
MPN: 14463
A (in.): 0.81
B (in.): 2.00
C (in.): 3.25
D (in.): 2.25
E (in.): 4.5
L (in.): 8.0
T (in.): 0.50
Price:$911.00
Working Load Limit (lbs.): 1,000
MPN: 14464
A (in.): 0.81
B (in.): 2.00
C (in.): 3.25
D (in.): 2.63
E (in.): 6.5
L (in.): 12.0
T (in.): 0.50
Price:$1,090.22
Working Load Limit (lbs.): 2,000
MPN: 14465
A (in.): 0.81
B (in.): 2.00
C (in.): 3.25
D (in.): 2.00
E (in.): 4.5
L (in.): 8.0
T (in.): 0.50
Price:$955.81
Working Load Limit (lbs.): 2,000
MPN: 14466
A (in.): 0.81
B (in.): 2.00
C (in.): 3.25
D (in.): 2.50
E (in.): 8.5
L (in.): 16.0
T (in.): 0.50
Price:$1,209.70
Working Load Limit (lbs.): 4,000
MPN: 14467
A (in.): 1.00
B (in.): 2.56
C (in.): 4.06
D (in.): 2.13
E (in.): 4.5
L (in.): 8.0
T (in.): 0.75
Price:$1,254.50
Working Load Limit (lbs.): 4,000
MPN: 14468
A (in.): 1.00
B (in.): 2.56
C (in.): 4.06
D (in.): 3.00
E (in.): 8.5
L (in.): 16.0
T (in.): 0.75
Price:$1,523.31
Working Load Limit (lbs.): 7,000
MPN: 14469
A (in.): 1.18
B (in.): 3.63
C (in.): 5.31
D (in.): 2.87
E (in.): 6.5
L (in.): 12.0
T (in.): 1.00
Price:$1,612.93
Working Load Limit (lbs.): 7,000
MPN: 14470
A (in.): 1.18
B (in.): 3.63
C (in.): 5.31
D (in.): 3.38
E (in.): 8.5
L (in.): 16.0
T (in.): 1.00
Price:$2,090.83
Working Load Limit (lbs.): 10,000
MPN: 14471
A (in.): 1.50
B (in.): 4.00
C (in.): 5.81
D (in.): 3.50
E (in.): 8.5
L (in.): 16.0
T (in.): 1.25
Price:$2,822.63
Working Load Limit (lbs.): 10,000
MPN: 14472
A (in.): 1.50
B (in.): 4.00
C (in.): 5.81
D (in.): 4.00
E (in.): 10.5
L (in.): 20.0
T (in.): 1.25
Price:$3,330.40
