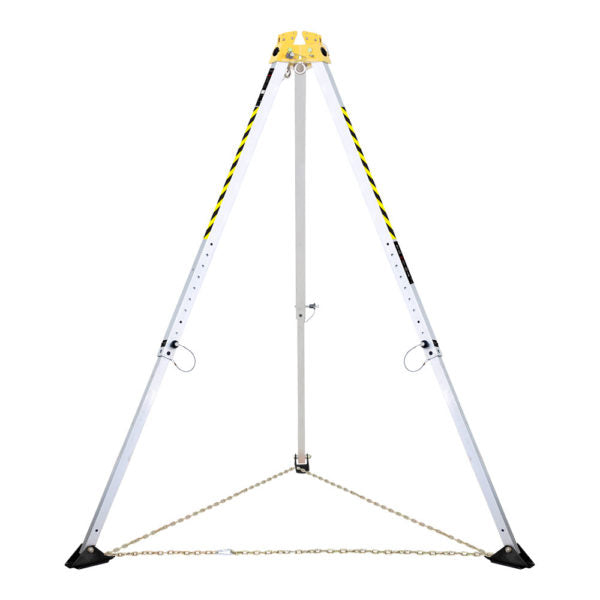

7' CONFINED SPACE TRIPOD (CS717)

DESIGN:

• Adjustable height from 4’4” (1.32 m) to 7’ (2.13 m) from ground level.
• At minimum height, distance between legs (foot point): 3’2” (0.96 m) & foot print diameter of 3.97’ (1.21 m).
• At maximum height, distance between legs (foot point): 5’8” (1.72 m) & foot print diameter of 6.56’ (6.56 ft.).
• Adjustment achieved by sliding telescopic legs (inner & outer).
• Locking pins attached by SS cables.
• Securely connected two eye bolts to be used for connection to personal protective equipment.
• Two pulley system provided to pass the wire rope of winch mounted on one leg and retrieval block on the other leg simultaneously.

LOAD CAPACITY:

310 lbs. (As per ANSI Z359.1)

TRIPOD LEGS:

Material: Prime quality aluminum alloy | Finish: Anodized

HEAD:

Material: Prime quality aluminum alloy | Finish: Powder coated

LOCKING PINS:

Material: Prime quality aluminum alloy eye bolt & stainless steel locking pin
Finish: Deburred & polished

VITAL TEST COMPLIANCE:

Static Strength: 25 kN (5000 lbs.) for 1 minute

WEIGHT:

41.9 lbs. (19.01 kg)
