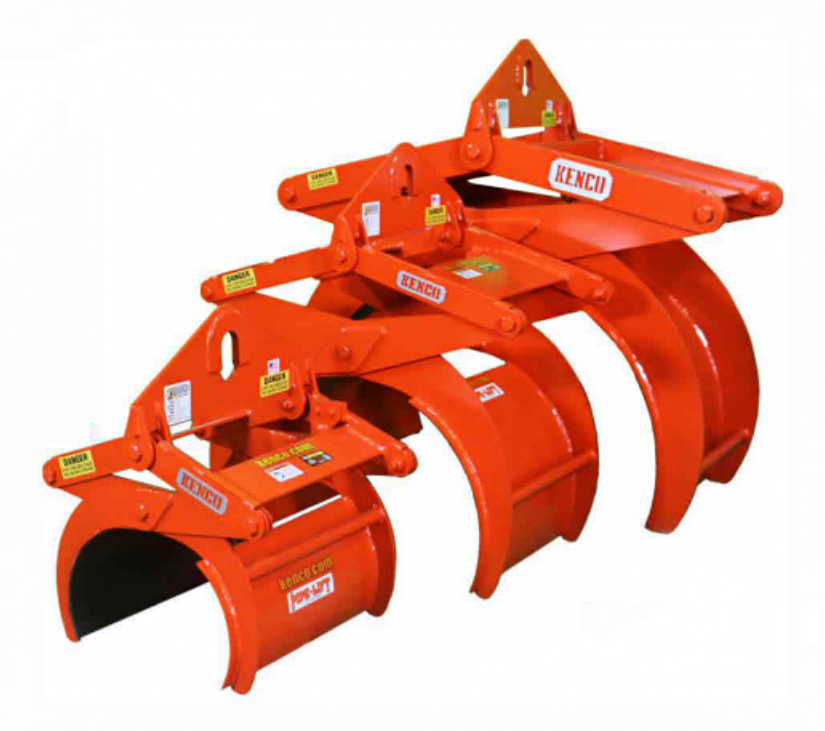

Pipe Lift™

Designed for a wide range of professional applications:

  • Public Works & Municipalities
  • Gas & Oil Pipeline
  • Heavy Highway

USE IT TO LIFT A VARIETY OF PIPE TYPES

  • REINFORCED CONCRETE PIPE
  • DUCTILE IRON PIPE
  • STEEL PIPE
  • PVC PIPE
  • HDPE PIPE
MPN Capacity (LBS) OD Range (IN) Weight (lbs) Height "A" Width "B" Common Pipe Sizes (IN) Ductile Common Pipe Sizes (IN) RCP Actuator Size Price Quantity
PL1500 1,500 4.50 - 9.05 115 25.75 19.25 4, 6, 8 Small $2,838.00
PL2000 2,000 8.63 - 13.20 150 29.00 22.00 8, 10, 12 Small $3,498.00
PL2150 2,150 10.75 - 15.30 180 35.00 26.00 10, 12, 14 Medium $3,630.00
PL2250 2,250 12.75 - 17.40 270 37.25 32.00 12, 14, 16 12 Medium $3,894.00
PL2500 2,500 14.00 - 23.00 320 43.50 35.75 14, 16, 18, 20 12, 15, 18 Medium $4,158.00
PL2750 2,750 18.00 - 25.80 350 46.50 38.50 18, 24 15, 18 Medium $4,422.00
PL3000 3,000 23.00 - 32.00 500 52.75 48.00 14, 16, 18, 20 18, 21, 24 Medium $4,818.00
PL34C18T25.8 3,400 18.00 - 25.80 $6,006.00
PL3500 3,500 30.00 - 38.50 580 52.75 54.75 30, 36 24, 27, 30 Large $6,270.00
PL4500 4,500 36.00 - 45.50 1,240 52.75 54.75 36, 42 30, 36 Large $11,814.00
PL7000 7,000 42.00 - 52.50 1,380 72.75 74.50 36, 42 Large $12,870.00
PL8500 8,500 48.00 - 59.50 1,530 77.00 84.50 42, 48 Large $15,774.00

Products

MPN: PL1500
Capacity (LBS): 1,500
OD Range (IN): 4.50 - 9.05
Weight (lbs): 115
Height "A": 25.75
Width "B": 19.25
Common Pipe Sizes (IN) Ductile: 4, 6, 8
Common Pipe Sizes (IN) RCP:
Actuator Size: Small
Price:$2,838.00
MPN: PL2000
Capacity (LBS): 2,000
OD Range (IN): 8.63 - 13.20
Weight (lbs): 150
Height "A": 29.00
Width "B": 22.00
Common Pipe Sizes (IN) Ductile: 8, 10, 12
Common Pipe Sizes (IN) RCP:
Actuator Size: Small
Price:$3,498.00
MPN: PL2150
Capacity (LBS): 2,150
OD Range (IN): 10.75 - 15.30
Weight (lbs): 180
Height "A": 35.00
Width "B": 26.00
Common Pipe Sizes (IN) Ductile: 10, 12, 14
Common Pipe Sizes (IN) RCP:
Actuator Size: Medium
Price:$3,630.00
MPN: PL2250
Capacity (LBS): 2,250
OD Range (IN): 12.75 - 17.40
Weight (lbs): 270
Height "A": 37.25
Width "B": 32.00
Common Pipe Sizes (IN) Ductile: 12, 14, 16
Common Pipe Sizes (IN) RCP: 12
Actuator Size: Medium
Price:$3,894.00
MPN: PL2500
Capacity (LBS): 2,500
OD Range (IN): 14.00 - 23.00
Weight (lbs): 320
Height "A": 43.50
Width "B": 35.75
Common Pipe Sizes (IN) Ductile: 14, 16, 18, 20
Common Pipe Sizes (IN) RCP: 12, 15, 18
Actuator Size: Medium
Price:$4,158.00
MPN: PL2750
Capacity (LBS): 2,750
OD Range (IN): 18.00 - 25.80
Weight (lbs): 350
Height "A": 46.50
Width "B": 38.50
Common Pipe Sizes (IN) Ductile: 18, 24
Common Pipe Sizes (IN) RCP: 15, 18
Actuator Size: Medium
Price:$4,422.00
MPN: PL3000
Capacity (LBS): 3,000
OD Range (IN): 23.00 - 32.00
Weight (lbs): 500
Height "A": 52.75
Width "B": 48.00
Common Pipe Sizes (IN) Ductile: 14, 16, 18, 20
Common Pipe Sizes (IN) RCP: 18, 21, 24
Actuator Size: Medium
Price:$4,818.00
MPN: PL3500
Capacity (LBS): 3,500
OD Range (IN): 30.00 - 38.50
Weight (lbs): 580
Height "A": 52.75
Width "B": 54.75
Common Pipe Sizes (IN) Ductile: 30, 36
Common Pipe Sizes (IN) RCP: 24, 27, 30
Actuator Size: Large
Price:$6,270.00
MPN: PL4500
Capacity (LBS): 4,500
OD Range (IN): 36.00 - 45.50
Weight (lbs): 1,240
Height "A": 52.75
Width "B": 54.75
Common Pipe Sizes (IN) Ductile: 36, 42
Common Pipe Sizes (IN) RCP: 30, 36
Actuator Size: Large
Price:$11,814.00
MPN: PL7000
Capacity (LBS): 7,000
OD Range (IN): 42.00 - 52.50
Weight (lbs): 1,380
Height "A": 72.75
Width "B": 74.50
Common Pipe Sizes (IN) Ductile: 36, 42
Common Pipe Sizes (IN) RCP:
Actuator Size: Large
Price:$12,870.00
MPN: PL8500
Capacity (LBS): 8,500
OD Range (IN): 48.00 - 59.50
Weight (lbs): 1,530
Height "A": 77.00
Width "B": 84.50
Common Pipe Sizes (IN) Ductile: 42, 48
Common Pipe Sizes (IN) RCP:
Actuator Size: Large
Price:$15,774.00
