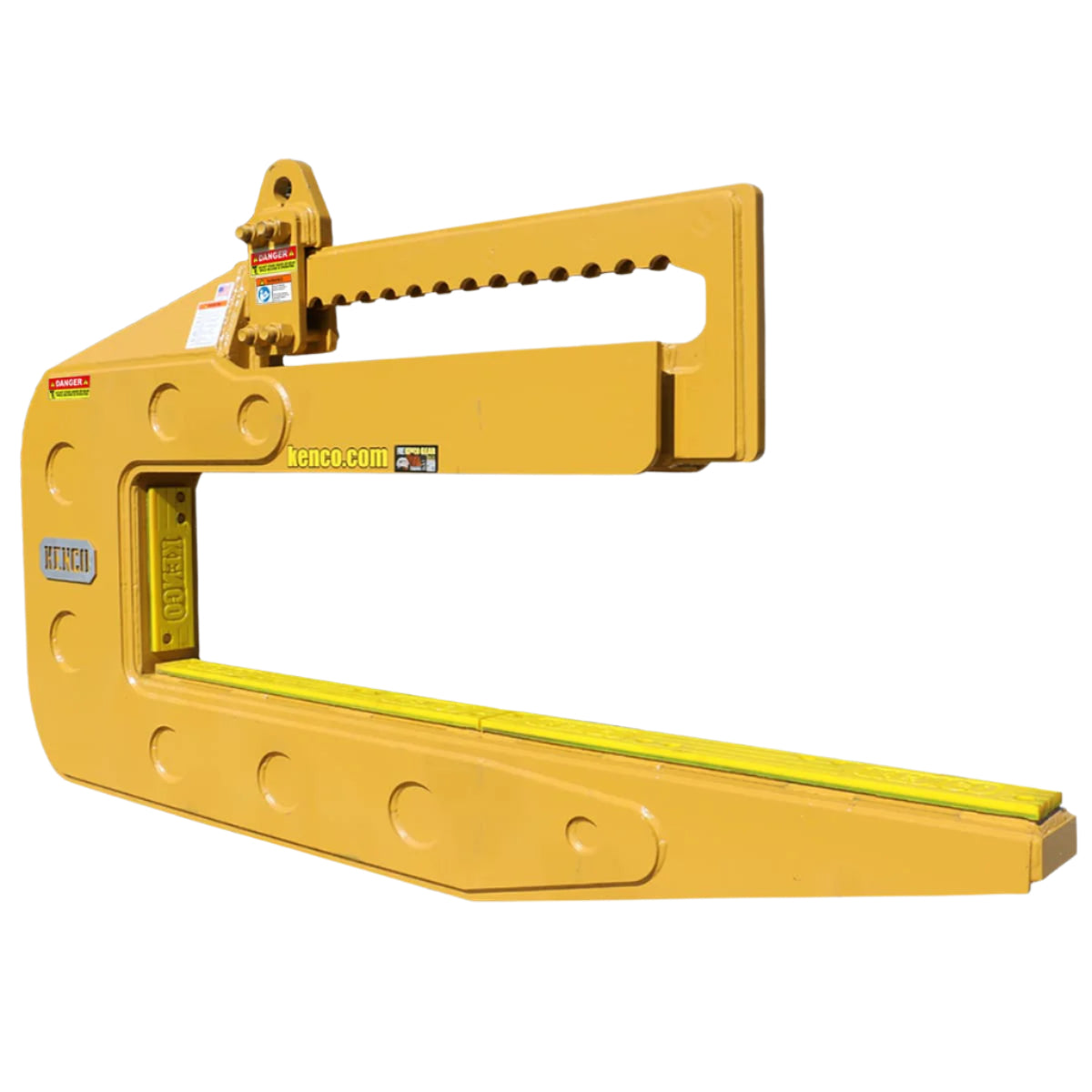

Kenco Mechanical Pipe Hook (PH30000M)

• Reduce your pipe handling time to
  increase production and profit.
• One operator can lift, position, and set
  pipe sections together quickly and safely.
• Self Leveling and Mechanical slide
  models available in several capacities.
• Can be used on any standard 8 foot
  segment of pipe regardless of shape.
• Reinforced box-style construction
  provides superior strength.
• Full pad coverage maximizes contact
  while preventing damage to the pipe.

The PH30000 Mechanical Pipe Hook has a 30,000 lb capacity. Attach your rigging, including a sling and shackles, to the lift eye of the hook and then to the machine. The operator can use the manual slide located across the top of the hook to adjust the angle of the pipe for installation or removal.

Min Inside Diameter:18"
RCP Pipe Length: 8'
Shipping Dimensions: 95" x 48" x 10"
Shipping Weight: 1500 lb
