Skookum 2000 Series Blocks

  • Work-hardening manganese steel sheave maximize wire rope & sheave life.
  • Recessed sheave design prevents wire rope from binding between sheave and block side.
  • Full sided design maximizes sheave protection and strength.
  • Versatile draw pin allow for rapid reeving & exchange of attaching style.
  • Rugged cast alloy steel sides for demanding environments.
  • ASME B30.26-1 compliant

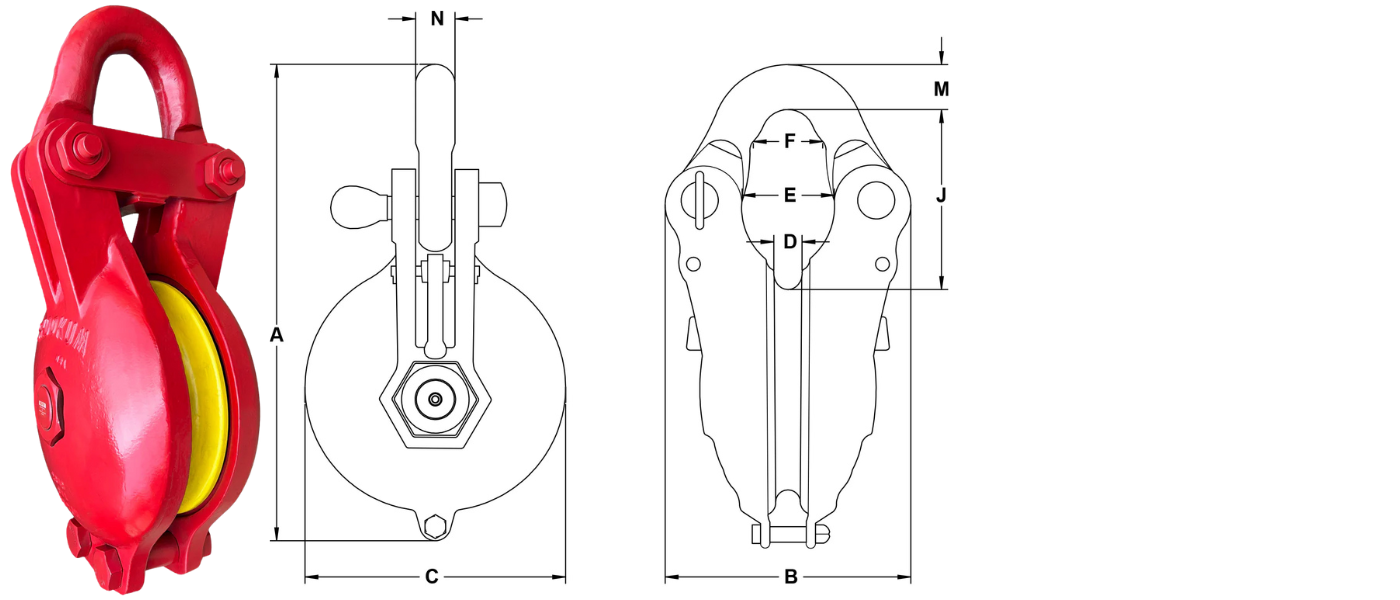

MPN End Fittings Sheave Diameter Wire Rope Min. Wire Rope Max. Working Load Limit (Ton) A (in.) B (in.) C (in.) D (in.) E (in.) F (in.) Yoke Width Below Lineguard Yoke Width Above Lineguard J (in.) Throat Height Below Lineguard Throat Height Above Lineguard M (in.) N (in.) Price Quantity
565700 REGULAR YOKE 14" 1-1/2" 1-5/8" 36.5 31 11.5 15 2.5 3 3 3.25 3 2.45 5.75 4 2.45 2.45 $7,778.07
565800 REGULAR YOKE 16" 1-1/2" 1-5/8" 40.5 35 12 17 2.5 3.5 5 4.75 4.5 2.55 6.75 5.25 2.55 2.55 $11,070.69
559400 REGULAR YOKE 16" 1-1/2" 1-5/8" 50 37 12.5 17.5 3 4 7.75 4.5 5 2.75 6.8 6 2.75 2.92 $13,336.06

Products

MPN: 565700
End Fittings: REGULAR YOKE
Sheave Diameter: 14"
Wire Rope Min.: 1-1/2"
Wire Rope Max.: 1-5/8"
Working Load Limit (Ton): 36.5
A (in.): 31
B (in.): 11.5
C (in.): 15
D (in.): 2.5
E (in.): 3
F (in.): 3
Yoke Width Below Lineguard: 3.25
Yoke Width Above Lineguard: 3
J (in.): 2.45
Throat Height Below Lineguard: 5.75
Throat Height Above Lineguard: 4
M (in.): 2.45
N (in.): 2.45
Price:$7,778.07
MPN: 565800
End Fittings: REGULAR YOKE
Sheave Diameter: 16"
Wire Rope Min.: 1-1/2"
Wire Rope Max.: 1-5/8"
Working Load Limit (Ton): 40.5
A (in.): 35
B (in.): 12
C (in.): 17
D (in.): 2.5
E (in.): 3.5
F (in.): 5
Yoke Width Below Lineguard: 4.75
Yoke Width Above Lineguard: 4.5
J (in.): 2.55
Throat Height Below Lineguard: 6.75
Throat Height Above Lineguard: 5.25
M (in.): 2.55
N (in.): 2.55
Price:$11,070.69
MPN: 559400
End Fittings: REGULAR YOKE
Sheave Diameter: 16"
Wire Rope Min.: 1-1/2"
Wire Rope Max.: 1-5/8"
Working Load Limit (Ton): 50
A (in.): 37
B (in.): 12.5
C (in.): 17.5
D (in.): 3
E (in.): 4
F (in.): 7.75
Yoke Width Below Lineguard: 4.5
Yoke Width Above Lineguard: 5
J (in.): 2.75
Throat Height Below Lineguard: 6.8
Throat Height Above Lineguard: 6
M (in.): 2.75
N (in.): 2.92
Price:$13,336.06
