Skookum 2200 Series Blocks

  • Work-hardening manganese steel sheave maximize wire rope & sheave life.
  • Recessed sheave design prevents wire rope from binding between sheave and block side.
  • Half side for light weight or full side design to maximize sheave protection.
  • Versatile draw pin allow for rapid reeving & exchange of attaching style.
  • Rugged cast alloy steel sides for demanding environments.
  • ASME B30.26-1 compliant

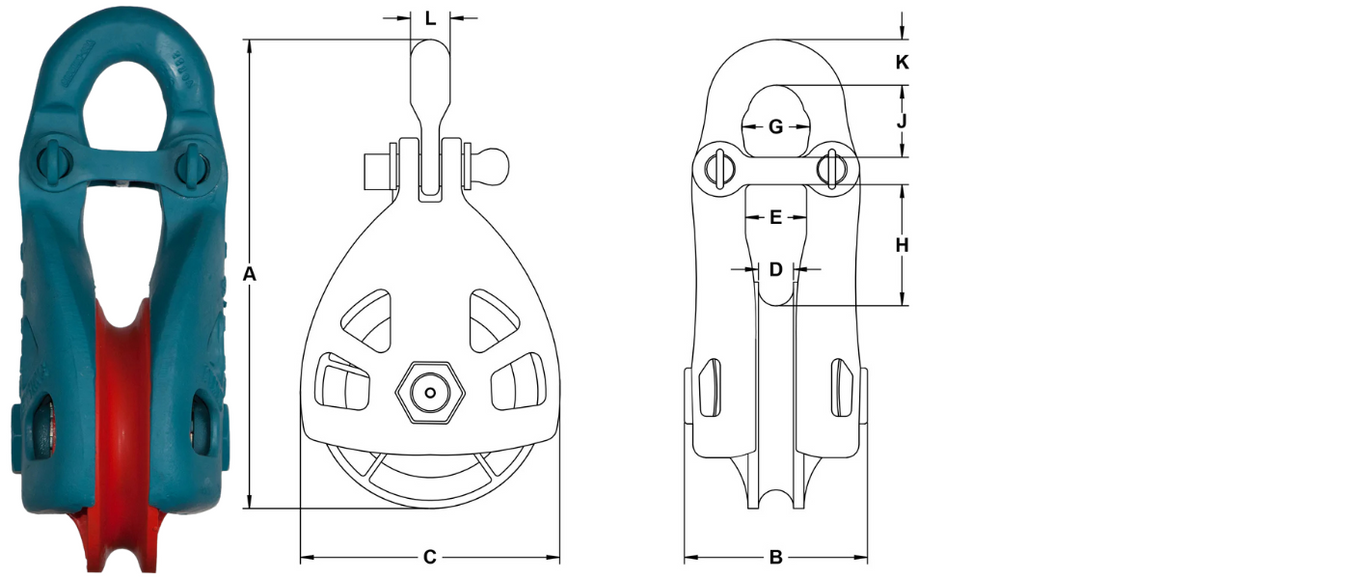

MPN End Fittings Sheave Diameter Wire Rope Min. Wire Rope Max. Working Load Limit (Ton) A (in.) B (in.) C (in.) D (in.) E (in.) Yoke Width Below Lineguard G (in.) H (in.) J (in.) K (in.) L (in.) Price Quantity
555003 REGULAR YOKE 10" 7/8" 1" 21.5 18 7 11 2 2.75 2.75 2.75 4.25 2.25 1.75 2 $3,460.75
555002 SWIVEL SHACKLE 10" 7/8" 1" 21.5 18 7 11 2 2.75 2.75 2.75 4.25 2.25 1.75 2 $3,886.10
558603 REGULAR YOKE 12" 1-1/8" 1-1/4" 22 22 7.5 13 2 2.75 2.75 3 4.5 2.5 1.75 2 $3,684.05
558602 SWIVEL SHACKLE 12" 1-1/8" 1-1/4" 22 22 7.5 13 2 2.75 2.75 3 4.5 2.5 1.75 2 $4,157.31
558703 REGULAR YOKE 14" 1-1/8" 1-1/4" 22 25 7.5 15 2 2.75 2.75 3 4.75 2.5 1.75 2 $4,199.81
558702 SWIVEL SHACKLE 14" 1-1/8" 1-1/4" 22 25 7.5 15 2 2.75 2.75 3 4.75 2.5 1.75 2 $4,651.86
558853 REGULAR YOKE 16" 1-1/8" 1-1/4" 25 26.5 8 16.63 2.13 3 3 3 4 2.25 1.75 2 $5,190.25
558852 SWIVEL SHACKLE 16" 1-1/8" 1-1/4" 25 26.5 8 16.63 2.13 3 3 3 4 2.25 1.75 2 $5,748.81
715003 REGULAR YOKE 20" 1" 1-1/8" 27.5 29.75 8 20.75 2.13 3 2.13 2.5 5.13 2.75 1.75 2 $5,665.04
715002 SWIVEL SHACKLE 20" 1" 1-1/8" 27.5 29.75 8 20.75 2.13 3 2.13 2.5 5.13 2.75 1.75 2 $6,285.82
711603 REGULAR YOKE 22" 1-1/8" 1-1/4" 29 33.38 8 23 2.13 3.13 2.13 3.38 5.25 4.25 2.13 2.38 $8,135.32
711602 SWIVEL SHACKLE 22" 1-1/8" 1-1/4" 29 33.38 8 23 2.13 3.13 2.13 3.38 5.25 4.25 2.13 2.38 $9,241.10
558904 REGULAR YOKE 18" 1-3/8" - 30 31 9 19 2.25 3.5 2.25 4 5.25 4 2.13 2.38 $7,833.15

Products

MPN: 555003
End Fittings: REGULAR YOKE
Sheave Diameter: 10"
Wire Rope Min.: 7/8"
Wire Rope Max.: 1"
Working Load Limit (Ton): 21.5
A (in.): 18
B (in.): 7
C (in.): 11
D (in.): 2
E (in.): 2.75
Yoke Width Below Lineguard: 2.75
G (in.): 2.75
H (in.): 4.25
J (in.): 2.25
K (in.): 1.75
L (in.): 2
Price:$3,460.75
MPN: 555002
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 10"
Wire Rope Min.: 7/8"
Wire Rope Max.: 1"
Working Load Limit (Ton): 21.5
A (in.): 18
B (in.): 7
C (in.): 11
D (in.): 2
E (in.): 2.75
Yoke Width Below Lineguard: 2.75
G (in.): 2.75
H (in.): 4.25
J (in.): 2.25
K (in.): 1.75
L (in.): 2
Price:$3,886.10
MPN: 558603
End Fittings: REGULAR YOKE
Sheave Diameter: 12"
Wire Rope Min.: 1-1/8"
Wire Rope Max.: 1-1/4"
Working Load Limit (Ton): 22
A (in.): 22
B (in.): 7.5
C (in.): 13
D (in.): 2
E (in.): 2.75
Yoke Width Below Lineguard: 2.75
G (in.): 3
H (in.): 4.5
J (in.): 2.5
K (in.): 1.75
L (in.): 2
Price:$3,684.05
MPN: 558602
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 12"
Wire Rope Min.: 1-1/8"
Wire Rope Max.: 1-1/4"
Working Load Limit (Ton): 22
A (in.): 22
B (in.): 7.5
C (in.): 13
D (in.): 2
E (in.): 2.75
Yoke Width Below Lineguard: 2.75
G (in.): 3
H (in.): 4.5
J (in.): 2.5
K (in.): 1.75
L (in.): 2
Price:$4,157.31
MPN: 558703
End Fittings: REGULAR YOKE
Sheave Diameter: 14"
Wire Rope Min.: 1-1/8"
Wire Rope Max.: 1-1/4"
Working Load Limit (Ton): 22
A (in.): 25
B (in.): 7.5
C (in.): 15
D (in.): 2
E (in.): 2.75
Yoke Width Below Lineguard: 2.75
G (in.): 3
H (in.): 4.75
J (in.): 2.5
K (in.): 1.75
L (in.): 2
Price:$4,199.81
MPN: 558702
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 14"
Wire Rope Min.: 1-1/8"
Wire Rope Max.: 1-1/4"
Working Load Limit (Ton): 22
A (in.): 25
B (in.): 7.5
C (in.): 15
D (in.): 2
E (in.): 2.75
Yoke Width Below Lineguard: 2.75
G (in.): 3
H (in.): 4.75
J (in.): 2.5
K (in.): 1.75
L (in.): 2
Price:$4,651.86
MPN: 558853
End Fittings: REGULAR YOKE
Sheave Diameter: 16"
Wire Rope Min.: 1-1/8"
Wire Rope Max.: 1-1/4"
Working Load Limit (Ton): 25
A (in.): 26.5
B (in.): 8
C (in.): 16.63
D (in.): 2.13
E (in.): 3
Yoke Width Below Lineguard: 3
G (in.): 3
H (in.): 4
J (in.): 2.25
K (in.): 1.75
L (in.): 2
Price:$5,190.25
MPN: 558852
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 16"
Wire Rope Min.: 1-1/8"
Wire Rope Max.: 1-1/4"
Working Load Limit (Ton): 25
A (in.): 26.5
B (in.): 8
C (in.): 16.63
D (in.): 2.13
E (in.): 3
Yoke Width Below Lineguard: 3
G (in.): 3
H (in.): 4
J (in.): 2.25
K (in.): 1.75
L (in.): 2
Price:$5,748.81
MPN: 715003
End Fittings: REGULAR YOKE
Sheave Diameter: 20"
Wire Rope Min.: 1"
Wire Rope Max.: 1-1/8"
Working Load Limit (Ton): 27.5
A (in.): 29.75
B (in.): 8
C (in.): 20.75
D (in.): 2.13
E (in.): 3
Yoke Width Below Lineguard: 2.13
G (in.): 2.5
H (in.): 5.13
J (in.): 2.75
K (in.): 1.75
L (in.): 2
Price:$5,665.04
MPN: 715002
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 20"
Wire Rope Min.: 1"
Wire Rope Max.: 1-1/8"
Working Load Limit (Ton): 27.5
A (in.): 29.75
B (in.): 8
C (in.): 20.75
D (in.): 2.13
E (in.): 3
Yoke Width Below Lineguard: 2.13
G (in.): 2.5
H (in.): 5.13
J (in.): 2.75
K (in.): 1.75
L (in.): 2
Price:$6,285.82
MPN: 711603
End Fittings: REGULAR YOKE
Sheave Diameter: 22"
Wire Rope Min.: 1-1/8"
Wire Rope Max.: 1-1/4"
Working Load Limit (Ton): 29
A (in.): 33.38
B (in.): 8
C (in.): 23
D (in.): 2.13
E (in.): 3.13
Yoke Width Below Lineguard: 2.13
G (in.): 3.38
H (in.): 5.25
J (in.): 4.25
K (in.): 2.13
L (in.): 2.38
Price:$8,135.32
MPN: 711602
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 22"
Wire Rope Min.: 1-1/8"
Wire Rope Max.: 1-1/4"
Working Load Limit (Ton): 29
A (in.): 33.38
B (in.): 8
C (in.): 23
D (in.): 2.13
E (in.): 3.13
Yoke Width Below Lineguard: 2.13
G (in.): 3.38
H (in.): 5.25
J (in.): 4.25
K (in.): 2.13
L (in.): 2.38
Price:$9,241.10
MPN: 558904
End Fittings: REGULAR YOKE
Sheave Diameter: 18"
Wire Rope Min.: 1-3/8"
Wire Rope Max.: -
Working Load Limit (Ton): 30
A (in.): 31
B (in.): 9
C (in.): 19
D (in.): 2.25
E (in.): 3.5
Yoke Width Below Lineguard: 2.25
G (in.): 4
H (in.): 5.25
J (in.): 4
K (in.): 2.13
L (in.): 2.38
Price:$7,833.15
