Skookum Ropemaster Wide Throat Blocks

  • Multi-use wide throat & utili-sheave for passing a variety of line, connecting links, and terminations.
  • Work-hardening manganese steel sheave maximize wire rope & sheave life.
  • Equipped with tapered roller bearings for long life in higher line speed applications.
  • Recessed sheave design prevents wire rope from binding between sheave and block side.
  • Half side design for strength with minimized weight.
  • Versatile draw pin allow for rapid reeving & exchange of attaching style.
  • Rugged cast alloy steel sides for demanding environments.
  • ASME B30.26-1 compliant

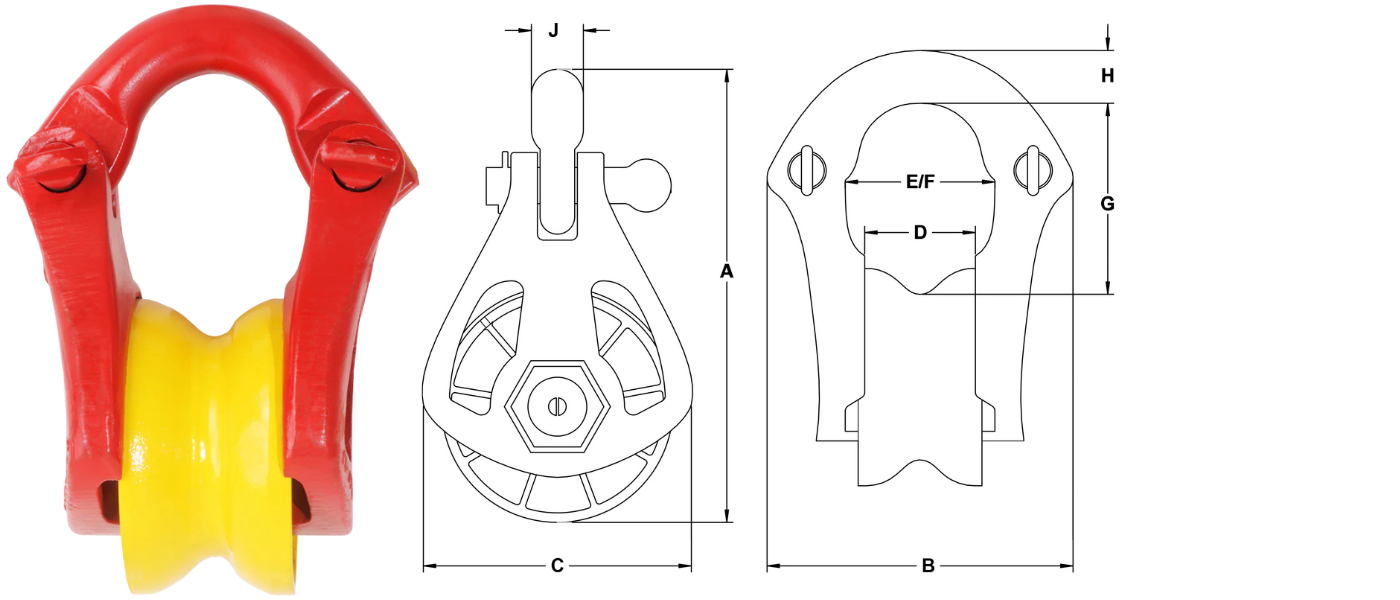

MPN End Fittings Sheave Diameter Wire Rope Min. Wire Rope Max. Working Load Limit (Ton) A (in.) B (in.) C (in.) D (in.) E (in.) F (in.) G (in.) H (in.) J (in.) Price Quantity
799400 REGULAR YOKE 8" 1/2" 5/8" 10 17 6.5 8.75 2.63 2.63 2.63 3.75 1.38 1.38 $1,602.95
799401 SWIVEL HOOK 8" 1/2" 5/8" 10 17 6.5 8.75 2.63 2.63 2.63 3.75 1.38 1.38 $1,859.26
799402 SWIVEL SHACKLE 8" 1/2" 5/8" 10 17 6.5 8.75 2.63 2.63 2.63 3.75 1.38 1.38 $1,934.84
209800 REGULAR YOKE 8" 1" 1-1/8" 15 15 11 9.5 4 4 5.25 6.5 2 2 $2,573.59
108500 REGULAR YOKE 10" 1" 1-1/4" 25 20 12 11.5 4.5 4.5 6 9 2 2 $3,287.83
108510 REGULAR YOKE 10" 3/4" 2" 25 20 12 11.5 4.5 4.5 6 9 2 2 $3,287.83
560300 REGULAR YOKE 16" 1-1/8" 1-1/4" 25 30.5 13.63 16.5 6.75 9.5 9.5 15 2.38 2.38 $9,227.21
571600 REGULAR YOKE 6" 3/8" 1/2" 7 13 6 7 1 3 3 5.25 1 1 $1,389.93

Products

MPN: 799400
End Fittings: REGULAR YOKE
Sheave Diameter: 8"
Wire Rope Min.: 1/2"
Wire Rope Max.: 5/8"
Working Load Limit (Ton): 10
A (in.): 17
B (in.): 6.5
C (in.): 8.75
D (in.): 2.63
E (in.): 2.63
F (in.): 2.63
G (in.): 3.75
H (in.): 1.38
J (in.): 1.38
Price:$1,602.95
MPN: 799401
End Fittings: SWIVEL HOOK
Sheave Diameter: 8"
Wire Rope Min.: 1/2"
Wire Rope Max.: 5/8"
Working Load Limit (Ton): 10
A (in.): 17
B (in.): 6.5
C (in.): 8.75
D (in.): 2.63
E (in.): 2.63
F (in.): 2.63
G (in.): 3.75
H (in.): 1.38
J (in.): 1.38
Price:$1,859.26
MPN: 799402
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 8"
Wire Rope Min.: 1/2"
Wire Rope Max.: 5/8"
Working Load Limit (Ton): 10
A (in.): 17
B (in.): 6.5
C (in.): 8.75
D (in.): 2.63
E (in.): 2.63
F (in.): 2.63
G (in.): 3.75
H (in.): 1.38
J (in.): 1.38
Price:$1,934.84
MPN: 209800
End Fittings: REGULAR YOKE
Sheave Diameter: 8"
Wire Rope Min.: 1"
Wire Rope Max.: 1-1/8"
Working Load Limit (Ton): 15
A (in.): 15
B (in.): 11
C (in.): 9.5
D (in.): 4
E (in.): 4
F (in.): 5.25
G (in.): 6.5
H (in.): 2
J (in.): 2
Price:$2,573.59
MPN: 108500
End Fittings: REGULAR YOKE
Sheave Diameter: 10"
Wire Rope Min.: 1"
Wire Rope Max.: 1-1/4"
Working Load Limit (Ton): 25
A (in.): 20
B (in.): 12
C (in.): 11.5
D (in.): 4.5
E (in.): 4.5
F (in.): 6
G (in.): 9
H (in.): 2
J (in.): 2
Price:$3,287.83
MPN: 108510
End Fittings: REGULAR YOKE
Sheave Diameter: 10"
Wire Rope Min.: 3/4"
Wire Rope Max.: 2"
Working Load Limit (Ton): 25
A (in.): 20
B (in.): 12
C (in.): 11.5
D (in.): 4.5
E (in.): 4.5
F (in.): 6
G (in.): 9
H (in.): 2
J (in.): 2
Price:$3,287.83
MPN: 560300
End Fittings: REGULAR YOKE
Sheave Diameter: 16"
Wire Rope Min.: 1-1/8"
Wire Rope Max.: 1-1/4"
Working Load Limit (Ton): 25
A (in.): 30.5
B (in.): 13.63
C (in.): 16.5
D (in.): 6.75
E (in.): 9.5
F (in.): 9.5
G (in.): 15
H (in.): 2.38
J (in.): 2.38
Price:$9,227.21
MPN: 571600
End Fittings: REGULAR YOKE
Sheave Diameter: 6"
Wire Rope Min.: 3/8"
Wire Rope Max.: 1/2"
Working Load Limit (Ton): 7
A (in.): 13
B (in.): 6
C (in.): 7
D (in.): 1
E (in.): 3
F (in.): 3
G (in.): 5.25
H (in.): 1
J (in.): 1
Price:$1,389.93
