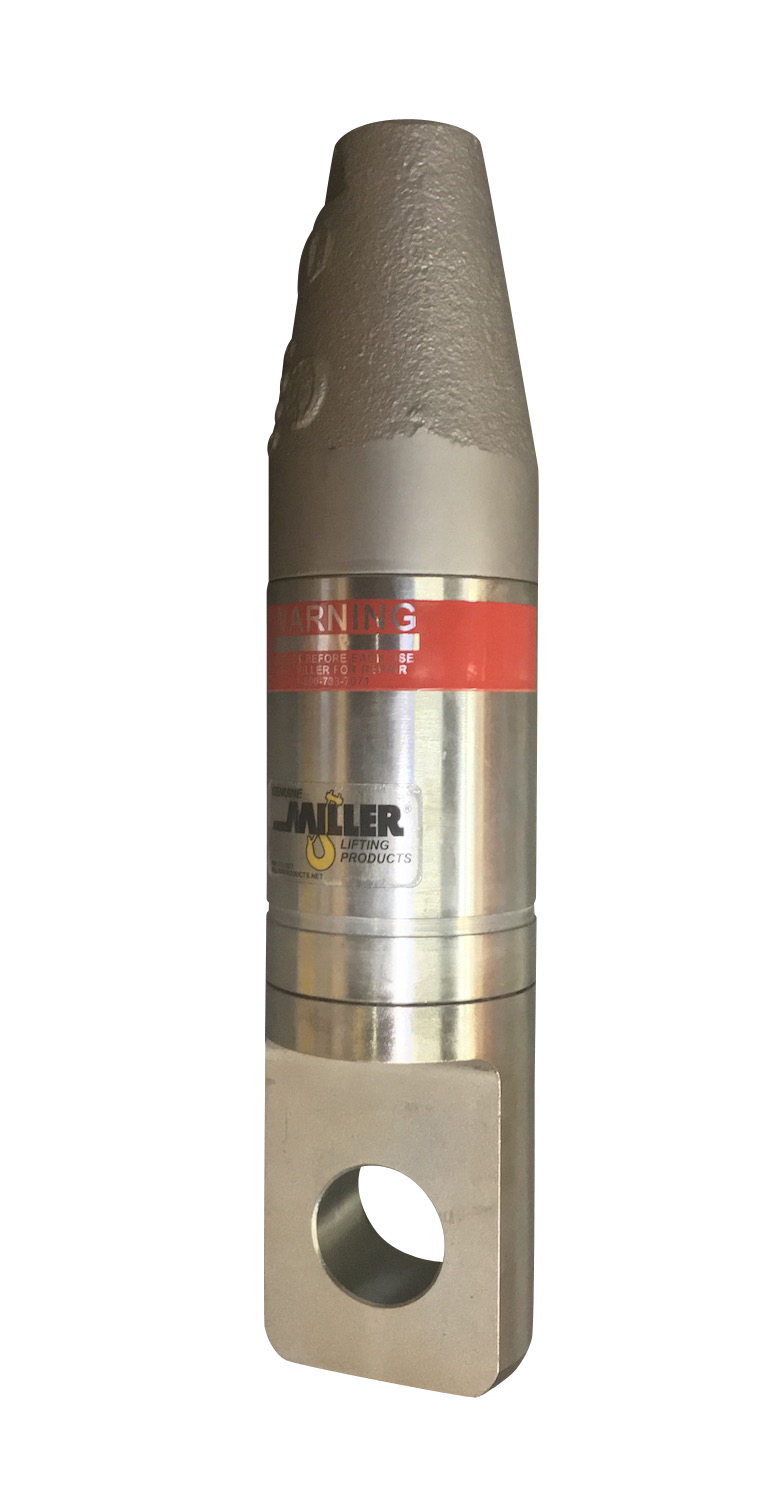

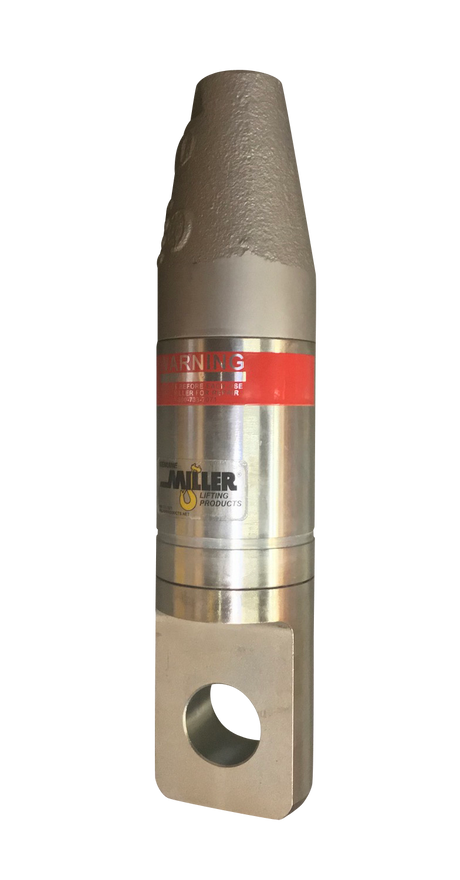

Socket to Eye – Type 512

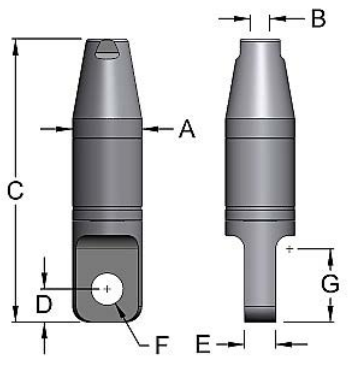

Working Load Limit (ton)	MPN	Rope Size	A	B	C	D	E	F	Weight (lbs)	Price	Quantity
Miller Angular Contact Ball Bearing Swivel Model D-512 Socket to Eye WLL 5 tons	5	D-512	5/8	2.5	0.69	10.44	1.19	1	1.28	8.68	$1,209.60

Miller Angular Contact Ball Bearing Swivel Model EE-512 Socket to Eye WLL 8.5 tons	8.5	EE-512	3/4	2.88	0.81	12.75	1.5	1.25	1.41	14.5	$1,512.00

Miller Angular Contact Ball Bearing Swivel Model G-512 Socket to Eye WLL 10 tons	10	G-512	7/8	4	0.97	16.25	1.81	1.72	1.66	33	$2,825.55

Miller Angular Contact Ball Bearing Swivel Model GG-512 Socket to Eye WLL 15 tons	15	GG-512	1	4	1.13	16.25	2.13	1.94	2.03	33	$2,891.70

Miller Angular Contact Ball Bearing Swivel Model H-512 Socket to Eye WLL 25 tons	25	H-512	1 1/4	5	1.38	20.19	2.38	2.25	2.31	74	$5,424.30

Miller Angular Contact Ball Bearing Swivel Model HH-512 Socket to Eye WLL 35 tons	35	HH-512	1 1/2	5	1.63	20.19	2.38	2.25	2.31	74	$6,208.65

Products

Working Load Limit (ton): 5

MPN: D-512

Rope Size: 5/8

A: 2.5

B: 0.69

C: 10.44

D: 1.19

E: 1

F: 1.28

Weight (lbs): 8.68

Price:$1,209.60

Working Load Limit (ton): 8.5

MPN: EE-512

Rope Size: 3/4

A: 2.88

B: 0.81

C: 12.75

D: 1.5

E: 1.25

F: 1.41

Weight (lbs): 14.5

Price:$1,512.00

Working Load Limit (ton): 10

MPN: G-512

Rope Size: 7/8

A: 4

B: 0.97

C: 16.25

D: 1.81

E: 1.72

F: 1.66

Weight (lbs): 33

Price:$2,825.55

Working Load Limit (ton): 15

MPN: GG-512

Rope Size: 1

A: 4

B: 1.13

C: 16.25

D: 2.13

E: 1.94

F: 2.03

Weight (lbs): 33

Price:$2,891.70

Working Load Limit (ton): 25

MPN: H-512

Rope Size: 1 1/4

A: 5

B: 1.38

C: 20.19

D: 2.38

E: 2.25

F: 2.31

Weight (lbs): 74

Price:$5,424.30

Working Load Limit (ton): 35

MPN: HH-512

Rope Size: 1 1/2

A: 5

B: 1.63

C: 20.19

D: 2.38

E: 2.25

F: 2.31

Weight (lbs): 74

Price:$6,208.65
