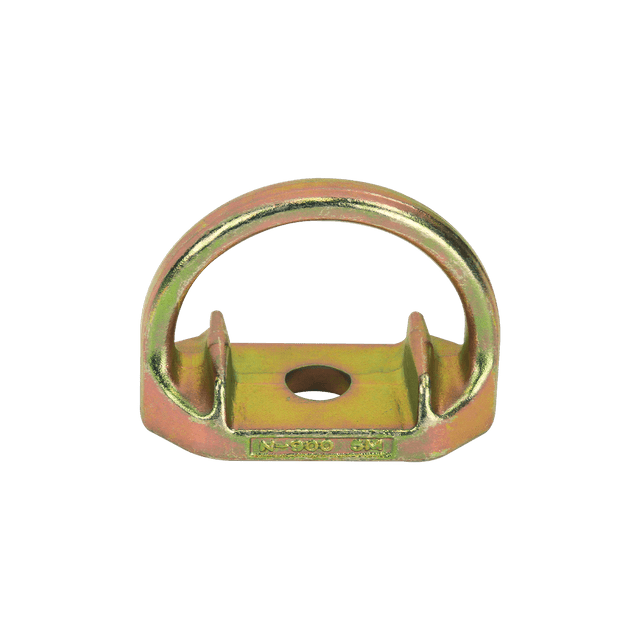

Bolt-on D-ring Anchor with 5/8" Hole (7435H)

Features

• Features large 2" x 3-1/4" internal dimension for easy connection
• Solid one-piece forged construction with 5/8" bolt hole.
• For permanent installation to steel structures with user-supplied fasteners
• Complies with ANSI Z359.18-2017


Material Specifications

• Bolt-on Anchor: Plated alloy steel

Performance Specifications

• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

Compliant With:
