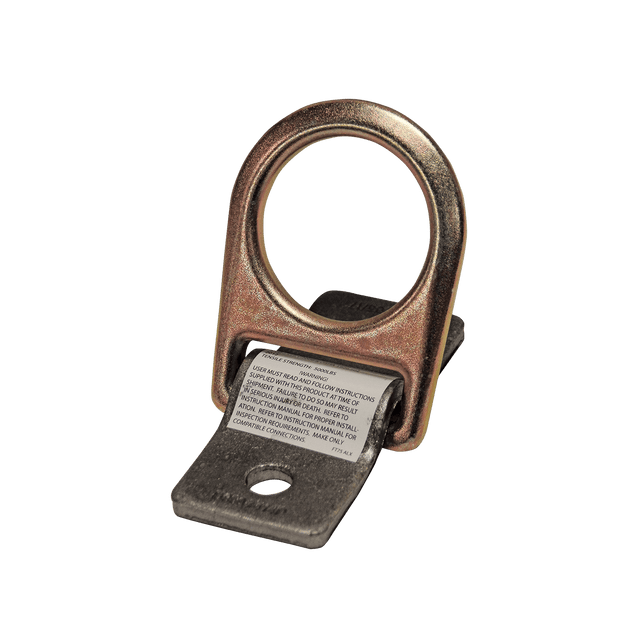

Weld-on D-ring Anchor with Unplated Installation Plate (7414P)

Features

• Features 2" x 4-1/2" unplated alloy steel anchoring plate and plated steel D-ring
• Plain steel anchoring plate is ideally suited for permanent weld-on installation.
• 1/2" holes also provided for bolt-on fixed position installation
• Complies with ANSI Z359.18-2017


Material Specifications

• Installation Plate: Unplated alloy steel
• D-ring: Plated alloy; 5,000 lb min. static strength

Performance Specifications

• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

Compliant With:
