Stirrup/Double Hooks

Manufactured to exceed all ASME B30.20 and OSHA regulations.
Corrosion resistant finish.
Durable construction ideally suited to jobsite or
warehouse use.
Made in U.S.A.
±4% on dimensions.
Custom designs available - call for engineering.
Maximum use temperature is 400° F.

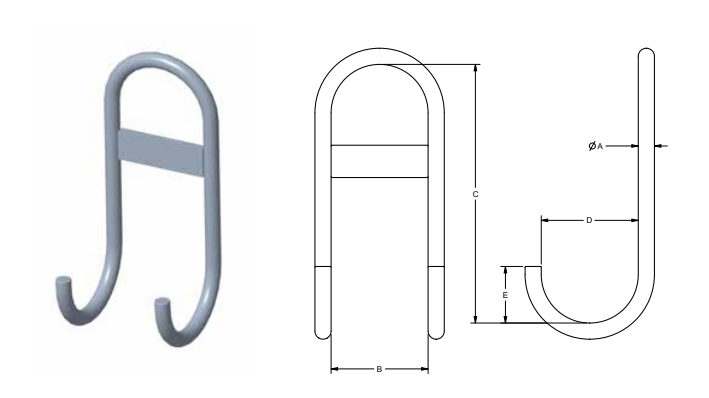

Material øA in Inches	MPN	A (in.)	B (in.)	C (in.)	D (in.)	E (in.)	Weight (lbs)	WLL	Price	Quantity
3/8" Alloy Stirrup Hook 450 lbs WLL (16386)	3/8	16386	0.38	2.50	8.00	2.50	1.75	1.0	450 lbs	$93.87

1/2" Alloy Stirrup Hook 900 lbs WLL (16387)	1/2	16387	0.50	3.00	8.00	3.00	1.75	1.8	900 lbs	$121.69

5/8" Alloy Stirrup Hook 1,500 lbs WLL (16388)	5/8	16388	0.63	3.50	9.00	3.50	2.50	3.2	1,500 lbs	$146.03

3/4" Alloy Stirrup Hook 2,250 lbs WLL (16389)	3/4	16389	0.75	4.00	10.00	4.00	2.50	4.9	2,250 lbs	$166.89

1" Alloy Stirrup Hook 4,600 lbs WLL (16390)	1	16390	1.00	4.50	12.00	4.50	3.00	10.0	4,600 lbs	$208.61

Products

Material øA in Inches:

MPN: 16386

A (in.): 0.38

B (in.): 2.50

C (in.): 8.00

D (in.): 2.50

E (in.): 1.75

Weight (lbs): 1.0

WLL: 450 lbs

Price:$93.87

Material øA in Inches:

MPN: 16387

A (in.): 0.50

B (in.): 3.00

C (in.): 8.00

D (in.): 3.00

E (in.): 1.75

Weight (lbs): 1.8

WLL: 900 lbs

Price:$121.69

Material øA in Inches:

MPN: 16388

A (in.): 0.63

B (in.): 3.50

C (in.): 9.00

D (in.): 3.50

E (in.): 2.50

Weight (lbs): 3.2

WLL: 1,500 lbs

Price:$146.03

Material øA in Inches:

MPN: 16389

A (in.): 0.75

B (in.): 4.00

C (in.): 10.00

D (in.): 4.00

E (in.): 2.50

Weight (lbs): 4.9

WLL: 2,250 lbs

Price:$166.89

Material øA in Inches:

MPN: 16390

A (in.): 1.00

B (in.): 4.50

C (in.): 12.00

D (in.): 4.50

E (in.): 3.00

Weight (lbs): 10.0

WLL: 4,600 lbs

Price:$208.61
