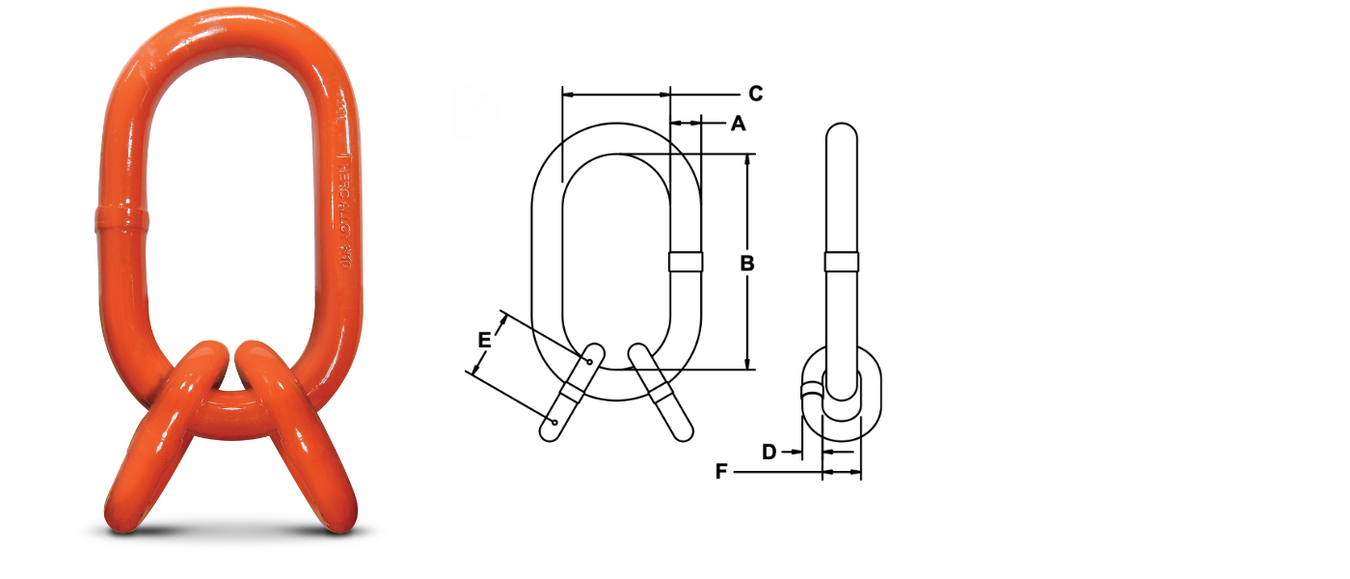

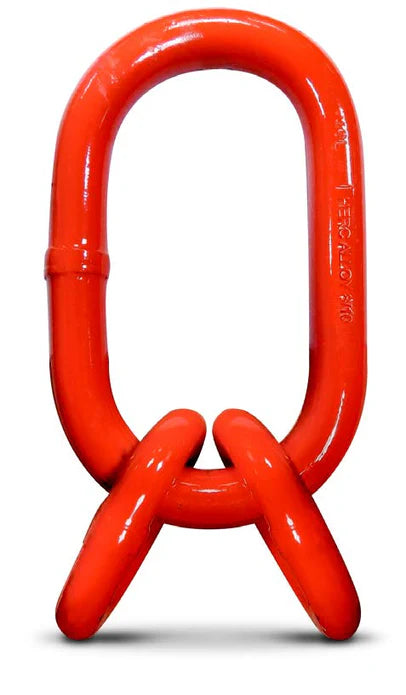

Sub-Assembly with Chain Links

WORKING LOAD LIMIT: 7,000 TO 187,800 LBS.

Benefits & Features

  • Designed for triple and quad branch Herc-Alloy® chain slings
  • Consists of an oblong master link and two welded master coupling links
  • Accepts both Herc-Alloy 800 & 1000 chain and components
  • Durable orange powder coated finish
  • May be used for mechanical or welded sling assemblies
  • 100% proof tested
  • 4:1 design factor

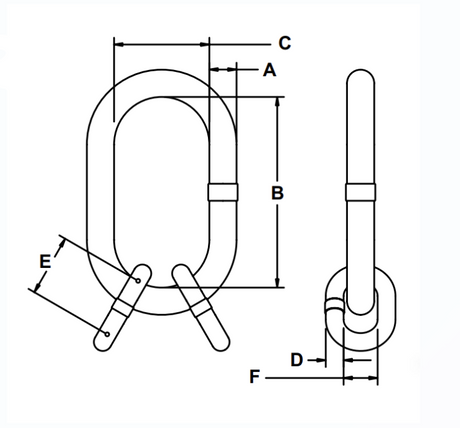

Trade Size (in.) Working Load Limit (lbs.) MPN A (in.) B (in.) C (in.) D (in.) E (in.) F (in.) Price Quantity
1/2 7,000 555274 0.56 5.00 2.50 0.44 1.75 1.06 $118.14
3/4 11,200 555275 0.75 5.50 2.75 0.47 1.56 0.88 $143.45
1 22,900 555276 1.00 7.00 3.50 0.78 2.63 1.50 $200.39
1-1/4 39,000 555277 1.25 8.75 4.38 0.91 3.13 1.75 $262.00
1-1/2 58,700 555278 1.50 10.50 5.25 1.13 4.00 2.25 $541.83
1-3/4 91,700 555279 1.75 12.00 6.00 1.50 5.25 2.75 $1,019.76

Products

Trade Size (in.): 1/2
Working Load Limit (lbs.): 7,000
MPN: 555274
A (in.): 0.56
B (in.): 5.00
C (in.): 2.50
D (in.): 0.44
E (in.): 1.75
F (in.): 1.06
Price:$118.14
Trade Size (in.): 3/4
Working Load Limit (lbs.): 11,200
MPN: 555275
A (in.): 0.75
B (in.): 5.50
C (in.): 2.75
D (in.): 0.47
E (in.): 1.56
F (in.): 0.88
Price:$143.45
Trade Size (in.): 1
Working Load Limit (lbs.): 22,900
MPN: 555276
A (in.): 1.00
B (in.): 7.00
C (in.): 3.50
D (in.): 0.78
E (in.): 2.63
F (in.): 1.50
Price:$200.39
Trade Size (in.): 1-1/4
Working Load Limit (lbs.): 39,000
MPN: 555277
A (in.): 1.25
B (in.): 8.75
C (in.): 4.38
D (in.): 0.91
E (in.): 3.13
F (in.): 1.75
Price:$262.00
Trade Size (in.): 1-1/2
Working Load Limit (lbs.): 58,700
MPN: 555278
A (in.): 1.50
B (in.): 10.50
C (in.): 5.25
D (in.): 1.13
E (in.): 4.00
F (in.): 2.25
Price:$541.83
Trade Size (in.): 1-3/4
Working Load Limit (lbs.): 91,700
MPN: 555279
A (in.): 1.75
B (in.): 12.00
C (in.): 6.00
D (in.): 1.50
E (in.): 5.25
F (in.): 2.75
Price:$1,019.76
