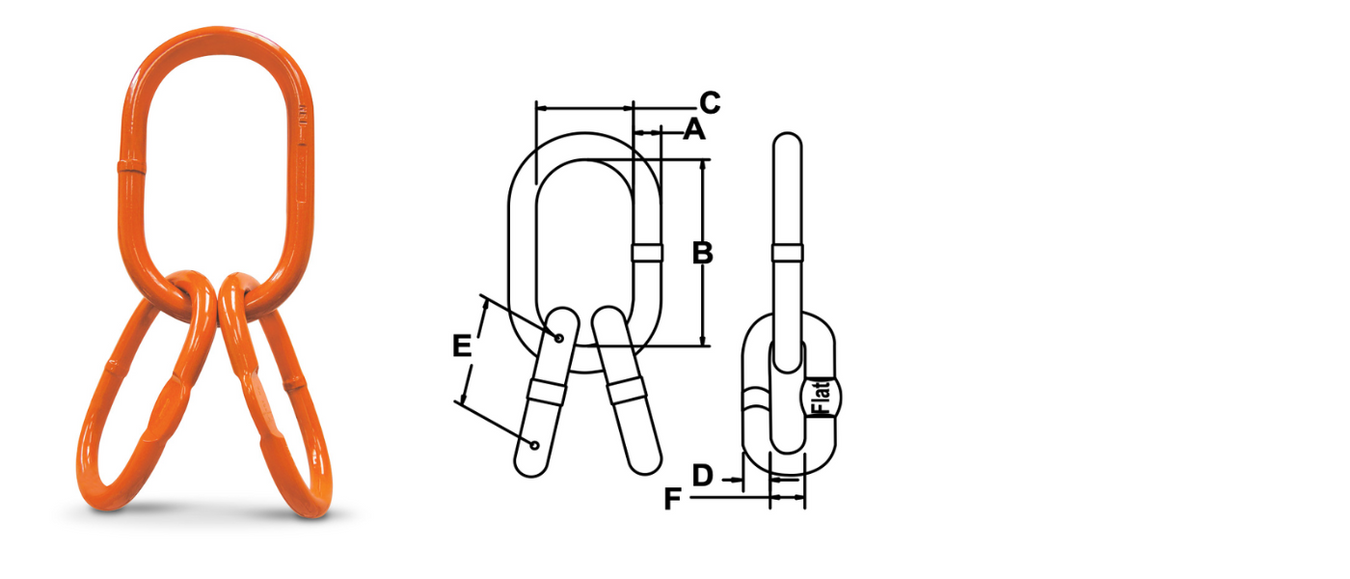

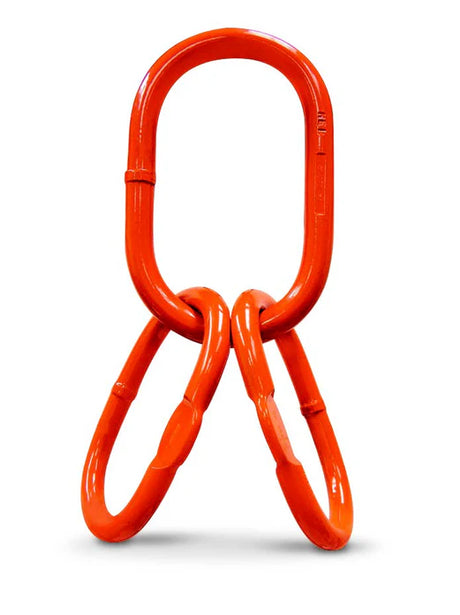

Sub-Assembly with Intermediate Links

WORKING LOAD LIMIT: 4,600 TO 178,050 LBS.

Benefits & Features

  • Designed to accept Herc-Alloy 800® chain, wire rope and synthetic attachments
  • Durable orange powder coated finish
  • 100% proof tested
  • May be used for mechanical and welded sling assemblies
  • Extra wide body is ideal for wire rope applications
  • Sizes up to 1-1/4" intermediate links available with flats to accommodate Omega links
  • 6:1 design factor

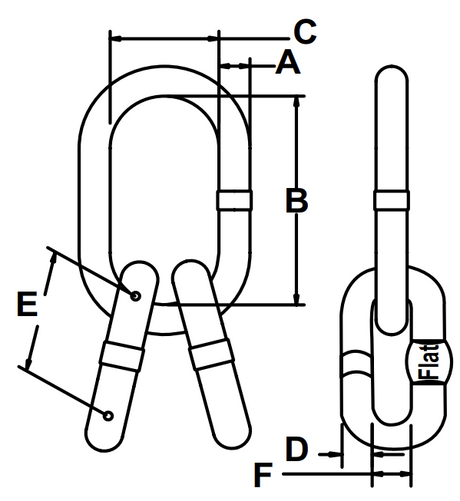

Trade Size (in.) Working Load Limit (lbs.) MPN A (in.) B (in.) C (in.) D (in.) E (in.) F (in.) Price Quantity
1/2 5,750 ML050SA 0.56 4.84 2.69 0.44 4.13 2.29 $115.59
5/8 9,000 ML063SA 0.63 5.29 2.98 0.56 4.84 2.69 $131.28
3/4 14,000 ML075SA 0.75 6.61 3.72 0.63 5.29 2.98 $140.42
7/8 17,300 ML087SA 0.88 7.35 4.14 0.63 5.29 2.98 $158.14
1 26,500 ML100SA 1.00 7.53 4.30 0.75 6.61 3.72 $208.75
1-1/4 37,400 ML125SA 1.25 9.26 5.29 1.00 7.53 4.30 $272.99
1-1/2 53,000 ML150SA 1.50 11.03 6.30 1.00 7.53 4.30 $572.39
1-3/4 72,150 ML175SA 1.75 12.86 7.35 1.25 9.26 5.29 $1,138.12
2 94,200 ML200SA 2.00 14.70 8.40 1.50 11.03 6.30 $1,572.24
2-1/4 119,200 ML225SA 2.25 16.54 9.45 1.75 12.86 7.35 $1,811.37

Products

Trade Size (in.): 1/2
Working Load Limit (lbs.): 5,750
MPN: ML050SA
A (in.): 0.56
B (in.): 4.84
C (in.): 2.69
D (in.): 0.44
E (in.): 4.13
F (in.): 2.29
Price:$115.59
Trade Size (in.): 5/8
Working Load Limit (lbs.): 9,000
MPN: ML063SA
A (in.): 0.63
B (in.): 5.29
C (in.): 2.98
D (in.): 0.56
E (in.): 4.84
F (in.): 2.69
Price:$131.28
Trade Size (in.): 3/4
Working Load Limit (lbs.): 14,000
MPN: ML075SA
A (in.): 0.75
B (in.): 6.61
C (in.): 3.72
D (in.): 0.63
E (in.): 5.29
F (in.): 2.98
Price:$140.42
Trade Size (in.): 7/8
Working Load Limit (lbs.): 17,300
MPN: ML087SA
A (in.): 0.88
B (in.): 7.35
C (in.): 4.14
D (in.): 0.63
E (in.): 5.29
F (in.): 2.98
Price:$158.14
Trade Size (in.): 1
Working Load Limit (lbs.): 26,500
MPN: ML100SA
A (in.): 1.00
B (in.): 7.53
C (in.): 4.30
D (in.): 0.75
E (in.): 6.61
F (in.): 3.72
Price:$208.75
Trade Size (in.): 1-1/4
Working Load Limit (lbs.): 37,400
MPN: ML125SA
A (in.): 1.25
B (in.): 9.26
C (in.): 5.29
D (in.): 1.00
E (in.): 7.53
F (in.): 4.30
Price:$272.99
Trade Size (in.): 1-1/2
Working Load Limit (lbs.): 53,000
MPN: ML150SA
A (in.): 1.50
B (in.): 11.03
C (in.): 6.30
D (in.): 1.00
E (in.): 7.53
F (in.): 4.30
Price:$572.39
Trade Size (in.): 1-3/4
Working Load Limit (lbs.): 72,150
MPN: ML175SA
A (in.): 1.75
B (in.): 12.86
C (in.): 7.35
D (in.): 1.25
E (in.): 9.26
F (in.): 5.29
Price:$1,138.12
Trade Size (in.): 2
Working Load Limit (lbs.): 94,200
MPN: ML200SA
A (in.): 2.00
B (in.): 14.70
C (in.): 8.40
D (in.): 1.50
E (in.): 11.03
F (in.): 6.30
Price:$1,572.24
Trade Size (in.): 2-1/4
Working Load Limit (lbs.): 119,200
MPN: ML225SA
A (in.): 2.25
B (in.): 16.54
C (in.): 9.45
D (in.): 1.75
E (in.): 12.86
F (in.): 7.35
Price:$1,811.37
