Swivel Rigging Hook Alloy

Working Load Limit: 1 to 22 tons

BENEFITS & FEATURES

  • Design factor 5:1
  • Pre-drilled for latches
  • Hooks furnished with or without latches
  • Powder coated orange
  • Hooks are heat treated,
    quenched and tempered

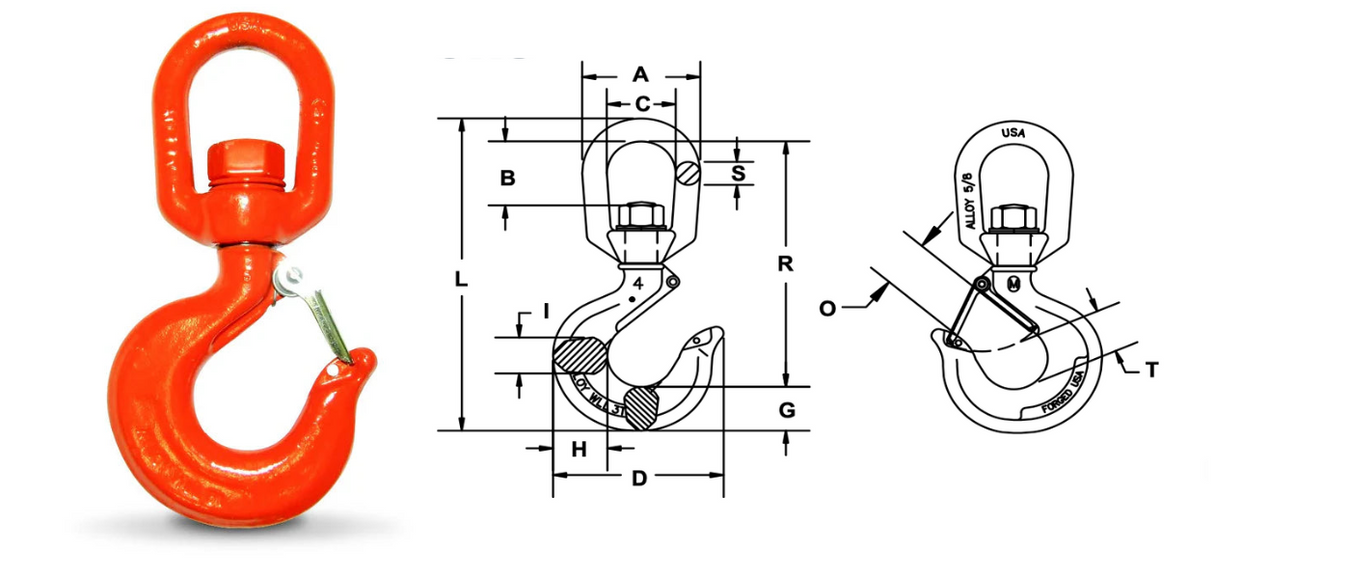

Working Load Limit (Ton) MPN A (in.) B (in.) C (in.) D (in.) G (in.) H (in.) I (in.) L (in.) R (in.) S (in.) T (in.) O (in.) Price Quantity
1 M3502A 2.00 1.11 1.31 3.06 0.87 1.05 0.63 5.83 4.63 0.38 0.87 0.93 $72.85
1-1/2 M3503A 2.50 1.38 1.50 3.33 0.94 1.11 0.71 6.83 5.44 0.50 0.97 0.97 $79.07
2 M3504A 3.00 1.65 1.75 3.67 1.06 1.21 0.88 7.76 6.25 0.63 1.03 1.06 $85.88
3 M3505A 3.00 1.65 1.75 4.20 1.27 1.43 0.94 8.40 6.49 0.63 1.16 1.16 $111.93
5 M3507A 3.50 1.77 2.00 5.11 1.44 1.63 1.31 9.76 7.53 0.75 1.53 1.41 $170.35
7 M3509A 4.75 2.39 2.75 6.24 1.82 2.01 1.68 12.42 9.67 1.00 1.94 1.69 $301.07
11 M3511A 5.50 2.55 3.25 7.69 2.25 2.63 1.88 14.89 12.06 1.13 2.46 2.22 $547.27
15 M3515A 6.00 2.47 3.50 8.37 2.59 2.94 2.19 15.79 11.95 1.25 2.62 2.23 $835.24
22 M3522A 7.75 3.82 4.75 10.19 3.00 3.50 2.69 21.18 16.68 1.50 2.74 3.05 $1,656.87

Products

Working Load Limit (Ton): 1
MPN: M3502A
A (in.): 2.00
B (in.): 1.11
C (in.): 1.31
D (in.): 3.06
G (in.): 0.87
H (in.): 1.05
I (in.): 0.63
L (in.): 5.83
R (in.): 4.63
S (in.): 0.38
T (in.): 0.87
O (in.): 0.93
Price:$72.85
Working Load Limit (Ton): 1-1/2
MPN: M3503A
A (in.): 2.50
B (in.): 1.38
C (in.): 1.50
D (in.): 3.33
G (in.): 0.94
H (in.): 1.11
I (in.): 0.71
L (in.): 6.83
R (in.): 5.44
S (in.): 0.50
T (in.): 0.97
O (in.): 0.97
Price:$79.07
Working Load Limit (Ton): 2
MPN: M3504A
A (in.): 3.00
B (in.): 1.65
C (in.): 1.75
D (in.): 3.67
G (in.): 1.06
H (in.): 1.21
I (in.): 0.88
L (in.): 7.76
R (in.): 6.25
S (in.): 0.63
T (in.): 1.03
O (in.): 1.06
Price:$85.88
Working Load Limit (Ton): 3
MPN: M3505A
A (in.): 3.00
B (in.): 1.65
C (in.): 1.75
D (in.): 4.20
G (in.): 1.27
H (in.): 1.43
I (in.): 0.94
L (in.): 8.40
R (in.): 6.49
S (in.): 0.63
T (in.): 1.16
O (in.): 1.16
Price:$111.93
Working Load Limit (Ton): 5
MPN: M3507A
A (in.): 3.50
B (in.): 1.77
C (in.): 2.00
D (in.): 5.11
G (in.): 1.44
H (in.): 1.63
I (in.): 1.31
L (in.): 9.76
R (in.): 7.53
S (in.): 0.75
T (in.): 1.53
O (in.): 1.41
Price:$170.35
Working Load Limit (Ton): 7
MPN: M3509A
A (in.): 4.75
B (in.): 2.39
C (in.): 2.75
D (in.): 6.24
G (in.): 1.82
H (in.): 2.01
I (in.): 1.68
L (in.): 12.42
R (in.): 9.67
S (in.): 1.00
T (in.): 1.94
O (in.): 1.69
Price:$301.07
Working Load Limit (Ton): 11
MPN: M3511A
A (in.): 5.50
B (in.): 2.55
C (in.): 3.25
D (in.): 7.69
G (in.): 2.25
H (in.): 2.63
I (in.): 1.88
L (in.): 14.89
R (in.): 12.06
S (in.): 1.13
T (in.): 2.46
O (in.): 2.22
Price:$547.27
Working Load Limit (Ton): 15
MPN: M3515A
A (in.): 6.00
B (in.): 2.47
C (in.): 3.50
D (in.): 8.37
G (in.): 2.59
H (in.): 2.94
I (in.): 2.19
L (in.): 15.79
R (in.): 11.95
S (in.): 1.25
T (in.): 2.62
O (in.): 2.23
Price:$835.24
Working Load Limit (Ton): 22
MPN: M3522A
A (in.): 7.75
B (in.): 3.82
C (in.): 4.75
D (in.): 10.19
G (in.): 3.00
H (in.): 3.50
I (in.): 2.69
L (in.): 21.18
R (in.): 16.68
S (in.): 1.50
T (in.): 2.74
O (in.): 3.05
Price:$1,656.87
