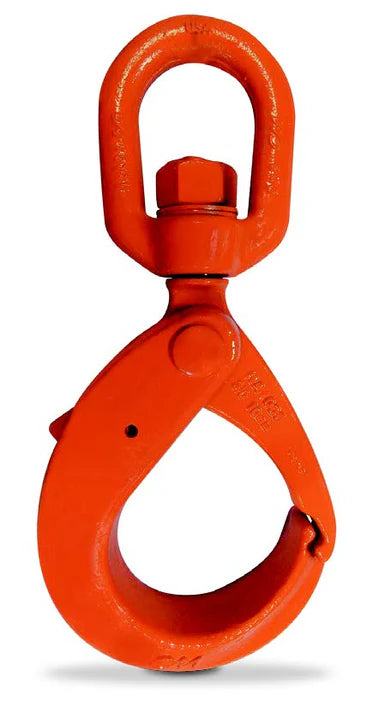

Swivel Self Locking Hooks Bushing Style Grade 100

WORKING LOAD LIMIT: 4,300 TO 22,600 LBS.

Benefits & Features

The eye easily positions to attach to the load
100% proof tested
Meets ASTM A952 standards
Certification of test available
Durable orange powder coated finish
For welded 7/32" chain sling use 9/32" swivel Lodelok hook
Positive locking hook
4:1 design factor
Bushing Swivel Hooks: The load must be swiveled and turned into position BEFORE attaching, lifting or moving a load.

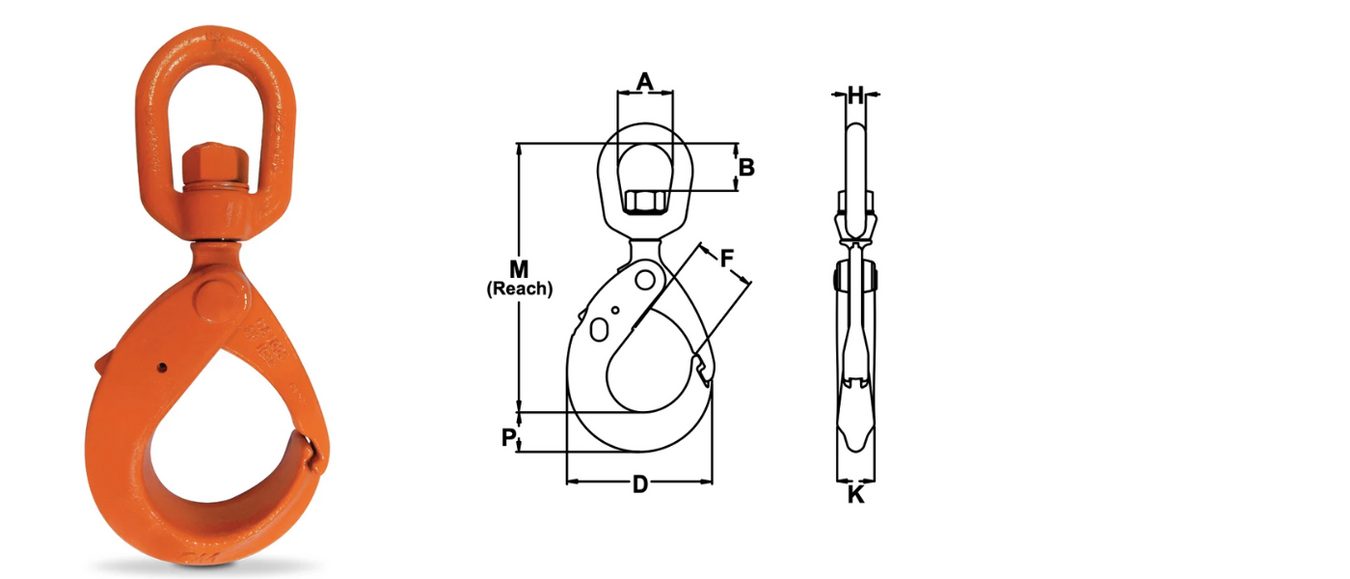

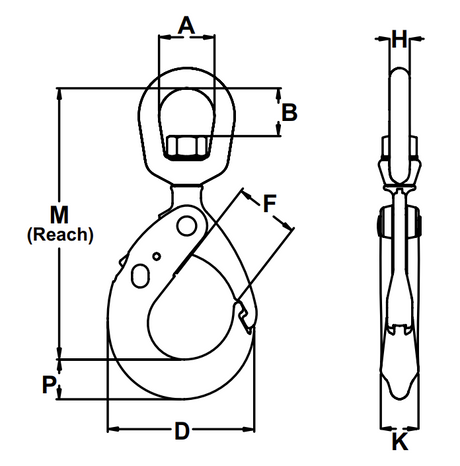

Size (in.)	Working Load Limit (lbs.)	MPN	H (in.)	M (in.)	P (in.)	D (in.)	F (in.)	A (in.)	B (in.)	K (in.)	Price	Quantity
9/32" Swivel Self Locking Hook Bushing Grade 100	9/32	4,300	M676005	0.62	7.17	0.88	3.77	1.64	1.50	1.33	0.91	$202.61

3/8" Swivel Self Locking Hook Bushing Grade 100	3/8	8,800	M676010	0.77	8.73	1.07	4.76	2.26	1.75	1.63	1.15	$243.55

1/2" Swivel Self Locking Hook Bushing Grade 100	1/2	15,000	M676015	0.93	11.18	1.58	6.26	2.91	2.00	1.76	1.47	$296.48

5/8" Swivel Self Locking Hook Bushing Grade 100	5/8	22,600	M676020	0.62	7.17	0.88	3.77	1.64	1.50	1.33	0.91	$406.59

Products

Size (in.): 9/32

Working Load Limit (lbs.): 4,300

MPN: M676005

H (in.): 0.62

M (in.): 7.17

P (in.): 0.88

D (in.): 3.77

F (in.): 1.64

A (in.): 1.50

B (in.): 1.33

K (in.): 0.91

Price:$202.61

Size (in.): 3/8

Working Load Limit (lbs.): 8,800

MPN: M676010

H (in.): 0.77

M (in.): 8.73

P (in.): 1.07

D (in.): 4.76

F (in.): 2.26

A (in.): 1.75

B (in.): 1.63

K (in.): 1.15

Price:$243.55

Size (in.): 1/2

Working Load Limit (lbs.): 15,000

MPN: M676015

H (in.): 0.93

M (in.): 11.18

P (in.): 1.58

D (in.): 6.26

F (in.): 2.91

A (in.): 2.00

B (in.): 1.76

K (in.): 1.47

Price:$296.48

Size (in.): 5/8

Working Load Limit (lbs.): 22,600

MPN: M676020
