Skookum T Series Blocks

  • Work-hardening manganese steel sheave maximize wire rope & sheave life.
  • Recessed sheave design prevents wire rope from binding between sheave and block side.
  • Half side design for strength with minimized weight.
  • Versatile draw pin allow for rapid reeving & exchange of attaching style.
  • Rugged cast alloy steel sides for demanding environments.
  • ASME B30.26-1 compliant

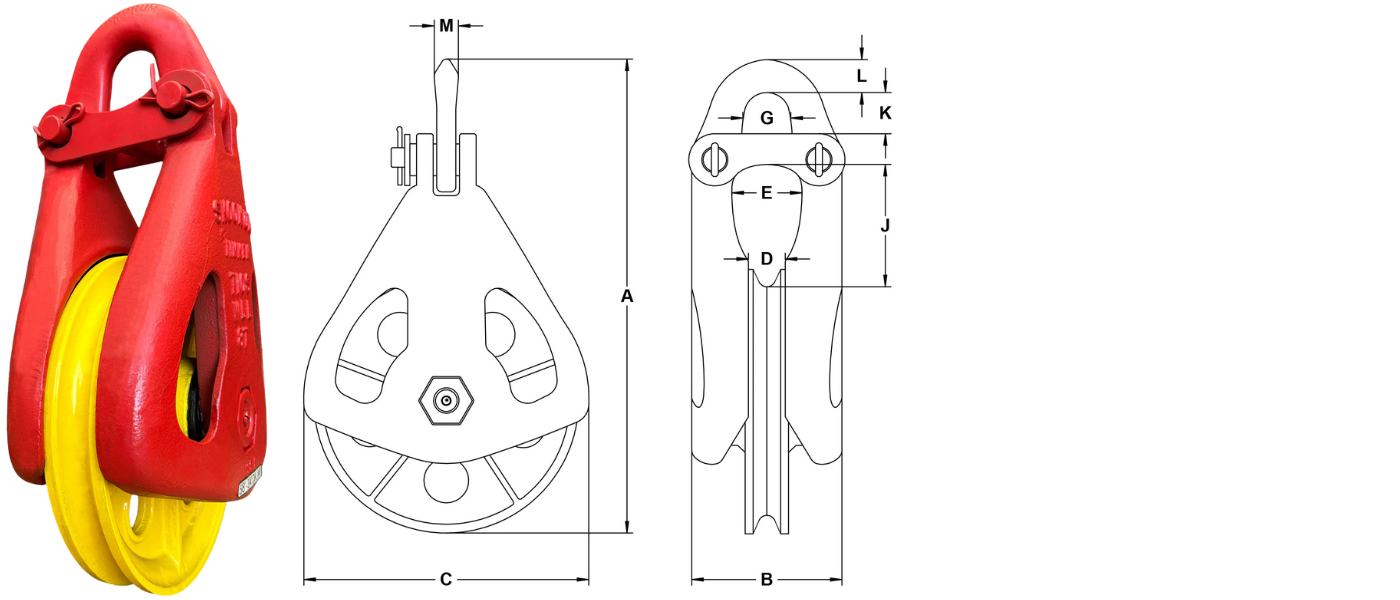

MPN End Fittings Sheave Diameter Wire Rope Min. Wire Rope Max. Working Load Limit (Ton) A (in.) B (in.) C (in.) D (in.) E (in.) G (in.) J (in.) K (in.) L (in.) M (in.) Price Quantity
553703 REGULAR YOKE 10" 7/8" 1" 17.5 19 6.25 11 2 2.5 2.75 2 2.5 2 1.75 $2,550.12
553702 SWIVEL SHACKLE 10" 7/8" 1" 17.5 19 6.25 11 2 2.5 2.75 2 2.5 2 1.75 $2,948.56
565103 REGULAR YOKE 12" 7/8" 1" 17.5 22 6.25 13 2 2.5 2.75 3.5 2.75 2 1.88 $2,489.41
565102 SWIVEL SHACKLE 12" 7/8" 1" 17.5 22 6.25 13 2 2.5 2.75 3.5 2.75 2 1.88 $2,981.34
558003 REGULAR YOKE 10" 3/4" 3/4" 8.0 18 5.5 10.75 1.38 2.25 1.63 4.25 2.5 1.5 1.31 $1,739.16
558001 SWIVEL HOOK 10" 3/4" 3/4" 8.0 18 5.5 10.75 1.38 2.25 1.63 4.25 2.5 1.5 1.31 $2,102.13
558002 SWIVEL SHACKLE 10" 3/4" 3/4" 8.0 18 5.5 10.75 1.38 2.25 1.63 4.25 2.5 1.5 1.31 $2,022.00
557903 REGULAR YOKE 8" 1/2" 5/8" 8.0 16 5.5 8.75 1 2 1.38 4.25 2.5 1.38 1.31 $1,323.08
557903 SWIVEL HOOK 8" 1/2" 5/8" 8.0 16 5.5 8.75 1 2 1.38 4.25 2.5 1.38 1.31 $1,950.49
557902 SWIVEL SHACKLE 8" 1/2" 5/8" 8.0 16 5.5 8.75 1 2 1.38 4.25 2.5 1.38 1.31 $1,914.25

Products

MPN: 553703
End Fittings: REGULAR YOKE
Sheave Diameter: 10"
Wire Rope Min.: 7/8"
Wire Rope Max.: 1"
Working Load Limit (Ton): 17.5
A (in.): 19
B (in.): 6.25
C (in.): 11
D (in.): 2
E (in.): 2.5
G (in.): 2.75
J (in.): 2
K (in.): 2.5
L (in.): 2
M (in.): 1.75
Price:$2,550.12
MPN: 553702
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 10"
Wire Rope Min.: 7/8"
Wire Rope Max.: 1"
Working Load Limit (Ton): 17.5
A (in.): 19
B (in.): 6.25
C (in.): 11
D (in.): 2
E (in.): 2.5
G (in.): 2.75
J (in.): 2
K (in.): 2.5
L (in.): 2
M (in.): 1.75
Price:$2,948.56
MPN: 565103
End Fittings: REGULAR YOKE
Sheave Diameter: 12"
Wire Rope Min.: 7/8"
Wire Rope Max.: 1"
Working Load Limit (Ton): 17.5
A (in.): 22
B (in.): 6.25
C (in.): 13
D (in.): 2
E (in.): 2.5
G (in.): 2.75
J (in.): 3.5
K (in.): 2.75
L (in.): 2
M (in.): 1.88
Price:$2,489.41
MPN: 565102
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 12"
Wire Rope Min.: 7/8"
Wire Rope Max.: 1"
Working Load Limit (Ton): 17.5
A (in.): 22
B (in.): 6.25
C (in.): 13
D (in.): 2
E (in.): 2.5
G (in.): 2.75
J (in.): 3.5
K (in.): 2.75
L (in.): 2
M (in.): 1.88
Price:$2,981.34
MPN: 558003
End Fittings: REGULAR YOKE
Sheave Diameter: 10"
Wire Rope Min.: 3/4"
Wire Rope Max.: 3/4"
Working Load Limit (Ton): 8.0
A (in.): 18
B (in.): 5.5
C (in.): 10.75
D (in.): 1.38
E (in.): 2.25
G (in.): 1.63
J (in.): 4.25
K (in.): 2.5
L (in.): 1.5
M (in.): 1.31
Price:$1,739.16
MPN: 558001
End Fittings: SWIVEL HOOK
Sheave Diameter: 10"
Wire Rope Min.: 3/4"
Wire Rope Max.: 3/4"
Working Load Limit (Ton): 8.0
A (in.): 18
B (in.): 5.5
C (in.): 10.75
D (in.): 1.38
E (in.): 2.25
G (in.): 1.63
J (in.): 4.25
K (in.): 2.5
L (in.): 1.5
M (in.): 1.31
Price:$2,102.13
MPN: 558002
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 10"
Wire Rope Min.: 3/4"
Wire Rope Max.: 3/4"
Working Load Limit (Ton): 8.0
A (in.): 18
B (in.): 5.5
C (in.): 10.75
D (in.): 1.38
E (in.): 2.25
G (in.): 1.63
J (in.): 4.25
K (in.): 2.5
L (in.): 1.5
M (in.): 1.31
Price:$2,022.00
MPN: 557903
End Fittings: REGULAR YOKE
Sheave Diameter: 8"
Wire Rope Min.: 1/2"
Wire Rope Max.: 5/8"
Working Load Limit (Ton): 8.0
A (in.): 16
B (in.): 5.5
C (in.): 8.75
D (in.): 1
E (in.): 2
G (in.): 1.38
J (in.): 4.25
K (in.): 2.5
L (in.): 1.38
M (in.): 1.31
Price:$1,323.08
MPN: 557903
End Fittings: SWIVEL HOOK
Sheave Diameter: 8"
Wire Rope Min.: 1/2"
Wire Rope Max.: 5/8"
Working Load Limit (Ton): 8.0
A (in.): 16
B (in.): 5.5
C (in.): 8.75
D (in.): 1
E (in.): 2
G (in.): 1.38
J (in.): 4.25
K (in.): 2.5
L (in.): 1.38
M (in.): 1.31
Price:$1,950.49
MPN: 557902
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 8"
Wire Rope Min.: 1/2"
Wire Rope Max.: 5/8"
Working Load Limit (Ton): 8.0
A (in.): 16
B (in.): 5.5
C (in.): 8.75
D (in.): 1
E (in.): 2
G (in.): 1.38
J (in.): 4.25
K (in.): 2.5
L (in.): 1.38
M (in.): 1.31
Price:$1,914.25
