TDH Horizontal Lifting Clamps for Bending Sheets

Lightweight heavy duty clamp for safe and easy lifting of bending sheets

Application

For horizontal lifting and transporting of sheets that will bend or deflect when being lifted
Terrier TDH lifting clamps must always be used in pairs (or multiple pairs)
Jaw openings available from: 0 to 50 mm
Working load limit (WLL) 1000 - 6000kg

Features and benefits

Compact design and high lifting capacity
Lightweight design for easy handling
Tough quality heavy duty welded body

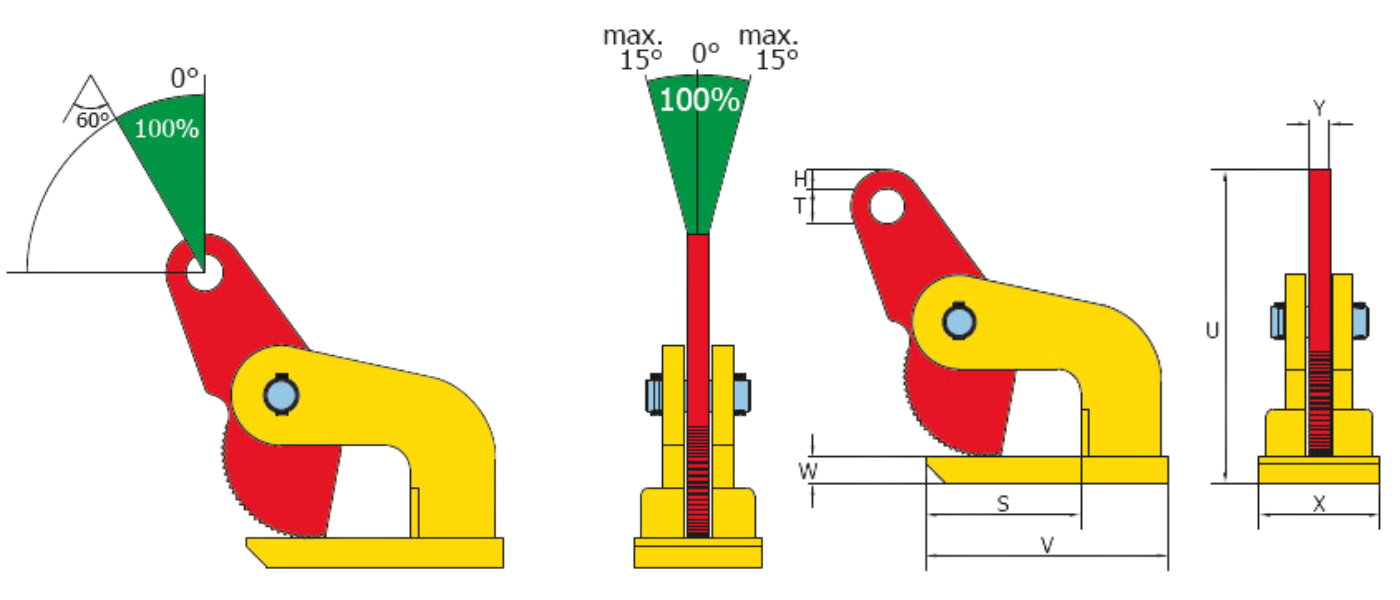

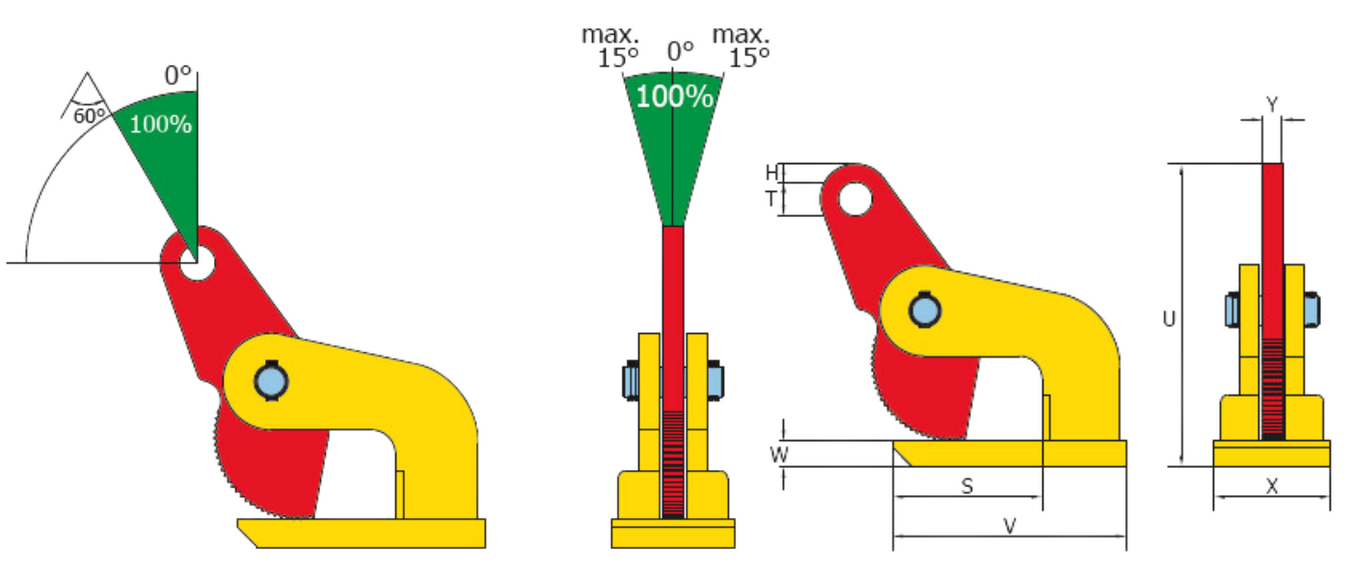

MPN	Type	Working Load Limit (lbs.)	Jaw Opening (in.)	V (in.)	S (in.)	W (in.)	T (in.)	H (in.)	X (in.)	U (in.)	Y (in.)	Price
970100	1 TDH	1,100 lb/pc	0 - 0.59	5.51	3.90	0.39	0.88	0.53	2.56	6.57	0.59	$350.52

970200	2 TDH	2,200 lb/pc	0 - 1.37	7.09	4.49	0.79	1.02	0.55	3.54	9.17	0.59	$414.23

970400	4 TDH	4,400 lb/pc	0 - 2.00	9.25	5.08	1.18	1.57	0.98	5.12	11.97	0.79	$789.57

970600	6 TDH	6,600 lb/pc	0 - 2.00	9.25	5.08	1.18	1.57	0.98	5.12	11.97	0.79	$905.48

Products

MPN: 970100

Type: 1 TDH

Working Load Limit (lbs.) : 1,100 lb/pc

Jaw Opening (in.) : 0 - 0.59

V (in.): 5.51

S (in.): 3.90

W (in.): 0.39

T (in.): 0.88

H (in.): 0.53

X (in.): 2.56

U (in.): 6.57

Y (in.): 0.59

Price:$350.52

MPN: 970200

Type: 2 TDH

Working Load Limit (lbs.) : 2,200 lb/pc

Jaw Opening (in.) : 0 - 1.37

V (in.): 7.09

S (in.): 4.49

W (in.): 0.79

T (in.): 1.02

H (in.): 0.55

X (in.): 3.54

U (in.): 9.17

Y (in.): 0.59

Price:$414.23

MPN: 970400

Type: 4 TDH

Working Load Limit (lbs.) : 4,400 lb/pc

Jaw Opening (in.) : 0 - 2.00

V (in.): 9.25

S (in.): 5.08

W (in.): 1.18

T (in.): 1.57

H (in.): 0.98

X (in.): 5.12

U (in.): 11.97

Y (in.): 0.79

Price:$789.57

MPN: 970600

Type: 6 TDH

Working Load Limit (lbs.) : 6,600 lb/pc
