Ultra Lifting Rings

Alloy Steel
200% Proof-Load Tested with Serial Number for Traceability
Magnetic Particle Inspected
Certified Heat Treatment
100% From 0° - 90°
Meets or exceeds requirements

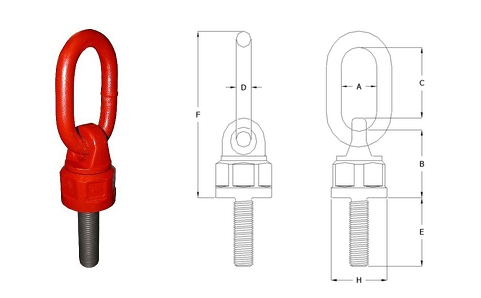

MPN Rated Load Thread Size A B C D E F H Weight (lbs) Price Quantity
44104 800 lbs 5/16" - 18 1 1/16 in 1 1/2 in 1 17/32 in 5/16 in 1/2 in 3.66 in 1.42 in 0.6 lbs $96.46
44106 1,000 lbs 3/8" - 16 1 1/16 in 1 1/2 in 1 17/32 in 5/16 in 1/2 in 3.66 in 1.42 in 0.6 lbs $96.46
44110 2,000 lbs 7/16" - 14 1 3/8 in 2 1/2 in 2 1/4 in 1/2 in 3/4 in 5.80 in 2.36 in 2.6 lbs $117.15
44112 2,500 lbs 1/2" - 13 1 3/8 in 2 1/2 in 2 1/4 in 1/2 in 3/4 in 5.83 in 2.36 in 2.6 lbs $117.15
44114 2,500 lbs 9/16" - 12 1 3/8 in 2 1/2 in 2 1/4 in 1/2 in 7/8 in 5.83 in 2.36 in 2.6 lbs $117.15
44116 4,000 lbs 5/8" - 11 1 3/8 in 2 1/2 in 2 1/4 in 1/2 in 1 in 5.83 in 2.36 in 2.6 lbs $117.15
44120 5,000 lbs 3/4" - 10 1 1/2 in 3 in 2 3/4 in 3/4 in 1 1/4 in 7.20 in 2.75 in 5 lbs $231.94
44122 8,000 lbs 7/8" - 9 1 1/2 in 3 in 2 3/4 in 3/4 in 1 1/2 in 7.20 in 2.75 in 5 lbs $231.94
44124 10,000 lbs 1" - 8 1 1/2 in 3 in 2 3/4 in 3/4 in 1 1/2 in 7.20 in 2.75 in 5 lbs $231.94
44146 11,000 lbs 1 1/4" - 7 2 in 3 43/64 in 3 55/64 in 7/8 in 2 in 9.1 in 3.15 in 9 lbs $413.49
44150 17,600 lbs 1 1/2" - 6 2 in 3 43/64 in 3 55/64 in 7/8 in 2 1/8 in 9.1 in 3.15 in 9 lbs $413.49
44160 22,000 lbs 2" - 4 1/2 2 1/2 in 4 in 4 1/4 in 1 in 3 in 10.1 in 3.66 in 13.6 lbs $620.03
44163 22,000 lbs 2" - 4 1/2 2 1/2 in 4 in 4 1/4 in 1 in 6 in 10.1 in 3.66 in 16.3 lbs $663.42
44166 22,000 lbs 2" - 4 1/2 2 1/2 in 4 in 4 1/4 in 1 in 12 in 10.1 in 3.66 in 21.6 lbs $778.56
44162 22,000 lbs 2" - 8 2 1/2 in 4 in 4 1/4 in 1 in 3 in 10.1 in 3.66 in 13.6 lbs $620.03
44164 22,000 lbs 2" - 8 2 1/2 in 4 in 4 1/4 in 1 in 6 in 10.1 in 3.66 in 16.3 lbs $663.42
44168 22,000 lbs 2" - 8 2 1/2 in 4 in 4 1/4 in 1 in 12 in 10.1 in 3.66 in 21.6 lbs $778.56
44170 33,000 lbs 2 1/2 - 4 2 53/64 in 5 11/64 in 4 27/32 in 1 1/4 in 4 in 12.29 in 4.13 in 23.4 lbs $918.99
44172 33,000 lbs 2 1/2 - 8 2 53/64 in 5 11/64 in 4 27/32 in 1 1/4 in 4 in 12.29 in 4.13 in 23.4 lbs $918.99
44176 33,000 lbs 2 1/2 - 4 2 53/64 in 5 11/64 in 4 27/32 in 1 1/4 in 8 in 12.29 in 4.13 in 29 lbs $997.70
44177 33,000 lbs 2 1/2 - 8 2 53/64 in 5 11/64 in 4 27/32 in 1 1/4 in 8 in 12.29 in 4.13 in 29 lbs $997.70
44178 33,000 lbs 2 1/2 - 4 2 53/64 in 5 11/64 in 4 27/32 in 1 1/4 in 12 in 12.29 in 4.13 in 34.6 lbs $1,121.87
44179 33,000 lbs 2 1/2 - 8 2 53/64 in 5 11/64 in 4 27/32 in 1 1/4 in 12 in 12.29 in 4.13 in 34.6 lbs $1,121.87
44302 400 kg M8 x 1.25 1 1/16 in 1 1/2 in 1 17/32 in 5/16 in 12 mm 3.66 in 1.42 in 0.6 lbs $99.36
44304 500 kg M10 x 1.50 1 1/16 in 1 1/2 in 1 17/32 in 5/16 in 19 mm 3.66 in 1.42 in 0.6 lbs $99.36
44310 1,050 kg M12 x 1.75 1 3/8 in 2 1/2 in 2 1/4 in 1/2 in 20 mm 5.83 in 2.36 in 2.6 lbs $120.05
44312 1,150 kg M14 x 2.00 1 3/8 in 2 1/2 in 2 1/4 in 1/2 in 31 mm 5.83 in 2.36 in 2.6 lbs $120.05
44314 1,900 kg M16 x 2.00 1 3/8 in 2 1/2 in 2 1/4 in 1/2 in 31 mm 5.83 in 2.36 in 2.6 lbs $120.05
44320 2,150 kg M20 x 2.50 1 1/2 in 3 in 2 3/4 in 3/4 in 38 mm 7.20 in 2.75 in 5 lbs $236.56
44322 2,250 kg M22 x 2.50 1 1/2 in 3 in 2 3/4 in 3/4 in 38 mm 7.20 in 2.75 in 5 lbs $236.56
44324 4,200 kg M24 x 3.00 1 1/2 in 3 in 2 3/4 in 3/4 in 38 mm 7.20 in 2.75 in 5 lbs $236.56
44346 5,000 kg M30 x 3.50 2 in 3 43/64 in 3 55/64 in 7/8 in 50 mm 9.1 in 3.15 in 9 lbs $420.54
44348 7,000 kg M33 x 3.50 2 in 3 43/64 in 3 55/64 in 7/8 in 50 mm 9.1 in 3.15 in 9 lbs $424.88
44350 8,000 kg M36 x 4.00 2 in 3 43/64 in 3 55/64 in 7/8 in 54 mm 9.1 in 3.15 in 9 lbs $430.67
44355 8,000 kg M39 x 4.00 2 in 3 43/64 in 3 55/64 in 7/8 in 58 mm 9.1 in 3.15 in 9 lbs $478.42
44360 10,000 kg M42 x 4.50 2 1/2 in 4 in 4 1/4 in 1 in 63 mm 10.1 in 3.66 in 13 lbs $627.06
44362 10,000 kg M42 x 4.50 2 1/2 in 4 in 4 1/4 in 1 in 152 mm 10.1 in 3.66 in 15 lbs $666.45
44363 10,000 kg M42 x 4.50 2 1/2 in 4 in 4 1/4 in 1 in 304 mm 10.1 in 3.66 in 19 lbs $851.60
44367 10,000 kg M45 x 4.50 2 1/2 in 4 in 4 1/4 in 1 in 68 mm 10.1 in 3.66 in 14 lbs $699.44
44365 10,000 kg M48 x 5.00 2 1/2 in 4 in 4 1/4 in 1 in 68 mm 10.1 in 3.66 in 13.5 lbs $630.16
44366 10,000 kg M48 x 5.00 2 1/2 in 4 in 4 1/4 in 1 in 152 mm 10.1 in 3.66 in 16.1 lbs $673.68
44364 10,000 kg M48 x 5.00 2 1/2 in 4 in 4 1/4 in 1 in 304 mm 10.1 in 3.66 in 21 lbs $866.06
44370 15,000 kg M56 x 5.50 2 53/64 in 5 11/64 in 4 27/32 in 1 1/4 in 84 mm 12.29 in 4.13 in 22 lbs $947.94
44376 15,000 kg M56 x 5.50 2 53/64 in 5 11/64 in 4 27/32 in 1 1/4 in 203 mm 12.29 in 4.13 in 27 lbs $991.33
44384 15,000 kg M56 x 5.50 2 53/64 in 5 11/64 in 4 27/32 in 1 1/4 in 304 mm 12.29 in 4.13 in 31 lbs $1,049.18
44372 15,000 kg M60 x 5.50 2 53/64 in 5 11/64 in 4 27/32 in 1 1/4 in 90 mm 12.29 in 4.13 in 23 lbs $955.47
44378 15,000 kg M60 x 5.50 2 53/64 in 5 11/64 in 4 27/32 in 1 1/4 in 203 mm 12.29 in 4.13 in 28 lbs $999.14
44386 15,000 kg M60 x 5.50 2 53/64 in 5 11/64 in 4 27/32 in 1 1/4 in 304 mm 12.29 in 4.13 in 33 lbs $1,056.99
44375 15,000 kg M64 x 6.00 2 53/64 in 5 11/64 in 4 27/32 in 1 1/4 in 95 mm 12.29 in 4.13 in 24 lbs $977.15
44380 15,000 kg M64 x 6.00 2 53/64 in 5 11/64 in 4 27/32 in 1 1/4 in 203 mm 12.29 in 4.13 in 30 lbs $1,020.83
