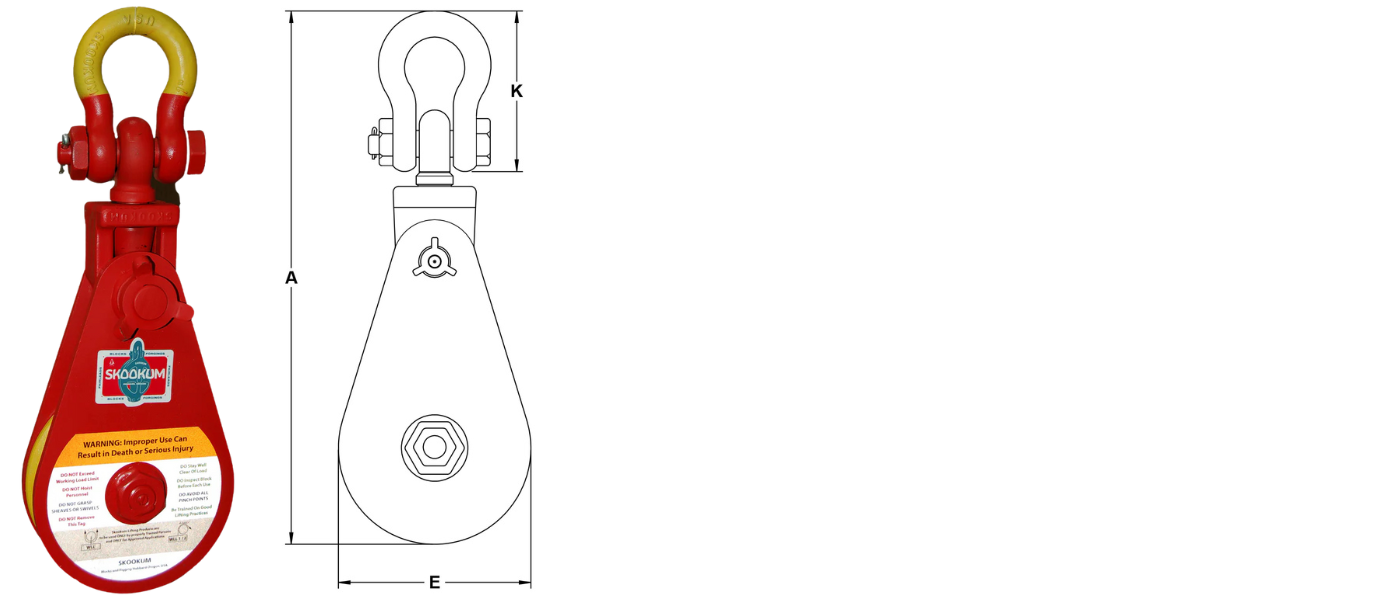

Skookum Alloy Snatch Blocks with Shackles

  • Skookum Gold Standard forgings heat treated for toughness.
  • Interchangeable hook & shackle connector options.
  • Available with bronze bushings, composite bushings, or roller bearings.
  • Captured attaching pin for convenient reeving while block is suspended.
  • ASME B30.26-1 compliant
MPN End Fittings Sheave Diameter Wire Rope Min. Wire Rope Max. Working Load Limit (Ton) A (in.) D (in.) E (in.) F (in.) G (in.) K (in.) Price Quantity
1000342 SWIVEL SHACKLE 10" 3/4" 7/8" 15 25.13 4.43 10.25 1.97 1.13 9.38 $1,925.34
1000703 SWIVEL SHACKLE 8" 3/4" 7/8" 15 23.13 4.43 8.25 1.97 1.13 9.38 $1,768.95
1000809 SWIVEL SHACKLE 10" 1" 1-1/8" 20 27.69 6.19 10.13 2.56 1.26 10.38 $2,381.08
1000712 SWIVEL SHACKLE 8" 1" 1-1/8" 20 25.69 6.19 8.13 2.56 1.26 10.38 $2,168.36
1000137 SWIVEL SHACKLE 4" 1/4" 3/8" 4 12.75 3.3 4.06 1.5 1 5.22 $771.59
1000152 SWIVEL SHACKLE 10" 5/8" 3/4" 8 20.46 4.25 10 1.91 1.21 5.65 $1,363.59
1000143 SWIVEL SHACKLE 6" 5/8" 3/4" 8 16.46 4.25 6 1.91 1.21 5.65 $1,073.63
1000146 SWIVEL SHACKLE 8" 5/8" 3/4" 8 18.46 4.25 8 1.91 1.21 5.65 $1,276.98

Products

MPN: 1000342
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 10"
Wire Rope Min.: 3/4"
Wire Rope Max.: 7/8"
Working Load Limit (Ton): 15
A (in.): 25.13
D (in.): 4.43
E (in.): 10.25
F (in.): 1.97
G (in.): 1.13
K (in.): 9.38
Price:$1,925.34
MPN: 1000703
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 8"
Wire Rope Min.: 3/4"
Wire Rope Max.: 7/8"
Working Load Limit (Ton): 15
A (in.): 23.13
D (in.): 4.43
E (in.): 8.25
F (in.): 1.97
G (in.): 1.13
K (in.): 9.38
Price:$1,768.95
MPN: 1000809
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 10"
Wire Rope Min.: 1"
Wire Rope Max.: 1-1/8"
Working Load Limit (Ton): 20
A (in.): 27.69
D (in.): 6.19
E (in.): 10.13
F (in.): 2.56
G (in.): 1.26
K (in.): 10.38
Price:$2,381.08
MPN: 1000712
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 8"
Wire Rope Min.: 1"
Wire Rope Max.: 1-1/8"
Working Load Limit (Ton): 20
A (in.): 25.69
D (in.): 6.19
E (in.): 8.13
F (in.): 2.56
G (in.): 1.26
K (in.): 10.38
Price:$2,168.36
MPN: 1000137
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 4"
Wire Rope Min.: 1/4"
Wire Rope Max.: 3/8"
Working Load Limit (Ton): 4
A (in.): 12.75
D (in.): 3.3
E (in.): 4.06
F (in.): 1.5
G (in.): 1
K (in.): 5.22
Price:$771.59
MPN: 1000152
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 10"
Wire Rope Min.: 5/8"
Wire Rope Max.: 3/4"
Working Load Limit (Ton): 8
A (in.): 20.46
D (in.): 4.25
E (in.): 10
F (in.): 1.91
G (in.): 1.21
K (in.): 5.65
Price:$1,363.59
MPN: 1000143
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 6"
Wire Rope Min.: 5/8"
Wire Rope Max.: 3/4"
Working Load Limit (Ton): 8
A (in.): 16.46
D (in.): 4.25
E (in.): 6
F (in.): 1.91
G (in.): 1.21
K (in.): 5.65
Price:$1,073.63
MPN: 1000146
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 8"
Wire Rope Min.: 5/8"
Wire Rope Max.: 3/4"
Working Load Limit (Ton): 8
A (in.): 18.46
D (in.): 4.25
E (in.): 8
F (in.): 1.91
G (in.): 1.21
K (in.): 5.65
Price:$1,276.98
