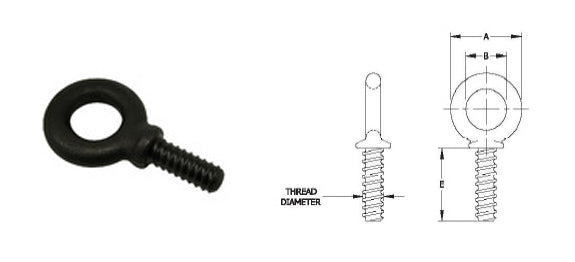

Forged Alloy Coil Shoulder Eye Bolts

Material: Alloy Steel

Finish: Black Oxide or Hot-Dipped Galvanized

Thread: Full Thread

Caution: Working load limit is for straight lifts. Side lifts should be avoided

MPN	WLL	Thread Type	Thread Diameter	A	B	E	Price	Quantity
3/4 - 3 1/2 in Forged Alloy Coil Shoulder Eye Bolt 5,000 lbs WLL (48672)	48672	5,000 lbs	Coil	3/4 in	2 7/8 in	1 1/2 in	3 1/2 in	$63.25

3/4 - 6 in Forged Alloy Coil Shoulder Eye Bolt 5,000 lbs WLL (48672-6)	48672-6	5,000 lbs	Coil	3/4 in	2 7/8 in	1 1/2 in	6 in	$72.82

1 - 3 1/2 in Forged Alloy Coil Shoulder Eye Bolt 10,000 lbs WLL (48674)	48674	10,000 lbs	Coil	1 in	3 3/4 in	2 in	3 1/2 in	$96.58

1 - 6 in Forged Alloy Coil Shoulder Eye Bolt 10,000 lbs WLL (48674-6)	48674-6	10,000 lbs	Coil	1 in	3 3/4 in	2 in	6 in	$106.99

MPN: 48672

WLL: 5,000 lbs

Thread Type: Coil

Thread Diameter: 3/4 in

A: 2 7/8 in

B: 1 1/2 in

E: 3 1/2 in

Price:$63.25

MPN: 48672-6

WLL: 5,000 lbs

Thread Type: Coil

Thread Diameter: 3/4 in

A: 2 7/8 in

B: 1 1/2 in

E: 6 in

Price:$72.82

MPN: 48674

WLL: 10,000 lbs

Thread Type: Coil

Thread Diameter: 1 in

A: 3 3/4 in

B: 2 in

E: 3 1/2 in

Price:$96.58

MPN: 48674-6

WLL: 10,000 lbs

Thread Type: Coil

Thread Diameter: 1 in

A: 3 3/4 in

B: 2 in

E: 6 in

Price:$106.99
