Harrington CX Mini Hand Chain Hoist

With its smooth lines, integrated aluminum body, and impossibly small size, the CX is a remarkable engineering achievement in both design and performance making it the ideal tool for use in high or difficult to reach places.

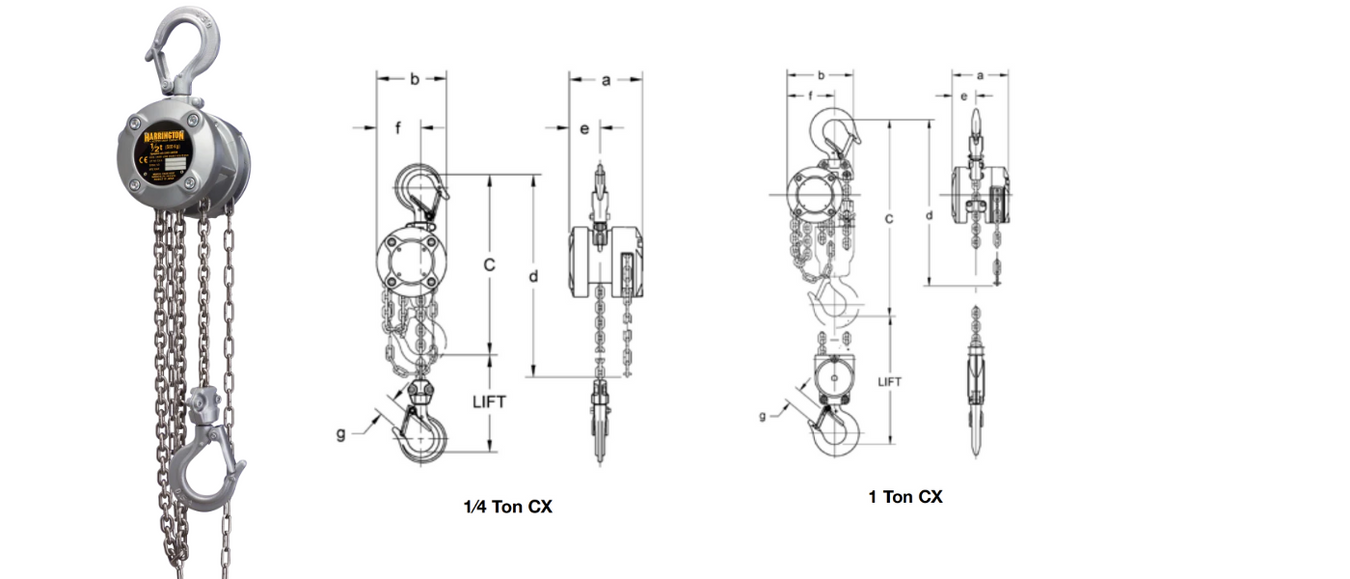

Capacity (Tons) MPN Headroom C (in.) Length (ft.) Pull to Lift Load (lbs.) Overhaul Raio A (in.) B (in.) D (in.) E (in.) F (in.) G (in.) Load Chain Diameter (mm) x Chain Fall Lines Price Quantity
1/4 CX003-10 8.5 10 33 34 3.5 3.3 6.8 1.5 2.1 0.8 3.2 x 1 $481.92
1/4 CX003-20 8.5 20 33 34 3.5 3.3 16.6 1.5 2.1 0.8 3.2 x 1 $730.93
1/2 CX005-10 10.2 10 42 43 4.0 4.0 6.8 1.7 2.6 1.0 4.3 x 1 $636.19
1/2 CX005-20 10.2 20 42 43 4.0 4.0 16.6 1.7 2.6 1.0 4.3 x 1 $893.29
1 CX010-10 14.1 10 44 86 4.1 4.8 6.8 1.7 3.4 1.1 4.3 x 2 $942.84
1 CX010-20 14.1 20 44 86 4.1 4.8 16.6 1.7 3.4 1.1 4.3 x 2 $1,296.27

Products

Capacity (Tons): 1/4
Headroom C (in.): 8.5
Length (ft.): 10
Pull to Lift Load (lbs.): 33
Overhaul Raio: 34
A (in.): 3.5
B (in.): 3.3
D (in.): 6.8
E (in.): 1.5
F (in.): 2.1
G (in.): 0.8
Load Chain Diameter (mm) x Chain Fall Lines: 3.2 x 1
Price:$481.92
Capacity (Tons): 1/4
Headroom C (in.): 8.5
Length (ft.): 20
Pull to Lift Load (lbs.): 33
Overhaul Raio: 34
A (in.): 3.5
B (in.): 3.3
D (in.): 16.6
E (in.): 1.5
F (in.): 2.1
G (in.): 0.8
Load Chain Diameter (mm) x Chain Fall Lines: 3.2 x 1
Price:$730.93
Capacity (Tons): 1/2
Headroom C (in.): 10.2
Length (ft.): 10
Pull to Lift Load (lbs.): 42
Overhaul Raio: 43
A (in.): 4.0
B (in.): 4.0
D (in.): 6.8
E (in.): 1.7
F (in.): 2.6
G (in.): 1.0
Load Chain Diameter (mm) x Chain Fall Lines: 4.3 x 1
Price:$636.19
Capacity (Tons): 1/2
Headroom C (in.): 10.2
Length (ft.): 20
Pull to Lift Load (lbs.): 42
Overhaul Raio: 43
A (in.): 4.0
B (in.): 4.0
D (in.): 16.6
E (in.): 1.7
F (in.): 2.6
G (in.): 1.0
Load Chain Diameter (mm) x Chain Fall Lines: 4.3 x 1
Price:$893.29
Capacity (Tons): 1
Headroom C (in.): 14.1
Length (ft.): 10
Pull to Lift Load (lbs.): 44
Overhaul Raio: 86
A (in.): 4.1
B (in.): 4.8
D (in.): 6.8
E (in.): 1.7
F (in.): 3.4
G (in.): 1.1
Load Chain Diameter (mm) x Chain Fall Lines: 4.3 x 2
Price:$942.84
Capacity (Tons): 1
Headroom C (in.): 14.1
Length (ft.): 20
Pull to Lift Load (lbs.): 44
Overhaul Raio: 86
A (in.): 4.1
B (in.): 4.8
D (in.): 16.6
E (in.): 1.7
F (in.): 3.4
G (in.): 1.1
Load Chain Diameter (mm) x Chain Fall Lines: 4.3 x 2
Price:$1,296.27
