Harrington LB Lever Hoist

Harrington's LB lever hoist forged an entirely new, industry-leading benchmark by being smaller, lighter, and stronger than any other lever hoist on the market. This hoist can be used horizontally, vertically, inverted or at any other load angle and its proven strength and durability stand up in an endless array of applications.

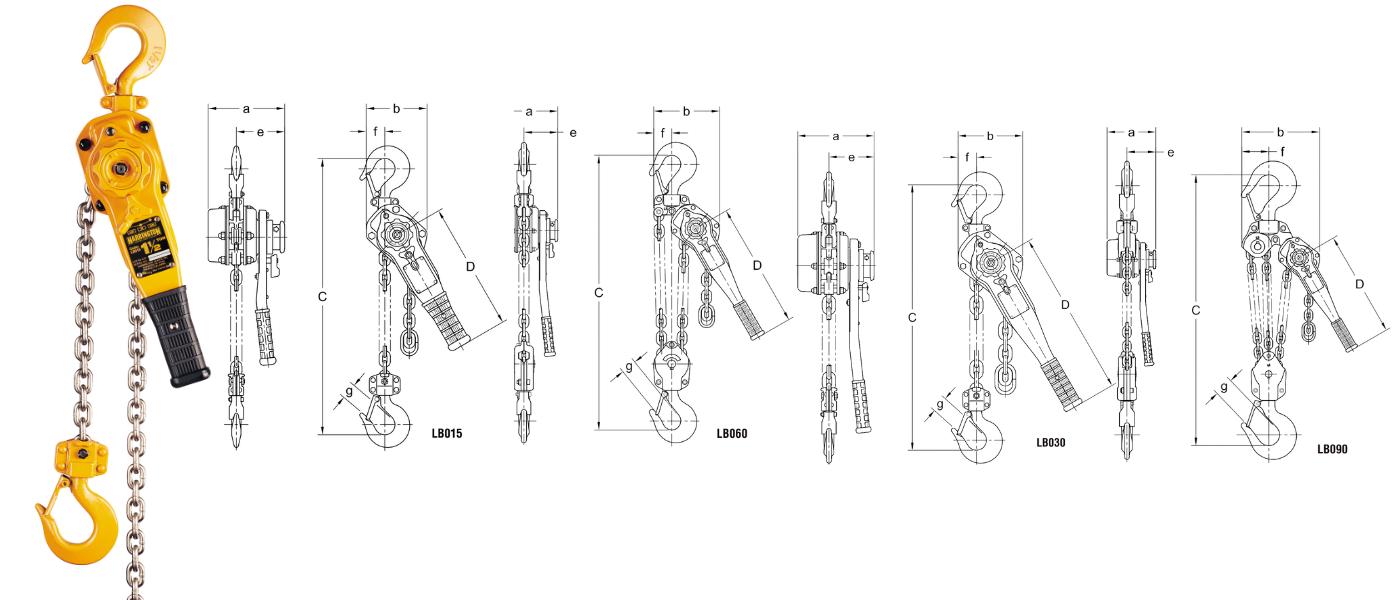

Capacity (Tons)	MPN	Headroom C (in.)	Length (ft.)	Pull to Lift Load (lbs.)	A (in.)	B (in.)	D (in.)	E (in.)	G (in.)	Load Chain Diameter (mm) x Chain Fall Lines	Price
3/4	L5LB008-10	11.0	10	54 (36)	5.7	4.7	9.6 (14.4)	3.8	0.9	5.6 x 1	$642.26

3/4	L5LB008-15	11.0	15	54 (36)	5.7	4.7	9.6 (14.4)	3.8	0.9	5.6 x 1	$712.04

3/4	L5LB008-20	11.0	20	54 (36)	5.7	4.7	9.6 (14.4)	3.8	0.9	5.6 x 1	$784.19

1	L5LB010-10	11.8	10	72 (46)	5.7	4.7	9.6 (14.4)	3.8	1.1	5.6 x 1	$717.96

1	L5LB010-15	11.8	15	72 (46)	5.7	4.7	9.6 (14.4)	3.8	1.1	5.6 x 1	$788.91

1	L5LB010-20	11.8	20	72 (46)	5.7	4.7	9.6 (14.4)	3.8	1.1	5.6 x 1	$836.24

1-1/2	L5LB015-10	13.2	10	64 (45)	6.3	5.0	10.4 (14.4)	3.9	1.3	7.1 x 1	$876.46

1-1/2	L5LB015-15	13.2	15	64 (45)	6.3	5.0	10.4 (14.4)	3.9	1.3	7.1 x 1	$961.60

1-1/2	L5LB015-20	13.2	20	64 (45)	6.3	5.0	10.4 (14.4)	3.9	1.3	7.1 x 1	$1,021.93

2	L5LBO20-10	14.8	10	59 (42)	6.8	5.9	10.4 (14.4)	4.0	1.4	8.8 x 1	$948.59

2	L5LBO20-15	14.8	15	59 (42)	6.8	5.9	10.4 (14.4)	4.0	1.4	8.8 x 1	$1,020.75

2	L5LBO20-20	14.8	20	59 (42)	6.8	5.9	10.4 (14.4)	4.0	1.4	8.8 x 1	$1,094.08

2-3/4	L5LB028-10	14.8	10	81 (57)	6.8	5.9	10.4 (14.4)	4.0	1.4	8.8 x 1	$1,008.05

2-3/4	L5LB028-15	14.8	15	81 (57)	6.8	5.9	10.4 (14.4)	4.0	1.4	8.8 x 1	$1,107.35

2-3/4	L5LB028-20	14.8	20	81 (57)	6.8	5.9	10.4 (14.4)	4.0	1.4	8.8 x 1	$1,212.45

3	L5LB030-10	15.6	10	69	7.5	6.3	16.3 (16.9)	4.4	1.5	10.0 x 1	$1,157.95

3	L5LB030-15	15.6	15	69	7.5	6.3	16.3 (16.9)	4.4	1.5	10.0 x 1	$1,245.47

3	L5LB030-20	15.6	20	69	7.5	6.3	16.3 (16.9)	4.4	1.5	10.0 x 1	$1,370.86

6	L5LB060-10	21.3	10	72	7.5	8.5	16.3 (16.9)	4.4	2.0	10.0 x 2	$2,318.19

6	L5LB060-15	21.3	15	72	7.5	8.5	16.3 (16.9)	4.4	2.0	10.0 x 2	$2,511.78

6	L5LB060-20	21.3	20	72	7.5	8.5	16.3 (16.9)	4.4	2.0	10.0 x 2	$2,611.82

Products

Capacity (Tons): 3/4

MPN: L5LB008-10

Headroom C (in.): 11.0

Length (ft.): 10

Pull to Lift Load (lbs.): 54 (36)

A (in.): 5.7

B (in.): 4.7

D (in.): 9.6 (14.4)

E (in.): 3.8

G (in.): 0.9

Load Chain Diameter (mm) x Chain Fall Lines: 5.6 x 1

Price:$642.26

Capacity (Tons): 3/4

MPN: L5LB008-15

Headroom C (in.): 11.0

Length (ft.): 15

Pull to Lift Load (lbs.): 54 (36)

A (in.): 5.7

B (in.): 4.7

D (in.): 9.6 (14.4)

E (in.): 3.8

G (in.): 0.9

Load Chain Diameter (mm) x Chain Fall Lines: 5.6 x 1

Price:$712.04

Capacity (Tons): 3/4

MPN: L5LB008-20

Headroom C (in.): 11.0

Length (ft.): 20

Pull to Lift Load (lbs.): 54 (36)

A (in.): 5.7

B (in.): 4.7

D (in.): 9.6 (14.4)

E (in.): 3.8

G (in.): 0.9

Load Chain Diameter (mm) x Chain Fall Lines: 5.6 x 1

Price:$784.19

Capacity (Tons): 1

MPN: L5LB010-10

Headroom C (in.): 11.8

Length (ft.): 10

Pull to Lift Load (lbs.): 72 (46)

A (in.): 5.7

B (in.): 4.7

D (in.): 9.6 (14.4)

E (in.): 3.8

G (in.): 1.1

Load Chain Diameter (mm) x Chain Fall Lines: 5.6 x 1

Price:$717.96

Capacity (Tons): 1

MPN: L5LB010-15

Headroom C (in.): 11.8

Length (ft.): 15

Pull to Lift Load (lbs.): 72 (46)

A (in.): 5.7

B (in.): 4.7

D (in.): 9.6 (14.4)

E (in.): 3.8

G (in.): 1.1

Load Chain Diameter (mm) x Chain Fall Lines: 5.6 x 1

Price:$788.91

Capacity (Tons): 1

MPN: L5LB010-20

Headroom C (in.): 11.8

Length (ft.): 20

Pull to Lift Load (lbs.): 72 (46)

A (in.): 5.7

B (in.): 4.7

D (in.): 9.6 (14.4)

E (in.): 3.8

G (in.): 1.1

Load Chain Diameter (mm) x Chain Fall Lines: 5.6 x 1

Price:$836.24

Capacity (Tons): 1-1/2

MPN: L5LB015-10

Headroom C (in.): 13.2

Length (ft.): 10

Pull to Lift Load (lbs.): 64 (45)

A (in.): 6.3

B (in.): 5.0

D (in.): 10.4 (14.4)

E (in.): 3.9

G (in.): 1.3

Load Chain Diameter (mm) x Chain Fall Lines: 7.1 x 1

Price:$876.46

Capacity (Tons): 1-1/2

MPN: L5LB015-15

Headroom C (in.): 13.2

Length (ft.): 15

Pull to Lift Load (lbs.): 64 (45)

A (in.): 6.3

B (in.): 5.0

D (in.): 10.4 (14.4)

E (in.): 3.9

G (in.): 1.3

Load Chain Diameter (mm) x Chain Fall Lines: 7.1 x 1

Price:$961.60

Capacity (Tons): 1-1/2

MPN: L5LB015-20

Headroom C (in.): 13.2

Length (ft.): 20

Pull to Lift Load (lbs.): 64 (45)

A (in.): 6.3

B (in.): 5.0

D (in.): 10.4 (14.4)

E (in.): 3.9

G (in.): 1.3

Load Chain Diameter (mm) x Chain Fall Lines: 7.1 x 1

Price:$1,021.93

Capacity (Tons): 2

MPN: L5LBO20-10

Headroom C (in.): 14.8

Length (ft.): 10

Pull to Lift Load (lbs.): 59 (42)

A (in.): 6.8

B (in.): 5.9

D (in.): 10.4 (14.4)

E (in.): 4.0

G (in.): 1.4

Load Chain Diameter (mm) x Chain Fall Lines: 8.8 x 1

Price:$948.59

Capacity (Tons): 2

MPN: L5LBO20-15

Headroom C (in.): 14.8

Length (ft.): 15

Pull to Lift Load (lbs.): 59 (42)

A (in.): 6.8

B (in.): 5.9

D (in.): 10.4 (14.4)

E (in.): 4.0

G (in.): 1.4

Load Chain Diameter (mm) x Chain Fall Lines: 8.8 x 1

Price:$1,020.75

Capacity (Tons): 2

MPN: L5LBO20-20

Headroom C (in.): 14.8

Length (ft.): 20

Pull to Lift Load (lbs.): 59 (42)

A (in.): 6.8

B (in.): 5.9

D (in.): 10.4 (14.4)

E (in.): 4.0

G (in.): 1.4

Load Chain Diameter (mm) x Chain Fall Lines: 8.8 x 1

Price:$1,094.08

Capacity (Tons): 2-3/4

MPN: L5LB028-10

Headroom C (in.): 14.8

Length (ft.): 10

Pull to Lift Load (lbs.): 81 (57)

A (in.): 6.8

B (in.): 5.9

D (in.): 10.4 (14.4)

E (in.): 4.0

G (in.): 1.4

Load Chain Diameter (mm) x Chain Fall Lines: 8.8 x 1

Price:$1,008.05

Capacity (Tons): 2-3/4

MPN: L5LB028-15

Headroom C (in.): 14.8

Length (ft.): 15

Pull to Lift Load (lbs.): 81 (57)

A (in.): 6.8

B (in.): 5.9

D (in.): 10.4 (14.4)

E (in.): 4.0

G (in.): 1.4

Load Chain Diameter (mm) x Chain Fall Lines: 8.8 x 1

Price:$1,107.35

Capacity (Tons): 2-3/4

MPN: L5LB028-20

Headroom C (in.): 14.8

Length (ft.): 20

Pull to Lift Load (lbs.): 81 (57)

A (in.): 6.8

B (in.): 5.9

D (in.): 10.4 (14.4)

E (in.): 4.0

G (in.): 1.4

Load Chain Diameter (mm) x Chain Fall Lines: 8.8 x 1

Price:$1,212.45

Capacity (Tons): 3

MPN: L5LB030-10

Headroom C (in.): 15.6

Length (ft.): 10

Pull to Lift Load (lbs.): 69

A (in.): 7.5

B (in.): 6.3

D (in.): 16.3 (16.9)

E (in.): 4.4

G (in.): 1.5

Load Chain Diameter (mm) x Chain Fall Lines: 10.0 x 1

Price:$1,157.95

Capacity (Tons): 3

MPN: L5LB030-15

Headroom C (in.): 15.6

Length (ft.): 15

Pull to Lift Load (lbs.): 69

A (in.): 7.5

B (in.): 6.3

D (in.): 16.3 (16.9)

E (in.): 4.4

G (in.): 1.5

Load Chain Diameter (mm) x Chain Fall Lines: 10.0 x 1

Price:$1,245.47

Capacity (Tons): 3

MPN: L5LB030-20

Headroom C (in.): 15.6

Length (ft.): 20

Pull to Lift Load (lbs.): 69

A (in.): 7.5

B (in.): 6.3

D (in.): 16.3 (16.9)

E (in.): 4.4

G (in.): 1.5

Load Chain Diameter (mm) x Chain Fall Lines: 10.0 x 1

Price:$1,370.86

Capacity (Tons): 6

MPN: L5LB060-10

Headroom C (in.): 21.3

Length (ft.): 10

Pull to Lift Load (lbs.): 72

A (in.): 7.5

B (in.): 8.5

D (in.): 16.3 (16.9)

E (in.): 4.4

G (in.): 2.0

Load Chain Diameter (mm) x Chain Fall Lines: 10.0 x 2

Price:$2,318.19

Capacity (Tons): 6

MPN: L5LB060-15

Headroom C (in.): 21.3

Length (ft.): 15

Pull to Lift Load (lbs.): 72

A (in.): 7.5

B (in.): 8.5

D (in.): 16.3 (16.9)

E (in.): 4.4

G (in.): 2.0

Load Chain Diameter (mm) x Chain Fall Lines: 10.0 x 2

Price:$2,511.78

Capacity (Tons): 6

MPN: L5LB060-20

Headroom C (in.): 21.3

Length (ft.): 20

Pull to Lift Load (lbs.): 72

A (in.): 7.5

B (in.): 8.5

D (in.): 16.3 (16.9)

E (in.): 4.4

G (in.): 2.0

Load Chain Diameter (mm) x Chain Fall Lines: 10.0 x 2

Price:$2,611.82
