Harrington UBC

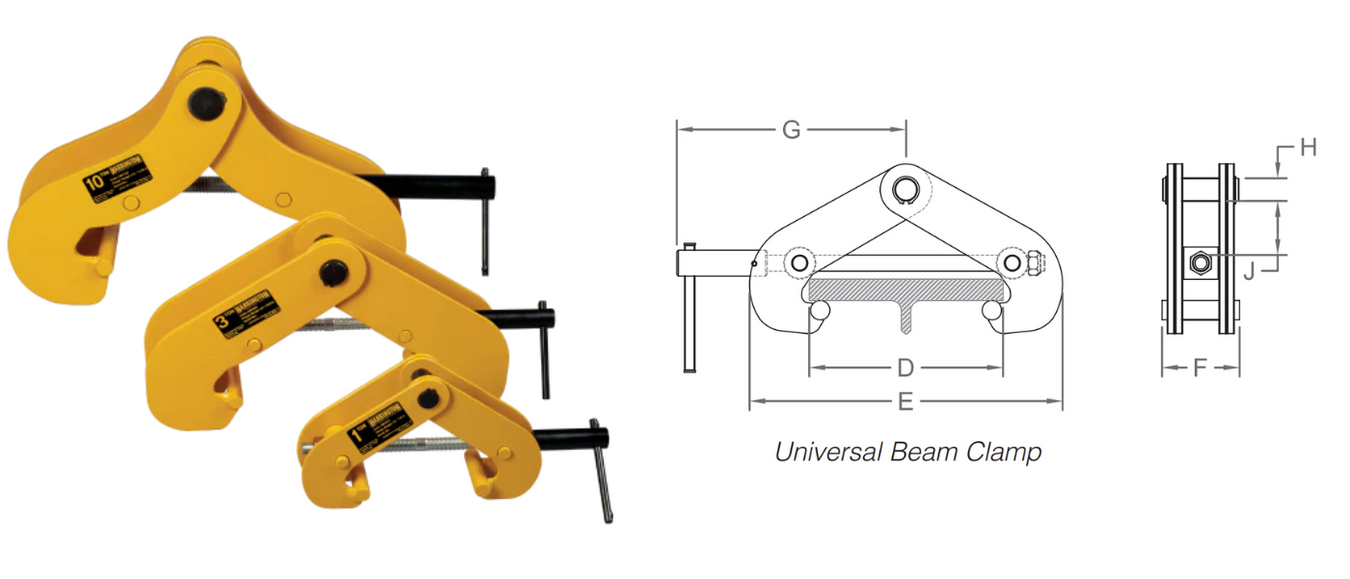

Harrington's UBC beam clamp can be used as a temporary anchor point or as a below-the-hook device. You’ll have peace of mind knowing the secure clamp uses proven lock-nut protection to rule out loosening due to vibrations. Safe and functional, our UBC is also designed with a wide adjustable-jaw opening and both a left- and right-hand clamp screw for quick operation.

Capacity (Tons) MPN Flange Range D (in.) Max. Beam Flange Thickness (in.) Max. E (in.) A (in.) B (in.) C (in.) F (in.) G (in.) H (in.) J (in.) T (in.) Price Quantity
1 UBC010 3.00 to 7.50 0.83 12.25 0.75 2.00 2.00 3.00 9.25 0.88 2.10 0.63 $217.26
2 UBC020 3.00 to 7.50 0.83 12.25 0.75 2.00 2.00 3.00 9.25 0.88 2.10 0.63 $240.37
3 UBC030 4.00 to 12.00 1.00 19.75 1.00 2.50 2.50 4.25 11.0 1.25 2.38 1.00 $383.68
5 UBC050 4.00 to 12.00 1.00 19.75 1.00 2.50 2.50 4.25 11.0 1.25 2.38 1.00 $525.43
10 UBC100 6.00 to 13.25 1.75 22.50 1.38 3.75 6.25 6.00 14.63 1.75 4.65 1.25 $625.66

Products

Capacity (Tons): 1
MPN: UBC010
Flange Range D (in.): 3.00 to 7.50
Max. Beam Flange Thickness (in.): 0.83
Max. E (in.): 12.25
A (in.): 0.75
B (in.): 2.00
C (in.): 2.00
F (in.): 3.00
G (in.): 9.25
H (in.): 0.88
J (in.): 2.10
T (in.): 0.63
Price:$217.26
Capacity (Tons): 2
MPN: UBC020
Flange Range D (in.): 3.00 to 7.50
Max. Beam Flange Thickness (in.): 0.83
Max. E (in.): 12.25
A (in.): 0.75
B (in.): 2.00
C (in.): 2.00
F (in.): 3.00
G (in.): 9.25
H (in.): 0.88
J (in.): 2.10
T (in.): 0.63
Price:$240.37
Capacity (Tons): 3
MPN: UBC030
Flange Range D (in.): 4.00 to 12.00
Max. Beam Flange Thickness (in.): 1.00
Max. E (in.): 19.75
A (in.): 1.00
B (in.): 2.50
C (in.): 2.50
F (in.): 4.25
G (in.): 11.0
H (in.): 1.25
J (in.): 2.38
T (in.): 1.00
Price:$383.68
Capacity (Tons): 5
MPN: UBC050
Flange Range D (in.): 4.00 to 12.00
Max. Beam Flange Thickness (in.): 1.00
Max. E (in.): 19.75
A (in.): 1.00
B (in.): 2.50
C (in.): 2.50
F (in.): 4.25
G (in.): 11.0
H (in.): 1.25
J (in.): 2.38
T (in.): 1.00
Price:$525.43
Capacity (Tons): 10
MPN: UBC100
Flange Range D (in.): 6.00 to 13.25
Max. Beam Flange Thickness (in.): 1.75
Max. E (in.): 22.50
A (in.): 1.38
B (in.): 3.75
C (in.): 6.25
F (in.): 6.00
G (in.): 14.63
H (in.): 1.75
J (in.): 4.65
T (in.): 1.25
Price:$625.66
