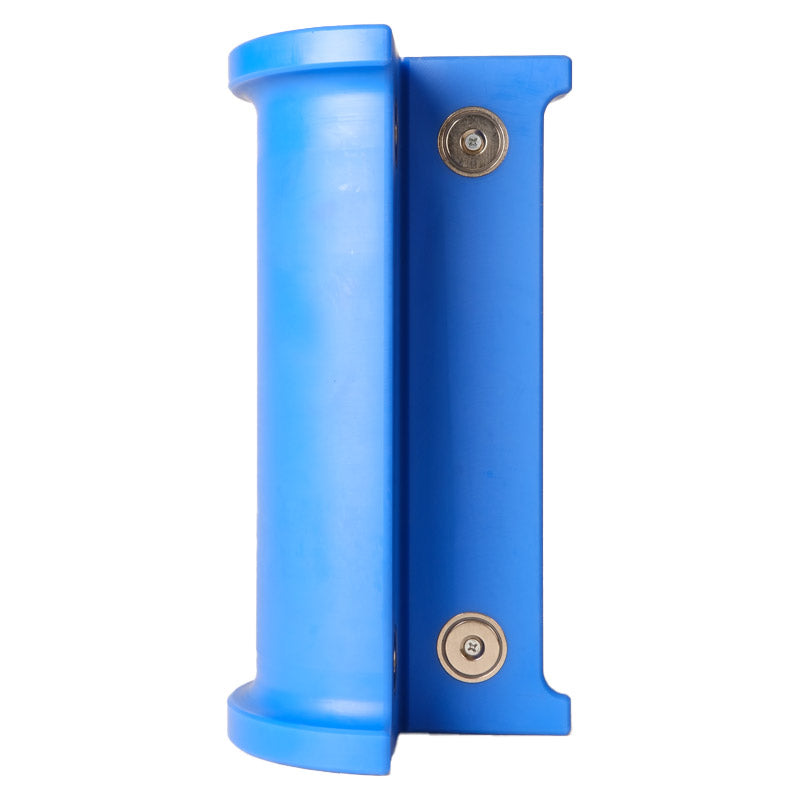

Heavy Duty Sling Protectors

Sling & Load Type:
Designed for use with all sling types. Enhanced durability allows for use with chain slings. Heavy Duty LiftGuard Sling Protectors are considerably thicker than Medium Duty Sling Protectors.  Because of the additional material Heavy Duty Sling Protectors are more durable and are better able to withstand high pressure loading from more abrasive chain slings.

Specific Use:
To protect slings from damage caused by direct contact with edges, corners or protrusions of loads being lifted.

Please note important definitions at bottom of chart

MPN Overall Length (inches) Max Sling Width (inches) 1" Sling Capacity (lbs) Max Capacity Based on Max Sling Width (lbs) Weight (lbs) Price Quantity
LG-6-3-270 HD 6 4 12,500 50,000 5 $361.10
LG-9-3-270 HD 9 7 12,500 87,500 7 $437.00
LG-12-3-270 HD 12 10 12,500 125,000 9 $531.05
LG-18-3-270 HD 18 16 12,500 200,000 13 $775.25

Products

Overall Length: Equates to the total end to end length of a sling protector.
Safe Operating Zone: The useable area between the raised shoulders of the sling protector (see image below).
Width at Load: Sling Width Under Load.

o   Sling Total Contact Width: Round synthetic slings compress and flatten as the load is picked. Select your sling protector based on the Sling Width Under Load.

o  Caution– If your sling width under load is wider than the safe operating zone, the sling will point load. (see image below)

1” Sling Capacity: The maximum capacity per lineal inch of sling contact, ASSUMING the face of the sling protector (the portion in contact with the load) is in 100% contact on both the vertical and horizontal load surfaces.

Maximum Capacity: The total capacity of the individual sling protector,ASSUMING, the sling contact width does not exceed the safe operating area,ANDthe face of the sling protector is in 100% contact on both the vertical and horizontal surfaces.
