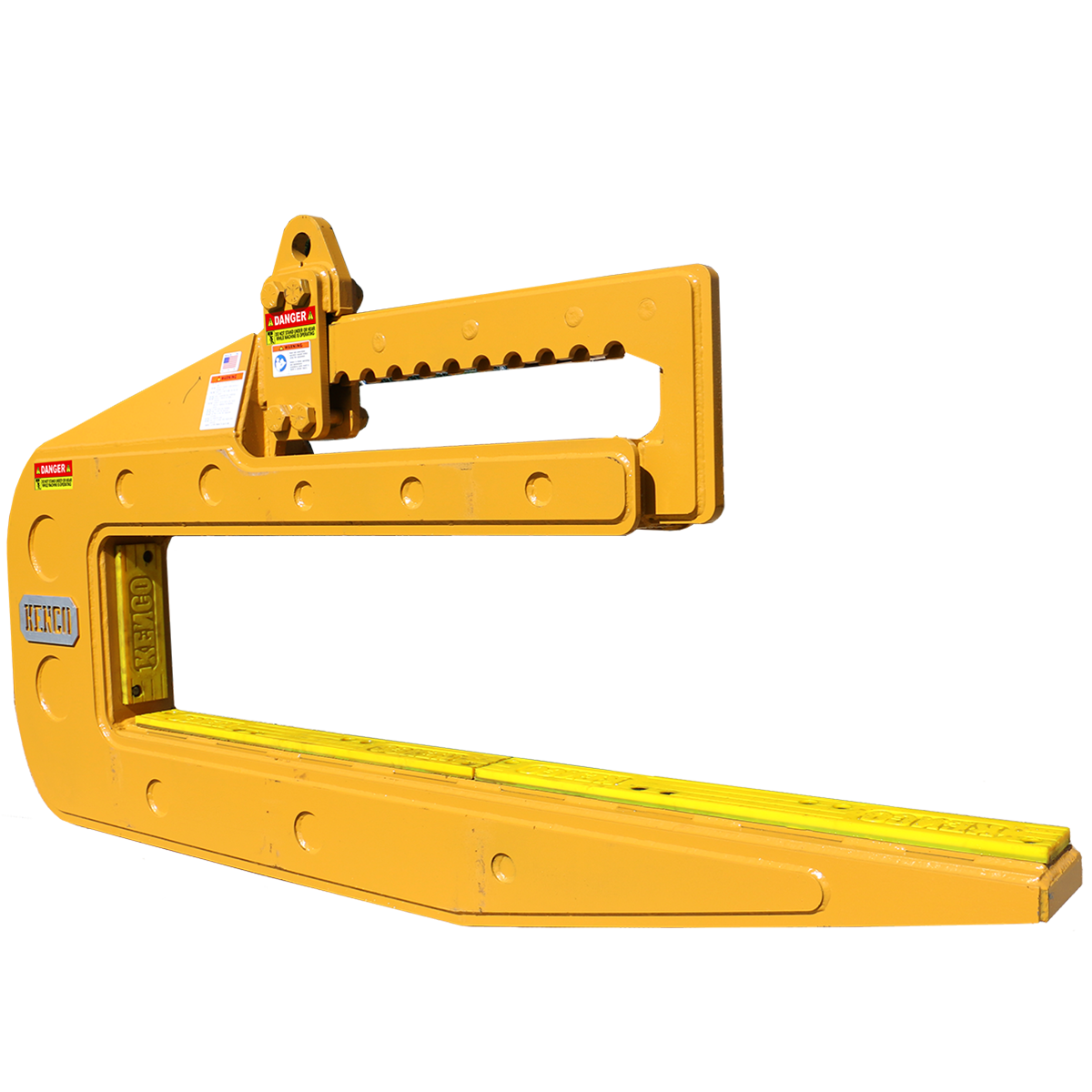

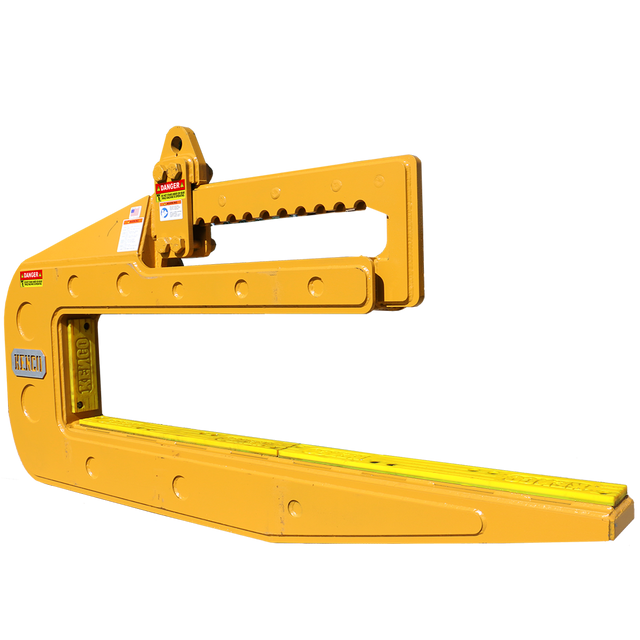

Kenco Mechanical Pipe Hook (PH18000M)

• Reduce your pipe handling time to
  increase production and profit.
• One operator can lift, position, and set
  pipe sections together quickly and safely.
• Self Leveling and Mechanical slide
  models available in several capacities.
• Can be used on any standard 8 foot
  segment of pipe regardless of shape.
• Reinforced box-style construction
  provides superior strength.
• Full pad coverage maximizes contact
  while preventing damage to the pipe.

The PH18000 Mechanical Pipe Hook has a 18,000 pound capacity. Simply attach your rigging, such as the Rigmax, to the lift eye and machine. The operator can use the manual slide located across the top of the hook to adjust the angle of the pipe for installation or removal.

The Pipe Hook is intended for use with 8' sections of concrete pipe. If setting longer sticks, consider a Pipe Lift.

Min Inside Diameter: 15″
RCP Pipe Length: 8'
Shipping Dimensions: 92" x 48" x 9"
Shipping Weight: 1150 lb
