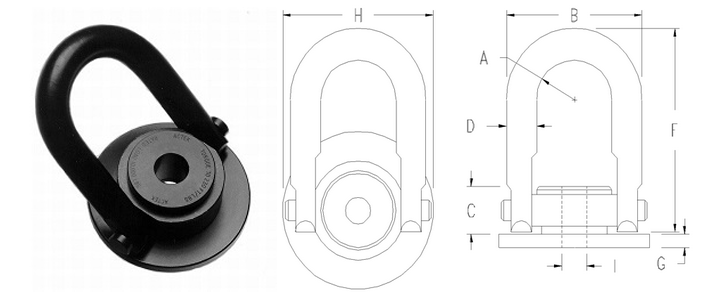

Round Base Swivel Hoist Rings

Alloy Steel
Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
Magnetic Particle Inspected
Certified Heat Treatment
100% From 0° - 90°
High tensile Alloy screws equivalent to Grade 8 must be used
UNC and Coil screws available
Should be at least 1.5 times the screw diameter
MPN Rated Load A B C D F G H I Torque Weight (lbs) Price Quantity
44646 2,500 lbs 0.92 in 3 21/64 in 1 7/32 in 3/4 in 6 3/4 in 1/4 in 3 1/2 in 1/2 in 28 ft-lbs 3.5 lbs $194.61
44642 4,000 lbs 0.92 in 3 21/64 in 1 7/32 in 3/4 in 6 3/4 in 1/4 in 3 1/2 in 5/8 in 60 ft-lbs 3.5 lbs $194.61
44654 5,000 lbs 0.92 in 3 21/64 in 1 7/32 in 3/4 in 6 3/4 in 1/4 in 3 1/2 in 3/4 in 100 ft-lbs 3.5 lbs $145.96
44660 7,000 lbs 1.40 in 4 13/16 in 1 37/64 in 1 in 8 in 13/32 in 5 in 3/4 in 100 ft-lbs 9 lbs $341.26
44656 8,000 lbs 1.40 in 4 13/16 in 1 37/64 in 1 in 8 in 13/32 in 5 in 7/8 in 160 ft-lbs 9 lbs $341.26
44666 10,000 lbs 1.40 in 4 13/16 in 1 37/64 in 1 in 8 in 13/32 in 5 in 1 in 230 ft-lbs 9 lbs $341.26
44802 15,000 lbs 1.75 in 6 in 1 55/64 in 1 1/4 in 8 1/2 in 1/2 in 7 in 1 1/4 in 470 ft-lbs 17 lbs $505.71
44803 15,000 lbs 1.75 in 6 in 1 55/64 in 1 1/4 in 8 1/2 in 1/2 in 7 in 1 1/2 in 800 ft-lbs 17 lbs $505.71
44704 20,000 lbs 2.00 in 7 in 2 7/64 in 1 1/2 in 10 11/32 in 1/2 in 7 in 1 1/2 in 800 ft-lbs 24 lbs $688.72
44404 24,000 lbs 2.25 in 8 in 2 17/32 in 1 3/4 in 12 5/32 in 11/16 in 8 1/2 in 1 1/2 in 800 ft-lbs 40 lbs $766.62
44406 24,000 lbs 2.25 in 8 in 2 17/32 in 1 3/4 in 12 5/32 in 11/16 in 8 1/2 in 1 3/4 in 800 ft-lbs 40 lbs $766.11
44408 30,000 lbs 2.25 in 8 in 2 17/32 in 1 3/4 in 12 5/32 in 11/16 in 8 1/2 in 2 in 800 ft-lbs 40 lbs $766.11
44924 1,050 kg 0.92 in 3 21/64 in 1 7/32 in 3/4 in 6 3/4 in 1/4 in 3 1/2 in M12 37 Nm 3.5 lbs $194.61
44930 1,900 kg 0.92 in 3 21/64 in 1 7/32 in 3/4 in 6 3/4 in 1/4 in 3 1/2 in M16 80 Nm 3.5 lbs $194.61
44936 2,150 kg 0.92 in 3 21/64 in 1 7/32 in 3/4 in 6 3/4 in 1/4 in 3 1/2 in M20 135 Nm 3.5 lbs $194.61
44942 3,000 kg 1.40 in 4 13/16 in 1 37/64 in 1 in 8 in 13/32 in 5 in M20 135 Nm 9 lbs $341.26
44944 4,200 kg 1.40 in 4 13/16 in 1 37/64 in 1 in 8 in 13/32 in 5 in M24 311 Nm 9 lbs $341.26
44956 7,000 kg 1.75 in 6 in 1 55/64 in 1 1/4 in 8 1/2 in 1/2 in 7 in M30 637 Nm 17 lbs $505.73
44960 7,000 kg 1.75 in 6 in 1 55/64 in 1 1/4 in 8 1/2 in 1/2 in 7 in M33 937 Nm 17 lbs $505.73
44961 7,000 kg 1.75 in 6 in 1 55/64 in 1 1/4 in 8 1/2 in 1/2 in 7 in M36 1085 Nm 17 lbs $505.73
44962 10,000 kg 2.00 in 7 in 2 7/64 in 1 1/2 in 10 11/32 in 1/2 in 7 in M36 1085 Nm 24 lbs $688.72
44966 11,000 kg 2.25 in 8 in 2 17/32 in 1 3/4 in 12 5/32 in 11/16 in 8 1/2 in M36 1085 Nm 40 lbs $766.11
44968 12,500 kg 2.25 in 8 in 2 17/32 in 1 3/4 in 12 5/32 in 11/16 in 8 1/2 in M42 1085 Nm 40 lbs $766.11
44980 13,500 kg 2.25 in 8 in 2 17/32 in 1 3/4 in 12 5/32 in 11/16 in 8 1/2 in M48 1085 Nm 40 lbs $766.11
