Safety Swivel Hoist Rings

Alloy Steel
Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
200% Proof-Load Tested with Serial Number for Traceability
Magnetic Particle Inspected
Certified Heat Treatment
100% From 0° - 90°
Meets or exceeds requirements

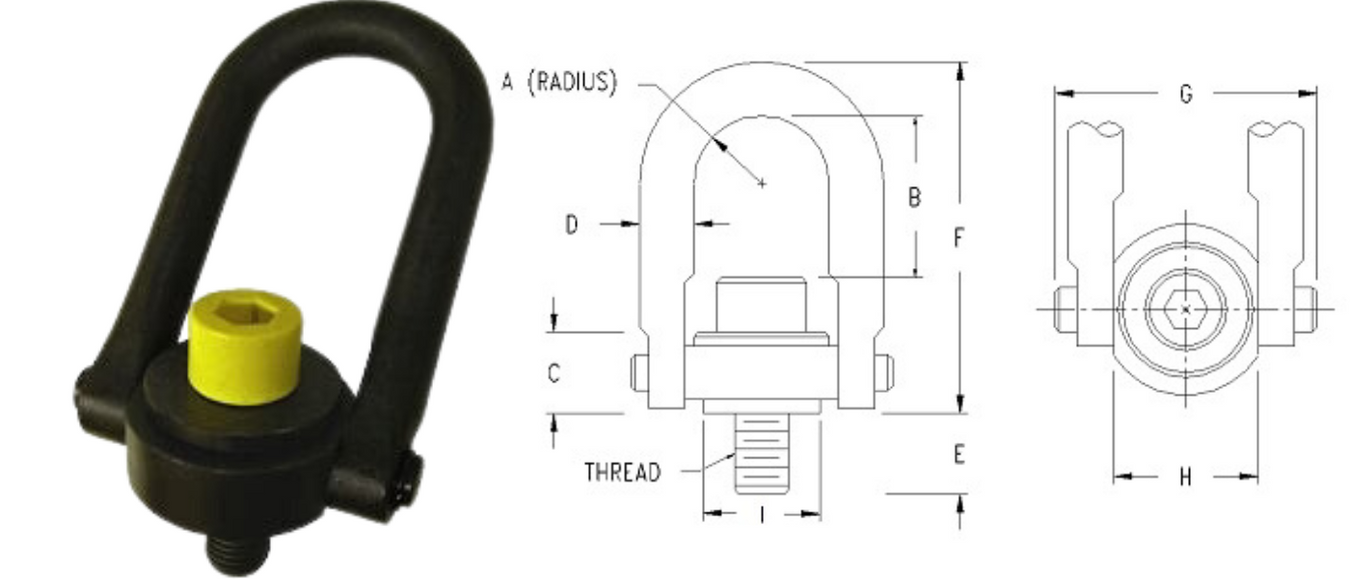

MPN Rated Load Thread Size A B C D E F G H I Torque (ft.-lbs.) Weight (lbs) Price Quantity
46100 600 lbs 1/4" - 20 .47 in 1.39 in 0.71 in 3/8 in 0.54 in 2.72 in 1.91 in 1 in 0.85 in 6 ft-lbs .3 lbs $119.64
46102 800 lbs 5/16" - 18 .47 in 1.32 in 0.71 in 3/8 in 0.29 in 2.72 in 1.91 in 1 in 0.85 in 7 ft-lbs .3 lbs $103.08
46104 800 lbs 5/16" - 18 .47 in 1.32 in 0.71 in 3/8 in 0.54 in 2.72 in 1.91 in 1 in 0.85 in 7 ft-lbs .3 lbs $103.08
46106 1,000 lbs 3/8" - 16 .47 in 1.26 in 0.71 in 3/8 in 0.54 in 2.72 in 1.91 in 1 in 0.85 in 12 ft-lbs .3 lbs $103.08
46351 1,250 lbs 7/16" - 14 .47 in 1.20 in 0.73 in 3/8 in 0.79 in 2.74 in 1.91 in 1 in 0.99 in 22 ft-lbs .4 lbs $114.59
46352 1,500 lbs 1/2" - 13 .47 in 1.14 in 0.73 in 3/8 in 0.79 in 2.74 in 1.91 in 1 in 0.99 in 28 ft-lbs .4 lbs $114.59
46606 2,000 lbs 7/16" - 14 .71 in 1.95 in 0.93 in 1/2 in 1.07 in 3.81 in 2.66 in 1.49 in 1.20 in 22 ft-lbs 1 lbs $142.01
46602 2,500 lbs 1/2" - 13 .71 in 1.88 in 0.93 in 1/2 in 1.07 in 3.81 in 2.66 in 1.49 in 1.20 in 28 ft-lbs 1 lbs $125.45
46000 2,000 lbs 7/16" - 14 .92 in 2.52 in 1.23 in 3/4 in 0.78 in 4.93 in 3.66 in 1.98 in 1.45 in 22 ft-lbs 2.6 lbs $142.01
46638 2,000 lbs 7/16" - 14 .92 in 4.42 in 1.23 in 3/4 in 0.78 in 6.83 in 3.66 in 1.98 in 1.45 in 22 ft-lbs 2.6 lbs $150.29
46008 2,500 lbs 1/2" - 13 .92 in 2.46 in 1.23 in 3/4 in 0.78 in 4.93 in 3.66 in 1.98 in 1.45 in 28 ft-lbs 2.6 lbs $125.45
46010 2,500 lbs 1/2" - 13 .92 in 2.46 in 1.23 in 3/4 in 1.03 in 4.93 in 3.66 in 1.98 in 1.45 in 28 ft-lbs 2.6 lbs $125.45
46012 2,500 lbs 1/2" - 13 .92 in 2.46 in 1.23 in 3/4 in 1.28 in 4.93 in 3.66 in 1.98 in 1.45 in 28 ft-lbs 2.6 lbs $125.45
46644 2,500 lbs 1/2" - 13 .92 in 4.36 in 1.23 in 3/4 in 0.78 in 6.83 in 3.66 in 1.98 in 1.45 in 28 ft-lbs 2.6 lbs $134.13
46646 2,500 lbs 1/2" - 13 .92 in 4.36 in 1.23 in 3/4 in 1.03 in 6.83 in 3.66 in 1.98 in 1.45 in 28 ft-lbs 2.6 lbs $134.13
46648 2,500 lbs 1/2" - 13 .92 in 4.36 in 1.23 in 3/4 in 1.28 in 6.83 in 3.66 in 1.98 in 1.45 in 28 ft-lbs 2.6 lbs $134.13
46007 2,500 lbs 9/16" - 12 .92 in 2.39 in 1.23 in 3/4 in 0.78 in 4.93 in 3.66 in 1.98 in 1.45 in 30 ft-lbs 2.6 lbs $142.85
46651 2,500 lbs 9/16" - 12 .92 in 4.29 in 1.23 in 3/4 in 0.78 in 6.83 in 3.66 in 1.98 in 1.45 in 30 ft-lbs 2.6 lbs $163.80
46002 4,000 lbs 5/8" - 11 .92 in 2.33 in 1.23 in 3/4 in 0.78 in 4.93 in 3.66 in 1.98 in 1.45 in 60 ft-lbs 2.6 lbs $125.45
46004 4,000 lbs 5/8" - 11 .92 in 2.33 in 1.23 in 3/4 in 1.03 in 4.93 in 3.66 in 1.98 in 1.45 in 60 ft-lbs 2.6 lbs $125.45
46006 4,000 lbs 5/8" - 11 .92 in 2.33 in 1.23 in 3/4 in 1.28 in 4.93 in 3.66 in 1.98 in 1.45 in 60 ft-lbs 2.6 lbs $125.45
46005 4,000 lbs 5/8" - 11 .92 in 2.33 in 1.23 in 3/4 in 1.53 in 4.93 in 3.66 in 1.98 in 1.45 in 60 ft-lbs 2.6 lbs $125.45
46641 4,000 lbs 5/8" - 11 .92 in 4.23 in 1.23 in 3/4 in 0.78 in 6.83 in 3.66 in 1.98 in 1.45 in 60 ft-lbs 2.6 lbs $134.13
46640 4,000 lbs 5/8" - 11 .92 in 4.23 in 1.23 in 3/4 in 1.03 in 6.83 in 3.66 in 1.98 in 1.45 in 60 ft-lbs 2.6 lbs $134.13
46642 4,000 lbs 5/8" - 11 .92 in 4.23 in 1.23 in 3/4 in 1.28 in 6.83 in 3.66 in 1.98 in 1.45 in 60 ft-lbs 2.6 lbs $134.13
46643 4,000 lbs 5/8" - 11 .92 in 4.23 in 1.23 in 3/4 in 1.53 in 6.83 in 3.66 in 1.98 in 1.45 in 60 ft-lbs 2.6 lbs $134.13
46014 5,000 lbs 3/4" - 10 .92 in 2.21 in 1.23 in 3/4 in 1.03 in 4.93 in 3.66 in 1.98 in 1.45 in 100 ft-lbs 3 lbs $125.45
46018 5,000 lbs 3/4" - 10 .92 in 2.21 in 1.23 in 3/4 in 1.53 in 4.93 in 3.66 in 1.98 in 1.45 in 100 ft-lbs 3 lbs $128.76
46650 5,000 lbs 3/4" - 10 .92 in 4.11 in 1.23 in 3/4 in 1.03 in 6.83 in 3.66 in 1.98 in 1.45 in 100 ft-lbs 3 lbs $134.13
46654 5,000 lbs 3/4" - 10 .92 in 4.11 in 1.23 in 3/4 in 1.53 in 6.83 in 3.66 in 1.98 in 1.45 in 100 ft-lbs 3 lbs $134.13
46353 6,000 lbs 7/8" - 9 .92 in 2.08 in 1.25 in 3/4 in 1.53 in 4.95 in 3.66 in 1.98 in 1.99 in 160 ft-lbs 3 lbs $199.42
46354 6,500 lbs 1" - 8 .92 in 1.96 in 1.25 in 3/4 in 1.53 in 4.95 in 3.66 in 1.98 in 1.99 in 230 ft-lbs 3 lbs $199.42
41604 6,000 lbs 7/8" - 9 .92 in 3.98 in 1.25 in 3/4 in 1.53 in 6.83 in 3.66 in 1.98 in 1.99 in 160 ft-lbs 3 lbs $235.12
41606 6,500 lbs 1" - 8 .92 in 3.86 in 1.25 in 3/4 in 1.53 in 6.85 in 3.66 in 1.98 in 1.99 in 230 ft-lbs 3 lbs $235.12
46204 7,000 lbs 3/4" - 10 1.41 in 3.14 in 1.71 in 1 in 1.04 in 6.60 in 5.16 in 2.99 in 2.20 in 100 ft-lbs 7 lbs $274.08
46206 7,000 lbs 3/4" - 10 1.41 in 3.14 in 1.71 in 1 in 1.54 in 6.60 in 5.16 in 2.99 in 2.20 in 100 ft-lbs 7 lbs $274.08
46658 7,000 lbs 3/4" - 10 1.41 in 4.73 in 1.71 in 1 in 1.04 in 8.19 in 5.16 in 2.99 in 2.20 in 100 ft-lbs 7 lbs $307.19
46660 7,000 lbs 3/4" - 10 1.41 in 4.73 in 1.71 in 1 in 1.54 in 8.19 in 5.16 in 2.99 in 2.20 in 100 ft-lbs 7 lbs $307.19
46202 8,000 lbs 7/8" - 9 1.41 in 3.02 in 1.71 in 1 in 1.04 in 6.60 in 5.16 in 2.99 in 2.20 in 160 ft-lbs 7 lbs $274.08
46203 8,000 lbs 7/8" - 9 1.41 in 3.02 in 1.71 in 1 in 1.29 in 6.60 in 5.16 in 2.99 in 2.20 in 160 ft-lbs 7 lbs $274.08
46205 8,000 lbs 7/8" - 9 1.41 in 3.02 in 1.71 in 1 in 1.54 in 6.60 in 5.16 in 2.99 in 2.20 in 160 ft-lbs 7 lbs $274.08
46656 8,000 lbs 7/8" - 9 1.41 in 4.61 in 1.71 in 1 in 1.04 in 8.19 in 5.16 in 2.99 in 2.20 in 160 ft-lbs 7 lbs $307.19
46657 8,000 lbs 7/8" - 9 1.41 in 4.61 in 1.71 in 1 in 1.29 in 8.19 in 5.16 in 2.99 in 2.20 in 160 ft-lbs 7 lbs $307.19
46655 8,000 lbs 7/8" - 9 1.41 in 4.61 in 1.71 in 1 in 1.54 in 8.19 in 5.16 in 2.99 in 2.20 in 160 ft-lbs 7 lbs $307.19
46210 10,000 lbs 1" - 8 1.41 in 2.89 in 1.71 in 1 in 1.29 in 6.60 in 5.16 in 2.99 in 2.20 in 230 ft-lbs 7.5 lbs $274.08
46212 10,000 lbs 1" - 8 1.41 in 2.89 in 1.71 in 1 in 1.54 in 6.60 in 5.16 in 2.99 in 2.20 in 230 ft-lbs 7.5 lbs $274.08
46214 10,000 lbs 1" - 8 1.41 in 2.89 in 1.71 in 1 in 2.29 in 6.60 in 5.16 in 2.99 in 2.20 in 230 ft-lbs 7.5 lbs $274.08
46662 10,000 lbs 1" - 8 1.41 in 4.48 in 1.71 in 1 in 1.29 in 8.19 in 5.16 in 2.99 in 2.20 in 230 ft-lbs 7.5 lbs $307.19
46664 10,000 lbs 1" - 8 1.41 in 4.48 in 1.71 in 1 in 1.54 in 8.19 in 5.16 in 2.99 in 2.20 in 230 ft-lbs 7.5 lbs $307.19
46666 10,000 lbs 1" - 8 1.41 in 4.48 in 1.71 in 1 in 2.29 in 8.19 in 5.16 in 2.99 in 2.20 in 230 ft-lbs 7.5 lbs $307.19
