Skookum Ropemaster Full Sided Blocks

  • Work-hardening manganese steel sheave maximize wire rope & sheave life.
  • Equipped with tapered roller bearings for long life in higher line speed applications.
  • Recessed sheave design prevents wire rope from binding between sheave and block side.
  • Full sided block maximizes sheave protection and strength.
  • Versatile draw pin allow for rapid reeving & exchange of attaching style.
  • Rugged cast alloy steel sides for demanding environments.
  • ASME B30.26-1 compliant

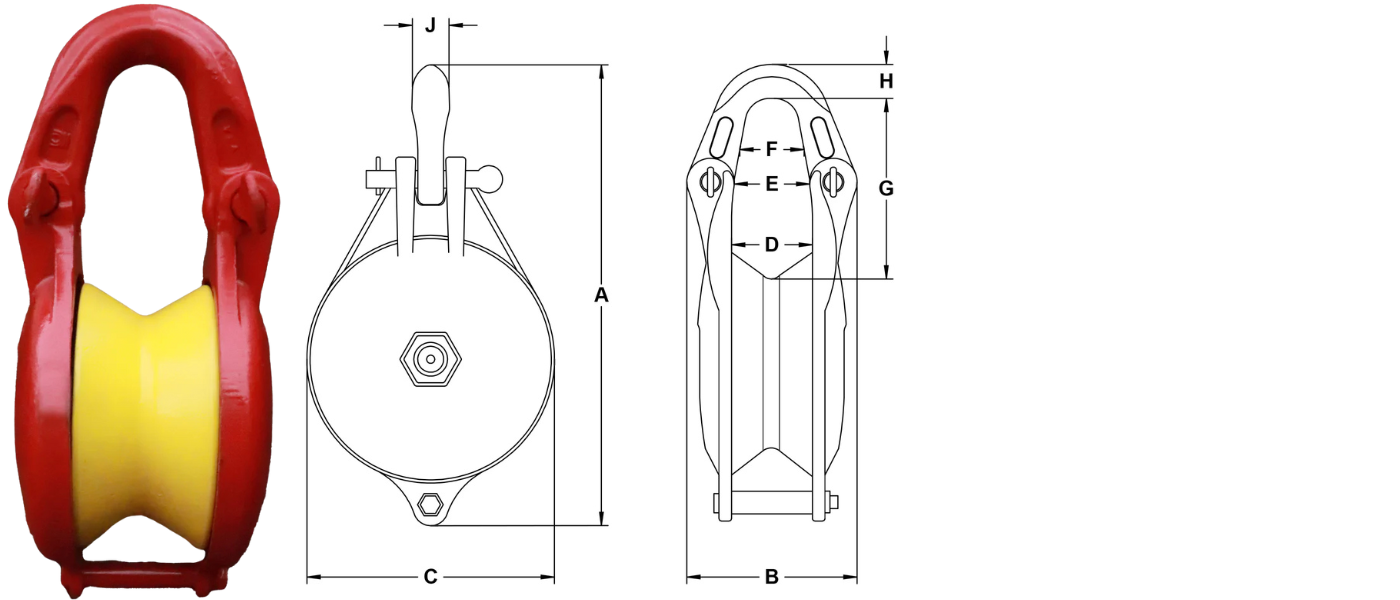

MPN End Fittings Sheave Diameter Wire Rope Min. Wire Rope Max. Working Load Limit (Ton) A (in.) B (in.) C (in.) D (in.) E (in.) F (in.) G (in.) H (in.) J (in.) Price Quantity
200200 REGULAR YOKE 6 3/8" 1/2" 3.25 12.75 5.75 6.5 2.5 2.75 2.5 4.75 1.25 1.38 $988.37
200203 SWIVEL HOOK 6 3/8" 1/2" 3.25 12.75 5.75 6.5 2.5 2.75 2.5 4.75 1.25 1.38 $1,139.65
200204 SWIVEL SHACKLE 6 3/8" 1/2" 3.25 12.75 5.75 6.5 2.5 2.75 2.5 4.75 1.25 1.38 $1,085.21
203600 REGULAR YOKE 6 3/8" 1/2" 3.75 13.75 5.75 6.75 2.75 2.75 2.5 5 1.25 1.38 $1,025.70
203603 SWIVEL HOOK 6 3/8" 1/2" 3.75 13.75 5.75 6.75 2.75 2.75 2.5 5 1.25 1.38 $1,288.94
203604 SWIVEL SHACKLE 6 3/8" 1/2" 3.75 13.75 5.75 6.75 2.75 2.75 2.5 5 1.25 1.38 $1,286.15
204800 REGULAR YOKE 8 3/8" 1/2" 3.75 16.5 5.5 8.5 2.75 2.75 2.5 5.25 1.25 1.38 $1,197.02
204803 SWIVEL HOOK 8 3/8" 1/2" 3.75 16.5 5.5 8.5 2.75 2.75 2.5 5.25 1.25 1.38 $1,397.49
204804 SWIVEL SHACKLE 8 3/8" 1/2" 3.75 16.5 5.5 8.5 2.75 2.75 2.5 5.25 1.25 1.38 $1,380.62

Products

MPN: 200200
End Fittings: REGULAR YOKE
Sheave Diameter: 6
Wire Rope Min.: 3/8"
Wire Rope Max.: 1/2"
Working Load Limit (Ton): 3.25
A (in.): 12.75
B (in.): 5.75
C (in.): 6.5
D (in.): 2.5
E (in.): 2.75
F (in.): 2.5
G (in.): 4.75
H (in.): 1.25
J (in.): 1.38
Price:$988.37
MPN: 200203
End Fittings: SWIVEL HOOK
Sheave Diameter: 6
Wire Rope Min.: 3/8"
Wire Rope Max.: 1/2"
Working Load Limit (Ton): 3.25
A (in.): 12.75
B (in.): 5.75
C (in.): 6.5
D (in.): 2.5
E (in.): 2.75
F (in.): 2.5
G (in.): 4.75
H (in.): 1.25
J (in.): 1.38
Price:$1,139.65
MPN: 200204
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 6
Wire Rope Min.: 3/8"
Wire Rope Max.: 1/2"
Working Load Limit (Ton): 3.25
A (in.): 12.75
B (in.): 5.75
C (in.): 6.5
D (in.): 2.5
E (in.): 2.75
F (in.): 2.5
G (in.): 4.75
H (in.): 1.25
J (in.): 1.38
Price:$1,085.21
MPN: 203600
End Fittings: REGULAR YOKE
Sheave Diameter: 6
Wire Rope Min.: 3/8"
Wire Rope Max.: 1/2"
Working Load Limit (Ton): 3.75
A (in.): 13.75
B (in.): 5.75
C (in.): 6.75
D (in.): 2.75
E (in.): 2.75
F (in.): 2.5
G (in.): 5
H (in.): 1.25
J (in.): 1.38
Price:$1,025.70
MPN: 203603
End Fittings: SWIVEL HOOK
Sheave Diameter: 6
Wire Rope Min.: 3/8"
Wire Rope Max.: 1/2"
Working Load Limit (Ton): 3.75
A (in.): 13.75
B (in.): 5.75
C (in.): 6.75
D (in.): 2.75
E (in.): 2.75
F (in.): 2.5
G (in.): 5
H (in.): 1.25
J (in.): 1.38
Price:$1,288.94
MPN: 203604
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 6
Wire Rope Min.: 3/8"
Wire Rope Max.: 1/2"
Working Load Limit (Ton): 3.75
A (in.): 13.75
B (in.): 5.75
C (in.): 6.75
D (in.): 2.75
E (in.): 2.75
F (in.): 2.5
G (in.): 5
H (in.): 1.25
J (in.): 1.38
Price:$1,286.15
MPN: 204800
End Fittings: REGULAR YOKE
Sheave Diameter: 8
Wire Rope Min.: 3/8"
Wire Rope Max.: 1/2"
Working Load Limit (Ton): 3.75
A (in.): 16.5
B (in.): 5.5
C (in.): 8.5
D (in.): 2.75
E (in.): 2.75
F (in.): 2.5
G (in.): 5.25
H (in.): 1.25
J (in.): 1.38
Price:$1,197.02
MPN: 204803
End Fittings: SWIVEL HOOK
Sheave Diameter: 8
Wire Rope Min.: 3/8"
Wire Rope Max.: 1/2"
Working Load Limit (Ton): 3.75
A (in.): 16.5
B (in.): 5.5
C (in.): 8.5
D (in.): 2.75
E (in.): 2.75
F (in.): 2.5
G (in.): 5.25
H (in.): 1.25
J (in.): 1.38
Price:$1,397.49
MPN: 204804
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 8
Wire Rope Min.: 3/8"
Wire Rope Max.: 1/2"
Working Load Limit (Ton): 3.75
A (in.): 16.5
B (in.): 5.5
C (in.): 8.5
D (in.): 2.75
E (in.): 2.75
F (in.): 2.5
G (in.): 5.25
H (in.): 1.25
J (in.): 1.38
Price:$1,380.62
