Skookum Ropemaster Half Sided Blocks

  • Work-hardening manganese steel sheave maximize wire rope & sheave life.
  • Alloy steel sheaves are used on lightweight models 513A & 515A.
  • Equipped with tapered roller bearings for long life in higher line speed applications.
  • Recessed sheave design prevents wire rope from binding between sheave and block side.
  • Half side design for strength with minimized weight.
  • Versatile draw pin allow for rapid reeving & exchange of attaching style.
  • Rugged cast alloy steel sides for demanding environments.
  • ASME B30.26-1 compliant

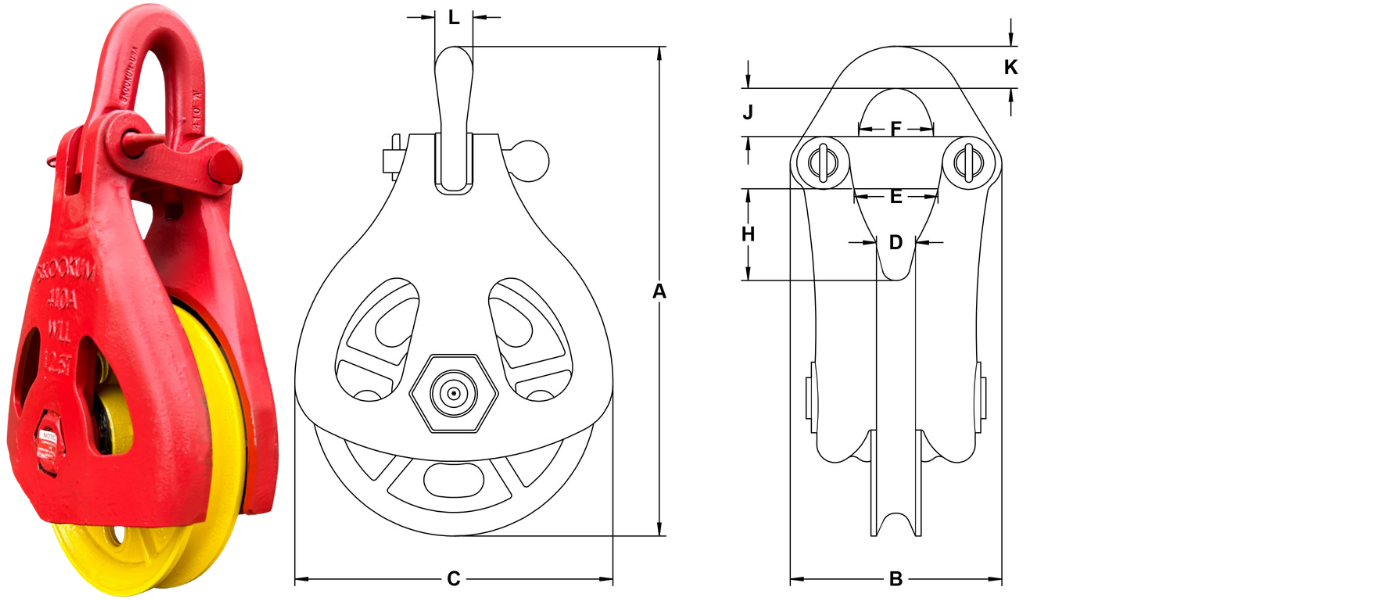

MPN End Fittings Sheave Diameter Wire Rope Min. Wire Rope Max. Working Load Limit (Ton) A (in.) B (in.) C (in.) D (in.) E (in.) F (in.) Throat Height H (in.) J (in.) K (in.) L (in.) Price Quantity
206400 REGULAR YOKE 10" 3/4" 7/8" 15 18 7 10.5 2 2.63 2.63 - 2.37 3 1.58 1.63 $2,089.47
206401 SWIVEL HOOK 10" 3/4" 7/8" 15 18 7 10.5 2 2.63 2.63 - 2.37 3 1.58 1.63 $2,590.05
206402 SWIVEL SHACKLE 10" 3/4" 7/8" 15 18 7 10.5 2 2.63 2.63 - 2.37 3 1.58 1.63 $2,734.42
206800 REGULAR YOKE 12" 3/4" 7/8" 15 20.5 6 13.5 2 2.75 2.75 - 2.88 3 1.58 1.63 $2,389.06
206801 SWIVEL HOOK 12" 3/4" 7/8" 15 20.5 6 13.5 2 2.75 2.75 - 2.88 3 1.58 1.63 $2,833.81
206802 SWIVEL SHACKLE 12" 3/4" 7/8" 15 20.5 6 13.5 2 2.75 2.75 - 2.88 3 1.58 1.63 $3,034.68
210001 REGULAR YOKE 13" 3/4" 7/8" 15 21.5 6 13.5 2 2.75 2.75 7.25 2.88 2.25 1.5 1.63 $1,976.19
210002 SWIVEL SHACKLE 13" 3/4" 7/8" 15 21.5 6 13.5 2 2.75 2.75 7.25 2.88 2.25 1.5 1.63 $2,572.49
210201 REGULAR YOKE 15" 7/8" 1" 15 24.25 6 15.5 2.38 3 3 7.63 3.25 2.25 1.5 1.63 $2,241.58
210202 SWIVEL SHACKLE 15" 7/8" 1" 15 24.25 6 15.5 2.38 3 3 7.63 3.25 2.25 1.5 1.63 $2,740.58
205600 REGULAR YOKE 6" 3/8" 1/2" 6.25 11.5 5.68 6.56 1.25 2.43 - 5 - - 1.09 1.25 $1,168.43
205602 SWIVEL HOOK 6" 3/8" 1/2" 6.25 11.5 5.68 6.56 1.25 2.43 - 5 - - 1.09 1.25 $1,448.78
205601 SWIVEL SHACKLE 6" 3/8" 1/2" 6.25 11.5 5.68 6.56 1.25 2.43 - 5 - - 1.09 1.25 $1,353.92
205800A REGULAR YOKE 8" 1/2" 5/8" 6.25 13.94 5.75 8.75 1.25 2.56 2.25 - 2.13 1.32 1.09 1.25 $1,489.03
205801A SWIVEL HOOK 8" 1/2" 5/8" 6.25 13.94 5.75 8.75 1.25 2.56 2.25 - 2.13 1.32 1.09 1.25 $1,759.60
205802A SWIVEL SHACKLE 8" 1/2" 5/8" 6.25 13.94 5.75 8.75 1.25 2.56 2.25 - 2.13 1.32 1.09 1.25 $1,637.97
206000A REGULAR YOKE 10" 1/2" 5/8" 8 17.38 5.75 10.5 1.38 2.56 2.56 - 3.25 2.5 1.25 1.25 $1,695.58
206001A SWIVEL HOOK 10" 1/2" 5/8" 8 17.38 5.75 10.5 1.38 2.56 2.56 - 3.25 2.5 1.25 1.25 $1,943.20
206002A SWIVEL SHACKLE 10" 1/2" 5/8" 8 17.38 5.75 10.5 1.38 2.56 2.56 - 3.25 2.5 1.25 1.25 $1,943.59

Products

MPN: 206400
End Fittings: REGULAR YOKE
Sheave Diameter: 10"
Wire Rope Min.: 3/4"
Wire Rope Max.: 7/8"
Working Load Limit (Ton): 15
A (in.): 18
B (in.): 7
C (in.): 10.5
D (in.): 2
E (in.): 2.63
F (in.): 2.63
Throat Height: -
H (in.): 2.37
J (in.): 3
K (in.): 1.58
L (in.): 1.63
Price:$2,089.47
MPN: 206401
End Fittings: SWIVEL HOOK
Sheave Diameter: 10"
Wire Rope Min.: 3/4"
Wire Rope Max.: 7/8"
Working Load Limit (Ton): 15
A (in.): 18
B (in.): 7
C (in.): 10.5
D (in.): 2
E (in.): 2.63
F (in.): 2.63
Throat Height: -
H (in.): 2.37
J (in.): 3
K (in.): 1.58
L (in.): 1.63
Price:$2,590.05
MPN: 206402
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 10"
Wire Rope Min.: 3/4"
Wire Rope Max.: 7/8"
Working Load Limit (Ton): 15
A (in.): 18
B (in.): 7
C (in.): 10.5
D (in.): 2
E (in.): 2.63
F (in.): 2.63
Throat Height: -
H (in.): 2.37
J (in.): 3
K (in.): 1.58
L (in.): 1.63
Price:$2,734.42
MPN: 206800
End Fittings: REGULAR YOKE
Sheave Diameter: 12"
Wire Rope Min.: 3/4"
Wire Rope Max.: 7/8"
Working Load Limit (Ton): 15
A (in.): 20.5
B (in.): 6
C (in.): 13.5
D (in.): 2
E (in.): 2.75
F (in.): 2.75
Throat Height: -
H (in.): 2.88
J (in.): 3
K (in.): 1.58
L (in.): 1.63
Price:$2,389.06
MPN: 206801
End Fittings: SWIVEL HOOK
Sheave Diameter: 12"
Wire Rope Min.: 3/4"
Wire Rope Max.: 7/8"
Working Load Limit (Ton): 15
A (in.): 20.5
B (in.): 6
C (in.): 13.5
D (in.): 2
E (in.): 2.75
F (in.): 2.75
Throat Height: -
H (in.): 2.88
J (in.): 3
K (in.): 1.58
L (in.): 1.63
Price:$2,833.81
MPN: 206802
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 12"
Wire Rope Min.: 3/4"
Wire Rope Max.: 7/8"
Working Load Limit (Ton): 15
A (in.): 20.5
B (in.): 6
C (in.): 13.5
D (in.): 2
E (in.): 2.75
F (in.): 2.75
Throat Height: -
H (in.): 2.88
J (in.): 3
K (in.): 1.58
L (in.): 1.63
Price:$3,034.68
MPN: 210001
End Fittings: REGULAR YOKE
Sheave Diameter: 13"
Wire Rope Min.: 3/4"
Wire Rope Max.: 7/8"
Working Load Limit (Ton): 15
A (in.): 21.5
B (in.): 6
C (in.): 13.5
D (in.): 2
E (in.): 2.75
F (in.): 2.75
Throat Height: 7.25
H (in.): 2.88
J (in.): 2.25
K (in.): 1.5
L (in.): 1.63
Price:$1,976.19
MPN: 210002
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 13"
Wire Rope Min.: 3/4"
Wire Rope Max.: 7/8"
Working Load Limit (Ton): 15
A (in.): 21.5
B (in.): 6
C (in.): 13.5
D (in.): 2
E (in.): 2.75
F (in.): 2.75
Throat Height: 7.25
H (in.): 2.88
J (in.): 2.25
K (in.): 1.5
L (in.): 1.63
Price:$2,572.49
MPN: 210201
End Fittings: REGULAR YOKE
Sheave Diameter: 15"
Wire Rope Min.: 7/8"
Wire Rope Max.: 1"
Working Load Limit (Ton): 15
A (in.): 24.25
B (in.): 6
C (in.): 15.5
D (in.): 2.38
E (in.): 3
F (in.): 3
Throat Height: 7.63
H (in.): 3.25
J (in.): 2.25
K (in.): 1.5
L (in.): 1.63
Price:$2,241.58
MPN: 210202
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 15"
Wire Rope Min.: 7/8"
Wire Rope Max.: 1"
Working Load Limit (Ton): 15
A (in.): 24.25
B (in.): 6
C (in.): 15.5
D (in.): 2.38
E (in.): 3
F (in.): 3
Throat Height: 7.63
H (in.): 3.25
J (in.): 2.25
K (in.): 1.5
L (in.): 1.63
Price:$2,740.58
MPN: 205600
End Fittings: REGULAR YOKE
Sheave Diameter: 6"
Wire Rope Min.: 3/8"
Wire Rope Max.: 1/2"
Working Load Limit (Ton): 6.25
A (in.): 11.5
B (in.): 5.68
C (in.): 6.56
D (in.): 1.25
E (in.): 2.43
F (in.): -
Throat Height: 5
H (in.): -
J (in.): -
K (in.): 1.09
L (in.): 1.25
Price:$1,168.43
MPN: 205602
End Fittings: SWIVEL HOOK
Sheave Diameter: 6"
Wire Rope Min.: 3/8"
Wire Rope Max.: 1/2"
Working Load Limit (Ton): 6.25
A (in.): 11.5
B (in.): 5.68
C (in.): 6.56
D (in.): 1.25
E (in.): 2.43
F (in.): -
Throat Height: 5
H (in.): -
J (in.): -
K (in.): 1.09
L (in.): 1.25
Price:$1,448.78
MPN: 205601
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 6"
Wire Rope Min.: 3/8"
Wire Rope Max.: 1/2"
Working Load Limit (Ton): 6.25
A (in.): 11.5
B (in.): 5.68
C (in.): 6.56
D (in.): 1.25
E (in.): 2.43
F (in.): -
Throat Height: 5
H (in.): -
J (in.): -
K (in.): 1.09
L (in.): 1.25
Price:$1,353.92
MPN: 205800A
End Fittings: REGULAR YOKE
Sheave Diameter: 8"
Wire Rope Min.: 1/2"
Wire Rope Max.: 5/8"
Working Load Limit (Ton): 6.25
A (in.): 13.94
B (in.): 5.75
C (in.): 8.75
D (in.): 1.25
E (in.): 2.56
F (in.): 2.25
Throat Height: -
H (in.): 2.13
J (in.): 1.32
K (in.): 1.09
L (in.): 1.25
Price:$1,489.03
MPN: 205801A
End Fittings: SWIVEL HOOK
Sheave Diameter: 8"
Wire Rope Min.: 1/2"
Wire Rope Max.: 5/8"
Working Load Limit (Ton): 6.25
A (in.): 13.94
B (in.): 5.75
C (in.): 8.75
D (in.): 1.25
E (in.): 2.56
F (in.): 2.25
Throat Height: -
H (in.): 2.13
J (in.): 1.32
K (in.): 1.09
L (in.): 1.25
Price:$1,759.60
MPN: 205802A
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 8"
Wire Rope Min.: 1/2"
Wire Rope Max.: 5/8"
Working Load Limit (Ton): 6.25
A (in.): 13.94
B (in.): 5.75
C (in.): 8.75
D (in.): 1.25
E (in.): 2.56
F (in.): 2.25
Throat Height: -
H (in.): 2.13
J (in.): 1.32
K (in.): 1.09
L (in.): 1.25
Price:$1,637.97
MPN: 206000A
End Fittings: REGULAR YOKE
Sheave Diameter: 10"
Wire Rope Min.: 1/2"
Wire Rope Max.: 5/8"
Working Load Limit (Ton): 8
A (in.): 17.38
B (in.): 5.75
C (in.): 10.5
D (in.): 1.38
E (in.): 2.56
F (in.): 2.56
Throat Height: -
H (in.): 3.25
J (in.): 2.5
K (in.): 1.25
L (in.): 1.25
Price:$1,695.58
MPN: 206001A
End Fittings: SWIVEL HOOK
Sheave Diameter: 10"
Wire Rope Min.: 1/2"
Wire Rope Max.: 5/8"
Working Load Limit (Ton): 8
A (in.): 17.38
B (in.): 5.75
C (in.): 10.5
D (in.): 1.38
E (in.): 2.56
F (in.): 2.56
Throat Height: -
H (in.): 3.25
J (in.): 2.5
K (in.): 1.25
L (in.): 1.25
Price:$1,943.20
MPN: 206002A
End Fittings: SWIVEL SHACKLE
Sheave Diameter: 10"
Wire Rope Min.: 1/2"
Wire Rope Max.: 5/8"
Working Load Limit (Ton): 8
A (in.): 17.38
B (in.): 5.75
C (in.): 10.5
D (in.): 1.38
E (in.): 2.56
F (in.): 2.56
Throat Height: -
H (in.): 3.25
J (in.): 2.5
K (in.): 1.25
L (in.): 1.25
Price:$1,943.59
