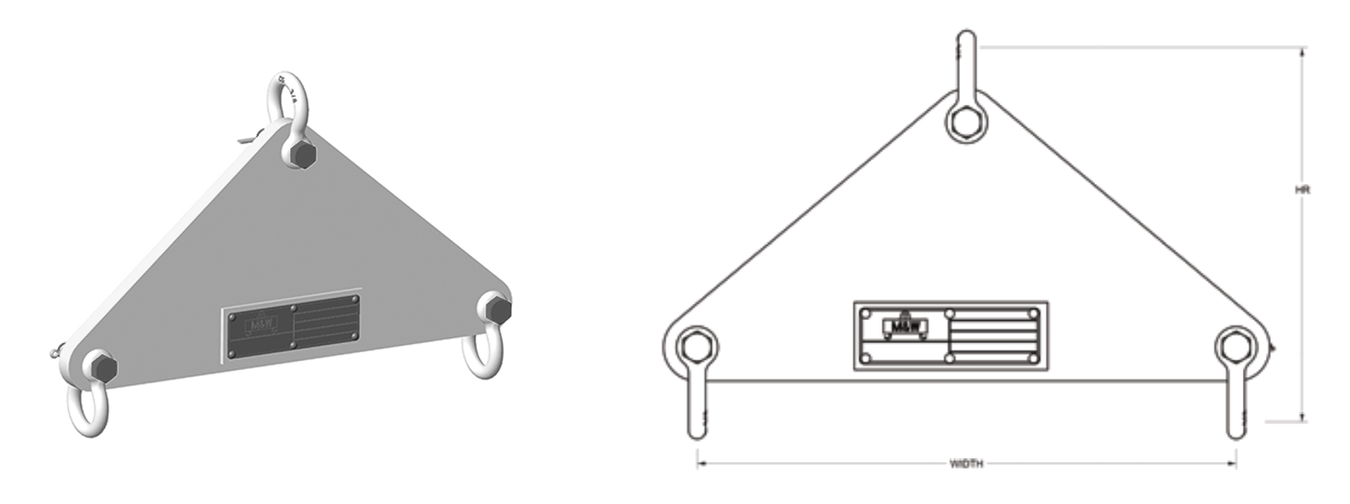

Small Length Lift Beams – Shackle Top

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Lifting Beams proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to warehouse use.
  • Made in U.S.A.
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.
  • Supplied with shackles.
WLL MPN Top Headroom (in) Width (in) Weight (lbs) Bottom Shackle Size Top Shackle Size Price Quantity
500 20358 Shackle 8.3 12 9 3/8” 3/8” $413.83
500 20359 Shackle 8.3 24 16 3/8” 3/8” $482.80
500 20360 Shackle 8.3 36 22 3/8” 3/8” $579.36
2,000 20361 Shackle 12.4 12 19 5/8” 5/8” $786.28
2,000 20362 Shackle 12.4 24 33 5/8” 5/8” $938.02
2,000 20363 Shackle 12.4 36 46 5/8” 5/8” $1,103.55
6,000 20364 Shackle 14.1 12 32 3/4” 3/4” $1,117.35
6,000 20365 Shackle 14.1 24 54 3/4” 3/4” $1,338.06
6,000 20366 Shackle 14.1 36 73 3/4” 3/4” $1,420.82
10,000 24047 Shackle 17 12 40 3/4" 7/8" $853.94
10,000 24048 Shackle 17 24 62 3/4" 7/8" $1,011.59
10,000 24049 Shackle 17 36 86 3/4" 7/8" $1,142.96
20,000 20367 Shackle 21.2 24 107 7/8” 1 1/4" $2,386.43
20,000 20368 Shackle 21.2 36 145 7/8” 1 1/4" $3,283.07
40,000 24050 Shackle 32 24 271 1 1/4" 1 3/4" $3,993.81
40,000 24051 Shackle 32 36 346 1 1/4" 1 3/4" $4,624.41
80,000 24052 Shackle 42 24 585 1 3/4" 2 1/2" $6,135.22
80,000 24053 Shackle 42 36 725 1 3/4" 2 1/2" $7,023.32

Products

WLL: 500
MPN: 20358
Top: Shackle
Headroom (in): 8.3
Width (in): 12
Weight (lbs): 9
Bottom Shackle Size: 3/8”
Top Shackle Size: 3/8”
Price:$413.83
WLL: 500
MPN: 20359
Top: Shackle
Headroom (in): 8.3
Width (in): 24
Weight (lbs): 16
Bottom Shackle Size: 3/8”
Top Shackle Size: 3/8”
Price:$482.80
WLL: 500
MPN: 20360
Top: Shackle
Headroom (in): 8.3
Width (in): 36
Weight (lbs): 22
Bottom Shackle Size: 3/8”
Top Shackle Size: 3/8”
Price:$579.36
WLL: 2,000
MPN: 20361
Top: Shackle
Headroom (in): 12.4
Width (in): 12
Weight (lbs): 19
Bottom Shackle Size: 5/8”
Top Shackle Size: 5/8”
Price:$786.28
WLL: 2,000
MPN: 20362
Top: Shackle
Headroom (in): 12.4
Width (in): 24
Weight (lbs): 33
Bottom Shackle Size: 5/8”
Top Shackle Size: 5/8”
Price:$938.02
WLL: 2,000
MPN: 20363
Top: Shackle
Headroom (in): 12.4
Width (in): 36
Weight (lbs): 46
Bottom Shackle Size: 5/8”
Top Shackle Size: 5/8”
Price:$1,103.55
WLL: 6,000
MPN: 20364
Top: Shackle
Headroom (in): 14.1
Width (in): 12
Weight (lbs): 32
Bottom Shackle Size: 3/4”
Top Shackle Size: 3/4”
Price:$1,117.35
WLL: 6,000
MPN: 20365
Top: Shackle
Headroom (in): 14.1
Width (in): 24
Weight (lbs): 54
Bottom Shackle Size: 3/4”
Top Shackle Size: 3/4”
Price:$1,338.06
WLL: 6,000
MPN: 20366
Top: Shackle
Headroom (in): 14.1
Width (in): 36
Weight (lbs): 73
Bottom Shackle Size: 3/4”
Top Shackle Size: 3/4”
Price:$1,420.82
WLL: 20,000
MPN: 20367
Top: Shackle
Headroom (in): 21.2
Width (in): 24
Weight (lbs): 107
Bottom Shackle Size: 7/8”
Top Shackle Size: 1 1/4"
Price:$2,386.43
WLL: 20,000
MPN: 20368
Top: Shackle
Headroom (in): 21.2
Width (in): 36
Weight (lbs): 145
Bottom Shackle Size: 7/8”
Top Shackle Size: 1 1/4"
Price:$3,283.07
WLL: 40,000
MPN: 24050
Top: Shackle
Headroom (in): 32
Width (in): 24
Weight (lbs): 271
Bottom Shackle Size: 1 1/4"
Top Shackle Size: 1 3/4"
Price:$3,993.81
WLL: 40,000
MPN: 24051
Top: Shackle
Headroom (in): 32
Width (in): 36
Weight (lbs): 346
Bottom Shackle Size: 1 1/4"
Top Shackle Size: 1 3/4"
Price:$4,624.41
WLL: 80,000
MPN: 24052
Top: Shackle
Headroom (in): 42
Width (in): 24
Weight (lbs): 585
Bottom Shackle Size: 1 3/4"
Top Shackle Size: 2 1/2"
Price:$6,135.22
WLL: 80,000
MPN: 24053
Top: Shackle
Headroom (in): 42
Width (in): 36
Weight (lbs): 725
Bottom Shackle Size: 1 3/4"
Top Shackle Size: 2 1/2"
Price:$7,023.32
