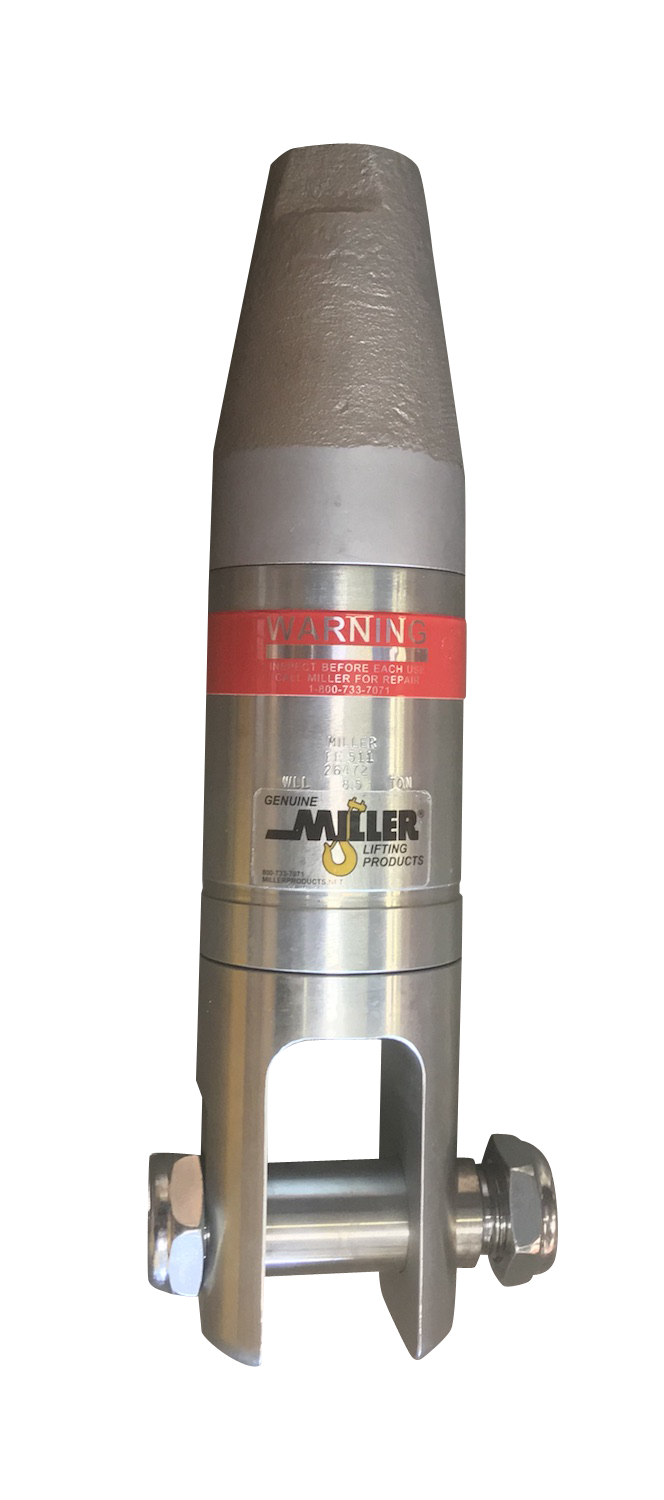

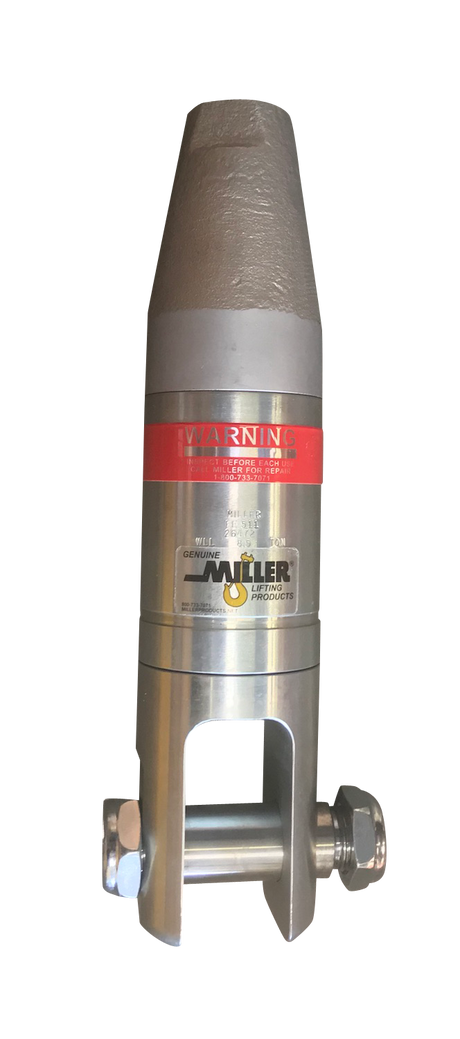

Socket to Clevis – Type 511

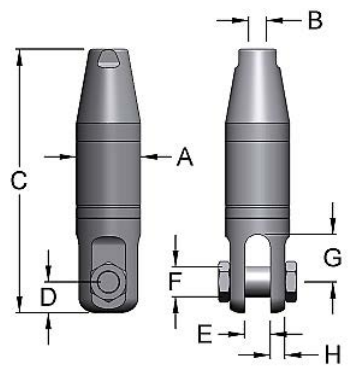

Working Load Limit (ton)	MPN	Rope Size	A	B	C	D	E	F	G	H	Weight (lbs)	Price	Quantity
Miller Angular Contact Ball Bearing Swivel Model D-511 Socket to Jaw WLL 5 tons	5	D-511	5/8	2.5	0.69	10.44	1.13	1	0.88	1.56	0.56	8.68	$1,209.60

Miller Angular Contact Ball Bearing Swivel Model EE-511 Socket to Jaw WLL 8.5 tons	8.5	EE-511	3/4	2.88	0.81	12.75	1.34	1.56	1.19	2.09	0.53	14.5	$1,512.00

Miller Angular Contact Ball Bearing Swivel Model G-511 Socket to Jaw WLL 10 tons	10	G-511	7/8	4	0.97	16.25	1.75	1.75	1.5	3.5	0.81	33	$2,825.55

Miller Angular Contact Ball Bearing Swivel Model GG-511 Socket to Jaw WLL 15 tons	15	GG-511	1	4	1.13	16.25	1.75	1.75	1.5	3.5	0.81	33	$2,891.70

Miller Angular Contact Ball Bearing Swivel Model H-511 Socket to Jaw WLL 25 tons	25	H-511	1 1/4	5	1.38	20.19	2.38	2	2	3.69	1.13	74	$5,424.30

Miller Angular Contact Ball Bearing Swivel Model HH-511 Socket to Jaw WLL 35 tons	35	HH-511	1 1/2	5	1.63	20.19	2.38	2	2	3.69	1.13	74	$6,208.65

Products

Working Load Limit (ton): 5

MPN: D-511

Rope Size: 5/8

A: 2.5

B: 0.69

C: 10.44

D: 1.13

E: 1

F: 0.88

G: 1.56

H: 0.56

Weight (lbs): 8.68

Price:$1,209.60

Working Load Limit (ton): 8.5

MPN: EE-511

Rope Size: 3/4

A: 2.88

B: 0.81

C: 12.75

D: 1.34

E: 1.56

F: 1.19

G: 2.09

H: 0.53

Weight (lbs): 14.5

Price:$1,512.00

Working Load Limit (ton): 10

MPN: G-511

Rope Size: 7/8

A: 4

B: 0.97

C: 16.25

D: 1.75

E: 1.75

F: 1.5

G: 3.5

H: 0.81

Weight (lbs): 33

Price:$2,825.55

Working Load Limit (ton): 15

MPN: GG-511

Rope Size: 1

A: 4

B: 1.13

C: 16.25

D: 1.75

E: 1.75

F: 1.5

G: 3.5

H: 0.81

Weight (lbs): 33

Price:$2,891.70

Working Load Limit (ton): 25

MPN: H-511

Rope Size: 1 1/4

A: 5

B: 1.38

C: 20.19

D: 2.38

E: 2

F: 2

G: 3.69

H: 1.13

Weight (lbs): 74

Price:$5,424.30

Working Load Limit (ton): 35

MPN: HH-511

Rope Size: 1 1/2

A: 5

B: 1.63

C: 20.19

D: 2.38

E: 2

F: 2

G: 3.69

H: 1.13

Weight (lbs): 74

Price:$6,208.65
